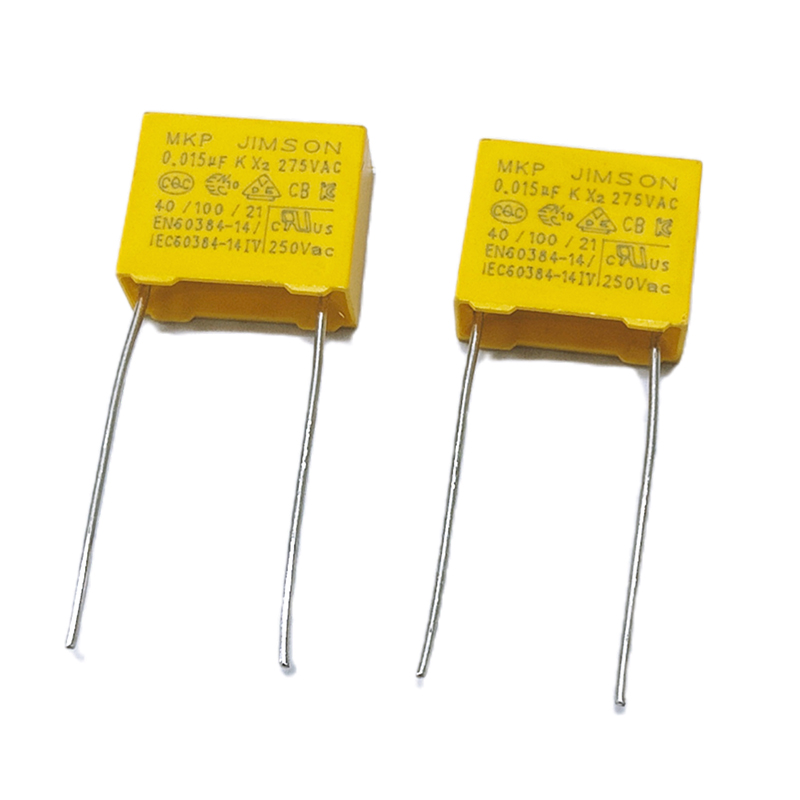

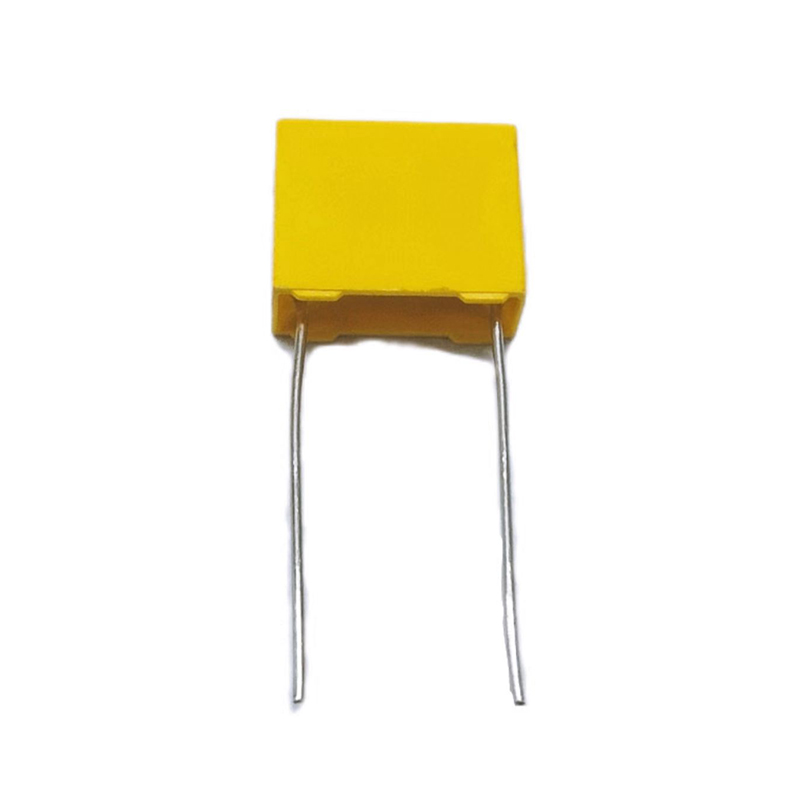

Alternator Suppression Capacitor

Feature of suppression capacitors

1.Capacitor capacity range from 0.001uF to 1.0uF.
2.Operating temperature: -40℃~110℃.
3.Storage temperature: 15℃~35℃.
4.Can withstand overpressure shocks.
5.Flame retardant resin (UL94V-0).

Application of suppression capacitors

1.Antenna coupling and line-by-pass
2.All-around spark killer
3. The FMI filter
4. Power supply switching

Specifications:

Dielectric: Polypropylene film

Capacitance versus rated voltage:

0.001µF-4.7µF/275VAC (50/60Hz)

0.001µF-4.7µF/310VAC (50/60Hz), (UL)

Capacitance tolerance: M ±20% K ± 10% J ± 5%

Dissipation factor (tangent of loss): ≤0.1％ (at 20℃ , 1KHz)

Voltage-proof:

4.3*UR Unit VDC (1minute at 20℃ )

Insulation resistance:

C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)

The difference between MPK and CBB capacitors

(1).Difference in use :

MKP suppression capacitors is mainly used for EMI inlet filtering, CBB capacitor is mainly used for oscillation, coupling, resistive voltage reduction and other circuits; CBB22 cost is lower than MKP, and it can replace MKP in electrical performance under the condition of meeting the actual DC withstand voltage.

The nominal rated voltage of MKP capacitor is 250/275VAC (x2), but its DC withstand voltage should reach 2000VDC2S; while CBB22 capacitor withstand voltage standard is only 1.6 times rated voltage, etc.

(2).Performance differences between MPK capacitors and CBB capacitors

The more obvious difference between these two types of capacitors is the way they are encapsulated, in which MKP capacitors are encapsulated in a box structure, so their sealing and flame retardancy are better. However, with the advancement of technology nowadays, many CBB suppression capacitors are encapsulated with immersion, so the sealing performance is also better.

For the internal electrical structure, CBB capacitor manufacturers choose aluminum or zinc-aluminum film. CBB capacitors made with zinc-aluminum film are similar to MKP capacitors in terms of electrical performance, as they have high voltage resistance and can withstand DC pressure.

Suppression capacitors Manufacturers

We are a professional suppression capacitors manufacturer and solution provider. Our capacitors are mainly used in photovoltaic new energy, inverter, energy storage, IGBT absorption capacitors, mobile energy storage power, high frequency audio, filter resonance, security/fire equipment, ships, communications, home appliances, automotive charging pile, automotive new energy capacitors.
