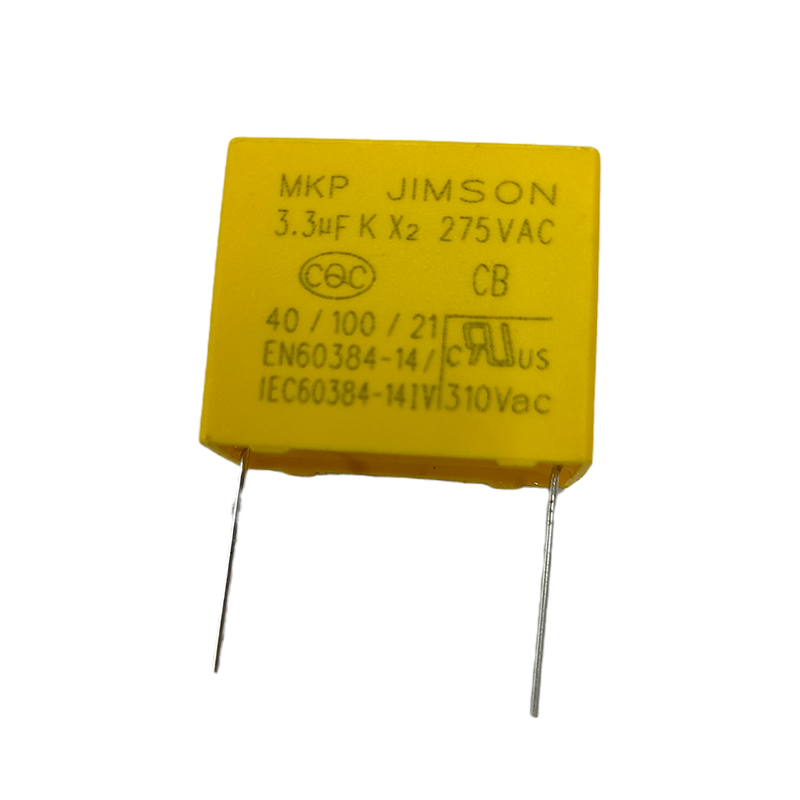

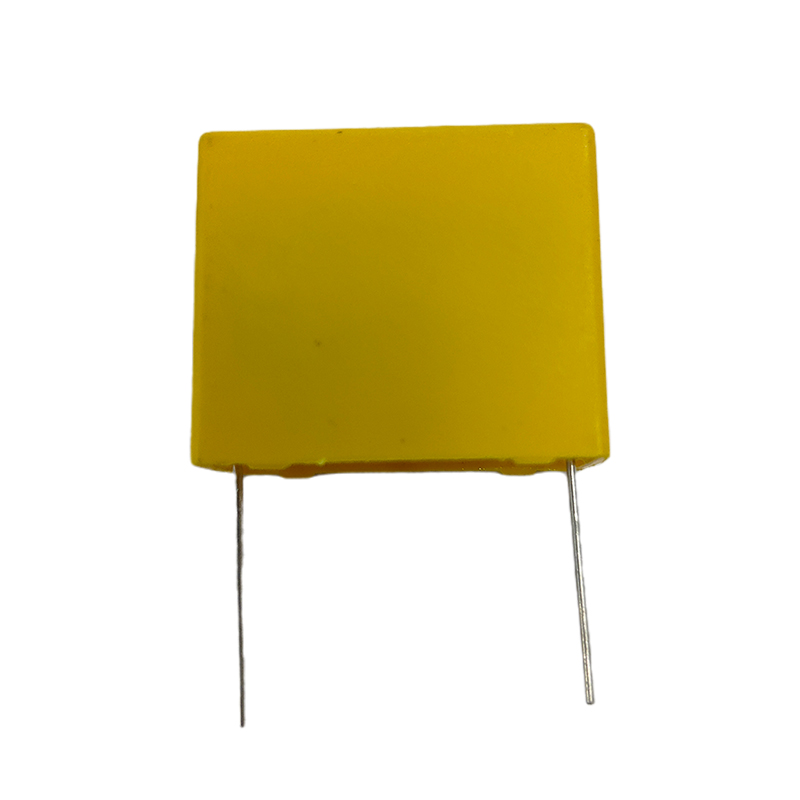

Induction Suppression Capacitor

We are looking for bulk enquiries for Metallized Polypropylene Capacitor, MKP Series X2 capacitors etc. Metalized Capacitors are available with different values of general and value ratings. They are used for DC pulsation, pulse, and AC voltage reduction in household electrical appliances.

Category Suppression capacitors Related Products Polypropylene Film Capacitors,Radio Interference Suppression X2 Capacitor Manufacturers,Suppression X2 Capacitors,High Stability Polypropylene Capacitors,MKP335K(X2 Class)

Product Description

Adding a basic film capacitor (induction suppression capacitor) in parallel with the load typically solves the issue. This capacitor’s job is to inhibit high voltages produced by inductive loads from reaching the relay contacts by absorbing them. The lifespan of the relay will also be shortened without this capacitor. Induction may be so bad that it electrically disrupts our controllers’ microprocessor logic, leading relay banks to abruptly shut down or freeze. Customers may suffer a loss of communication in the case of USB relay boards until the device is reconnected to the USB port or even until the power supply is reset. The electrical connection schematic is shown below.

Product Fetures:

Box type provides the identical outer appearance
Very low loss at high frequency, suitable for high current.
High insulation resistance, long life due to self-healing effect.
Withstanding 2.5Kv impulse voltage, Class X2
As an across-the-line type noise suppression capacitor, and suitable for AC purpose

Application

1.Line-by-pass and Antenna coupling
2.Across-the-line, spark killer
3. FMI filter
4. Switching power supply

Features & Applications

Metallized polypropylene structure

Withstanding overvoltage stressing,

With UL94 V-0 level,

Flame resistant,

Widely used in across-the-line, interference

suppression circuit, etc.

Technical Specifications

Climatic conditions -40–+100℃

Rated Voltage 275VAC,305VAC,310VAC

Capacitance Range 0.01uF—0.47uF

Capacitance Tolerance (±5%);(±10%)

Withstand voltage Interelectrode: 4.3UR 2S Polar shell: 2000VAC 2S ≤0.3µF ≥30000MΩ

Insulation resistance or time constant:>0.3µF ≥10000S(MΩ.µF)

Steady state damp-heat temperature: 40±2℃ no visible damage, clear mark
Humidity: 93%RH duration: 21 days capacitance: delta C/C≤5% IR: ≥ 50% of rating

Durability +100℃, 1000h
Voltage applied: 1.25 × rated voltage applied per hour
1000 v for 0.1 s
Capacitance: C/C≤10%
Insulation resistance IR: ≥ 50% of rated value
