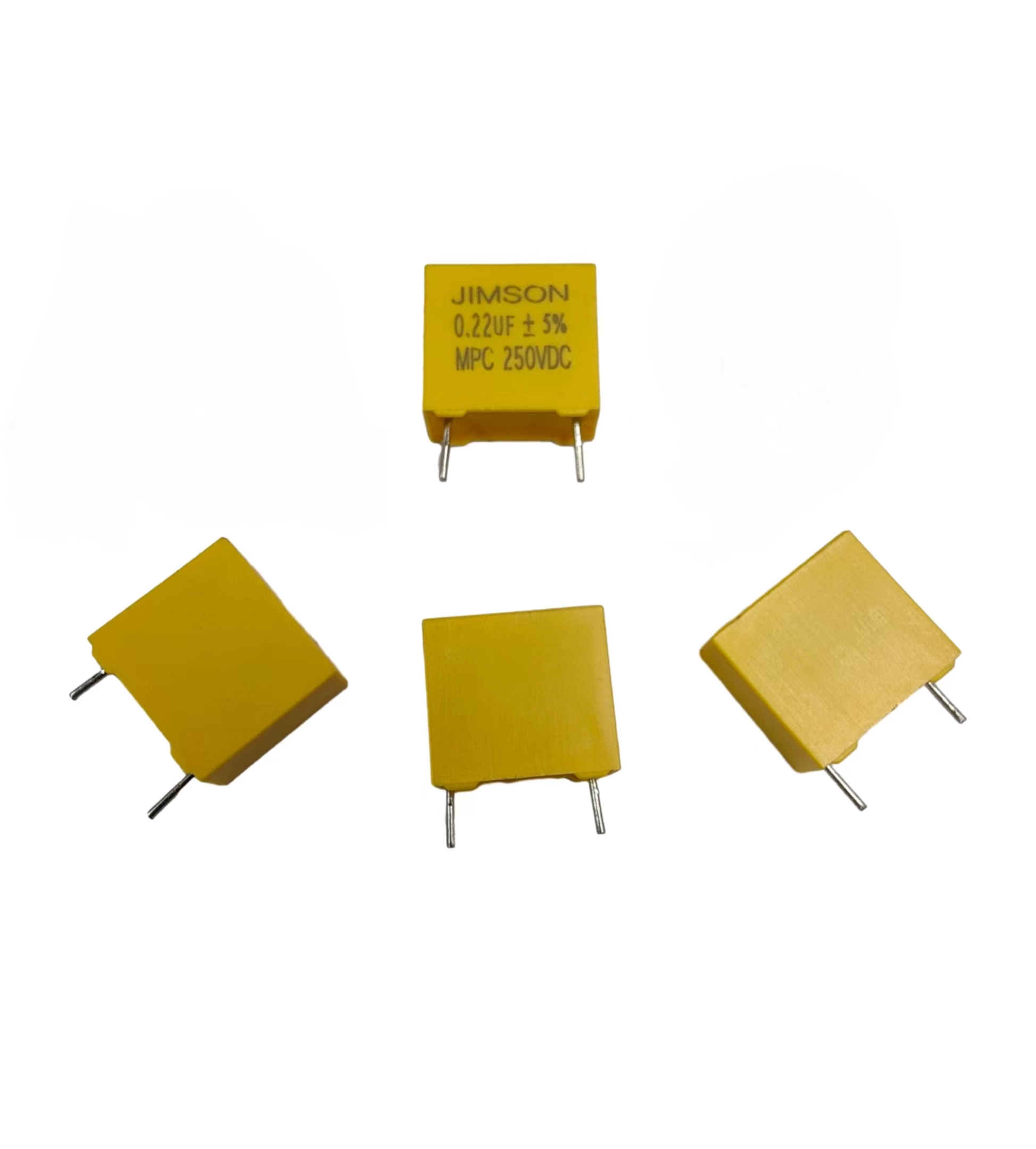

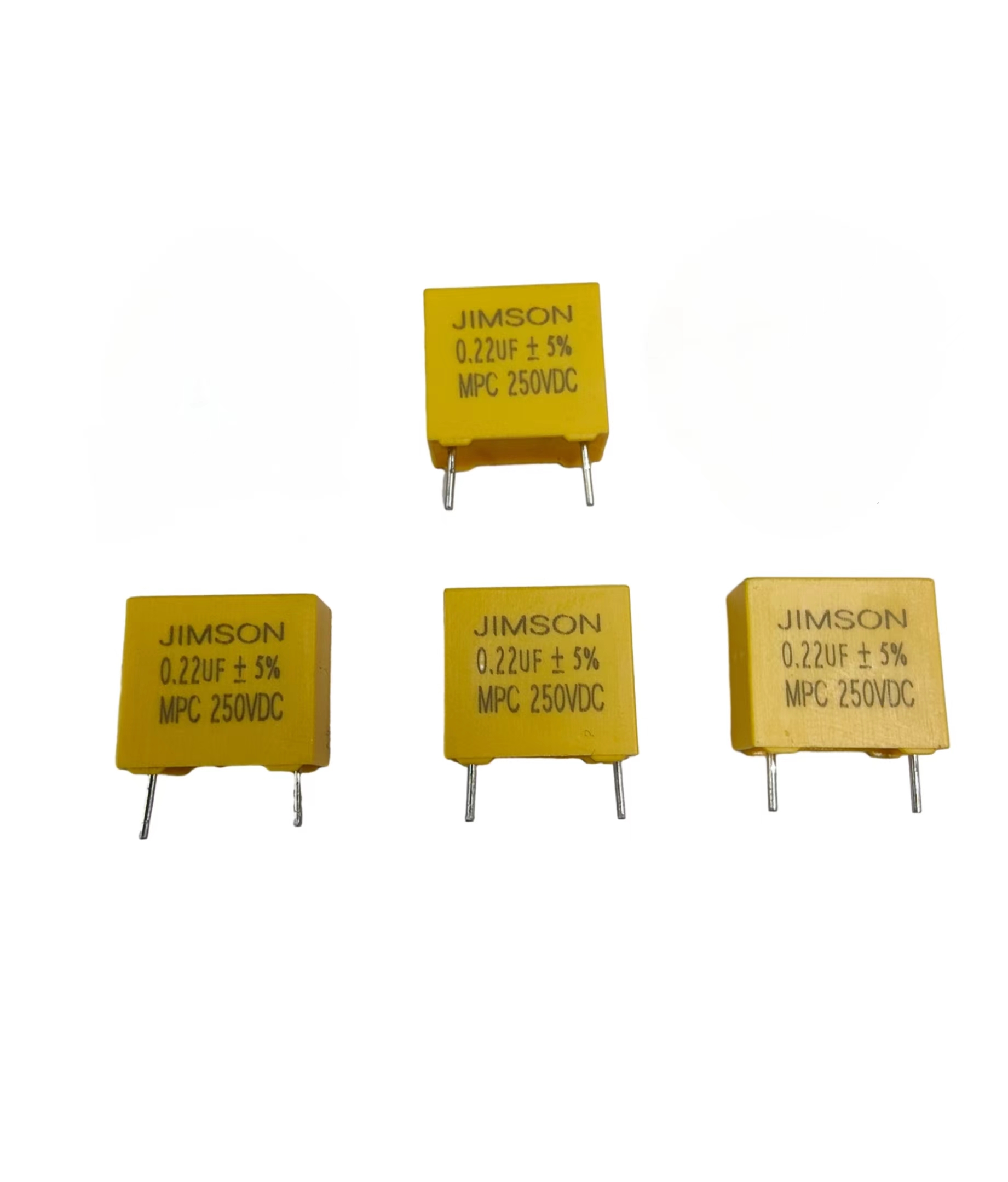

0.22uF Cutting CBB23 Film Capacitor for Fan Motors

The 0.22uF Cutting CBB23 Film Capacitor emerges as a crucial component in the intricate world of electronic devices, particularly in fan motors. The 0.22uF Cutting CBB23 Film Capacitor’s precise capacitance, combined with the cutting-edge CBB23 film technology, makes it a reliable and versatile choice for a variety of applications. As we navigate the ever-evolving landscape of technology, capacitors, with their diverse applications and nuanced engineering, remain fundamental to the seamless functioning of our electronic devices. The 0.22uF capacitor, with its role in fan motors, exemplifies the meticulous craftsmanship that underlies the gadgets we depend on daily. It stands as a testament to the precision and innovation that define the realm of electronic components, silently powering the devices that keep our environments cool and comfortable

Categories Metallized Polypropylene Capacitors, Polypropylene capacitors

Product Description

0.22uF Cutting CBB23 Film Capacitor Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal or Aluminum foil
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Axial leads of tinned wire
Reference standard	IEC 384-16; GB 10190-1988
Climatic catalogue	40/85/21
Capacitance versus rated voltage (UR)	0.001 µF-2.2 µF/100VDC 0.001 µF-2.2 µF/250VDC 0.001 µF-2.2 µF/400VDC 0.001 µF-2.2 µF/630VDC
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	1.6*UR Unit:VDC (5s at 20°C)
Insulation resistance	C≤0.33µF, IR≥30000MΩ, C>0.33µF, IR*C≥5,000s (1 minute at 20°C and R≤65%)
Endurance	1000 hours with 125% of rated voltage at 85°C. After the test: ΔC/C ≤5%; ΔDF ≤0.40%, IR ≥50% of the specified value (20°C, 1kHz)

Role of the 0.22uF Cutting CBB23 Film Capacitor in Fan Motors:

Fan motors, found in a myriad of applications from household appliances to industrial machinery, rely on capacitors for smooth operation and efficiency. The 0.22uF Cutting CBB23 Film Capacitor plays a crucial role in enhancing the performance of fan motors in several ways:

1. Starting Mechanism: In fan motors, especially those with induction motors, capacitors like the 0.22uF serve as starting capacitors. They provide the initial electrical surge needed to kickstart the rotation of the motor, ensuring a smooth and timely start.

2. Phase Shifting: Fan motors often operate on single-phase AC power. Capacitors introduce a phase shift between the current and voltage waveforms, creating a rotating magnetic field in the motor. This phase shift is essential for generating torque and initiating rotation.

3. Running Capacitor: Once the fan motor is in motion, the 0.22uF capacitor transitions into a running capacitor. It continues to provide the necessary phase shift, contributing to the motor’s efficiency, stability, and consistent speed.

4. Power Factor Correction: Capacitors in fan motors play a role in power factor correction. They optimize the power consumption of the motor, ensuring that the electrical power drawn is efficiently utilized, leading to energy savings.

Applications Beyond Fan Motors:

While the 0.22uF Cutting CBB23 Film Capacitor finds its primary application in fan motors, its versatility extends to various other electronic devices and industries:

1. Air Conditioners: Similar to fan motors, air conditioner compressors utilize capacitors for starting and running mechanisms. The 0.22uF capacitor’s specifications make it suitable for these applications, contributing to efficient cooling.

2. Refrigerators: Capacitors are employed in refrigerator compressors to assist in starting and running functions. The 0.22uF capacitor’s precise capacitance is well-suited for maintaining optimal temperatures in refrigeration systems.

3. Pumps and Motors: Electric motors in pumps and various industrial applications often utilize capacitors for starting and running purposes. The 0.22uF capacitor’s characteristics make it applicable in a range of motor-driven devices.

4. Power Tools: Capacitors with similar specifications find their place in power tools, contributing to the efficient operation of electric motors. The 0.22uF capacitor ensures reliability in various power tool applications.

Challenges and Innovations in Capacitor Technology:

Despite the progress in capacitor technology, challenges persist, driving ongoing innovations:

1. Miniaturization Challenges: As electronic devices continue to shrink in size, there’s a constant need to develop capacitors that maintain performance while being compact enough to fit within limited spaces.

2. Higher Capacitance Requirements: Emerging technologies often demand capacitors with higher capacitance values. Researchers are exploring new materials and designs to meet the increasing capacitance requirements of modern electronic devices.

3. Temperature Stability: Capacitors must maintain stable performance across a range of temperatures. Innovations focus on developing capacitors that can withstand extreme temperature conditions without compromising functionality.

4. Eco-Friendly Capacitors: The push for sustainability in electronics has led to the development of environmentally friendly or “green” capacitors. Manufacturers are exploring eco-friendly materials and manufacturing processes to reduce the environmental impact of capacitors.

Practical Considerations for Capacitor Selection:

When selecting capacitors for electronic devices, engineers and designers must consider various factors to ensure optimal performance and reliability:

1. Capacitance Value: The capacitance value, in this case, 0.22uF, should be selected based on the specific requirements of the motor or electronic circuit. Different applications may demand different capacitance values for efficient operation.

2. Voltage Rating: The capacitor’s voltage rating should exceed the maximum voltage expected in the circuit to ensure safety and reliable operation.

3. CBB23 Film: The use of Cutting CBB23 Film ensures the capacitor’s durability and stability. This film type, made of metallized polypropylene, is known for its excellent electrical properties.

4. Temperature Stability: Capacitors in fan motors may be exposed to varying temperatures. The selected capacitor should exhibit stability across the expected temperature range to ensure consistent performance.
