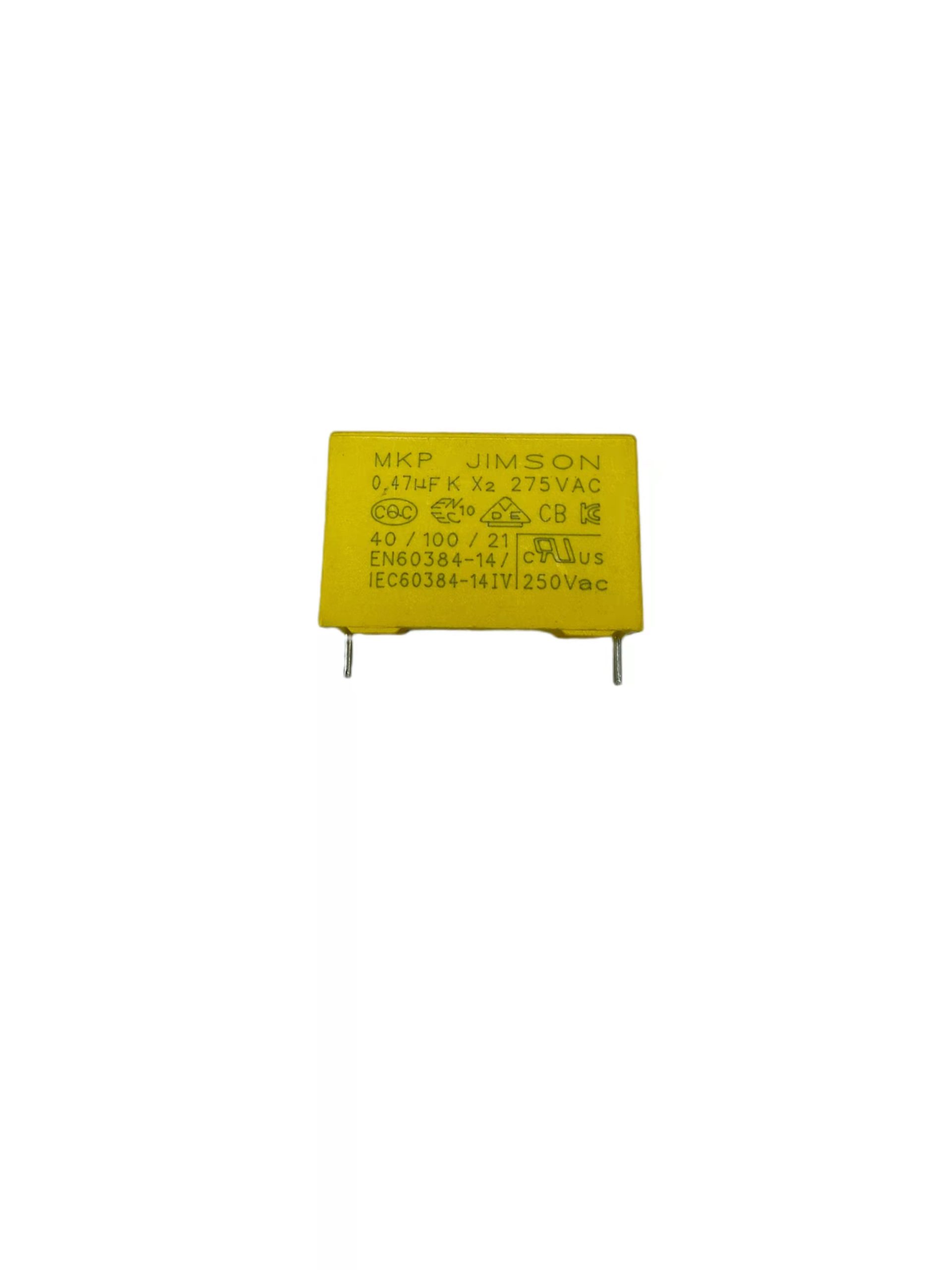

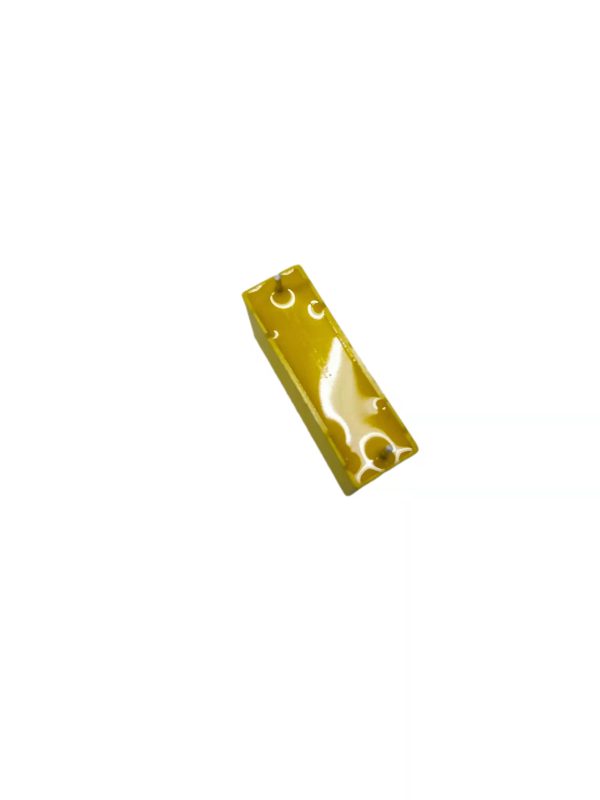

0.47uF X2 Capacitor for Illumination Plate

Illuminating the Future with the 0.47uF X2 Capacitor

The 0.47uF X2 capacitor plays a vital role in ensuring the smooth and reliable operation of illumination systems. With its capacitance, voltage rating, and safety certifications, this capacitor is well-suited for a wide range of lighting applications, from residential and commercial lighting to automotive and industrial illumination. By stabilizing voltage, filtering out noise, and improving power factor, the 0.47uF X2 capacitor helps to enhance the quality, efficiency, and longevity of illumination systems, contributing to a brighter and more energy-efficient future.

Categories Metallized Polypropylene Capacitors, Suppression capacitors Tags Metallized Polypropylene Film Capacitor, Noise Suppression X2 Capacitor Manufacturers

Product Description

0.47uF X2 Capacitor for Illumination Plate Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Radial leads of tinned wire/ insulation flexible wire
Reference standard	IEC 60384-14 (3nd Edition,2005) UL1414,UL1283, GB/T 14472-1998,EN60384-14
Climatic catalogue	40/100/21 (GMF)
Capacitance versus rated voltage (UR)	0.001µF-2.2µF/275VAC (50/60Hz) 0.001µF-4.7µF/310VAC (50/60Hz), (UL)
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	4.3*UR Unit VDC (1minute at 20℃ )
Insulation resistance	C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)
Endurance:	The test voltage 125% shall be applied for 1000 hours in the 100 ℃ chamber.Each of these voltage shall be applied to each capacitor individually through a resistor of 47Ω±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test： △ C/C ≤ 10%; IR ≥ 50% of the specified value; △ DF ≤ 0.8%(C ≤ 1µF); △ DF ≤ 0.5%(C ＞ 1µF); (at 20 ℃ 1KHz)

In the realm of lighting technology, capacitors play a crucial role in ensuring smooth and reliable operation. The 0.47uF X2 capacitor, specifically designed for use in illumination plates, is a key component in achieving optimal performance and efficiency. From stabilizing voltage to filtering out unwanted noise, this capacitor is instrumental in enhancing the quality of illumination while extending the lifespan of lighting systems.

The understanding of 0.47uF X2 Capacitors

Capacitors are passive electronic components that store and release electrical energy. They consist of two conductive plates separated by a dielectric material, which prevents direct electrical contact between the plates while allowing the passage of an electric field. This construction enables capacitors to store energy in the form of an electrostatic field and release it when needed.

The types of Capacitor

Capacitors come in various types, each with its own unique characteristics and applications. The 0.47uF X2 capacitor belongs to the X2 class, which is specifically designed for use in AC circuits. These capacitors are known for their reliability, safety, and ability to withstand high-voltage transients.

Capacitance and Voltage Rating

The capacitance of a capacitor, measured in farads (F), determines its ability to store electrical energy. The 0.47uF capacitor has a capacitance of 0.47 microfarads (uF), making it suitable for filtering out high-frequency noise and stabilizing voltage fluctuations in illumination circuits. Additionally, capacitors are rated for maximum voltage, indicating the highest voltage they can safely handle. The voltage rating of the 0.47uF X2 capacitor ensures its compatibility with illumination systems operating at various voltage levels.

The Applications of the 0.47uF X2 Capacitor in Illumination Plates

1.Voltage Stabilization

In illumination systems, voltage stability is essential for maintaining consistent light output and preventing flickering or dimming. The 0.47uF X2 capacitor helps stabilize voltage fluctuations by storing and releasing electrical energy as needed, ensuring smooth and uniform illumination.

2.Noise Filtering

Electrical noise, such as electromagnetic interference (EMI) and radio frequency interference (RFI), can degrade the performance of illumination systems and cause undesirable flickering or interference. The 0.47uF X2 capacitor filters out high-frequency noise, ensuring clean and clear illumination without disturbances.

3.Power Factor Correction

Improving power factor is crucial for maximizing energy efficiency in illumination systems. The 0.47uF X2 capacitor can be used in power factor correction circuits to improve the efficiency of lighting systems, reducing energy consumption and lowering operational costs.
