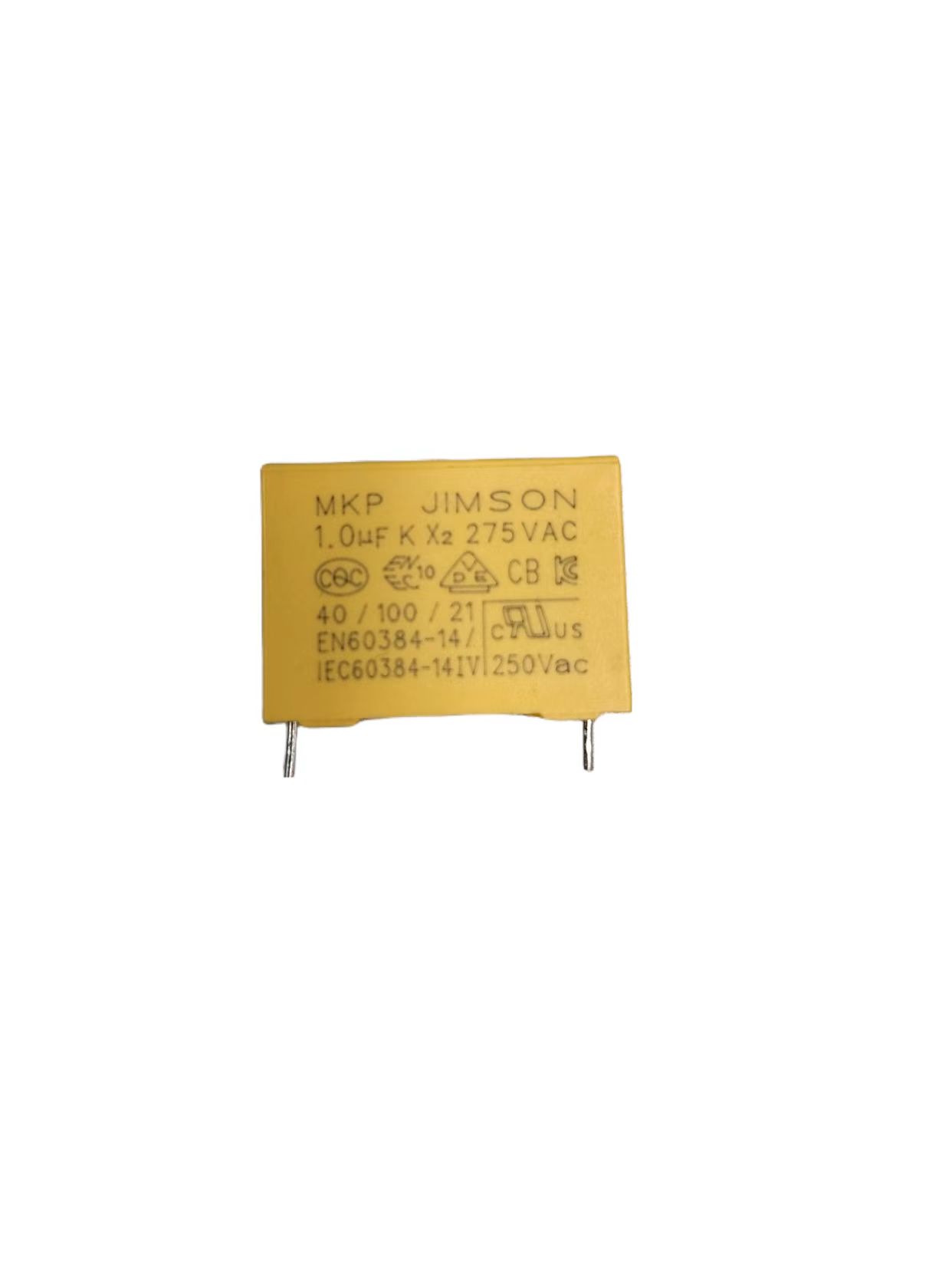

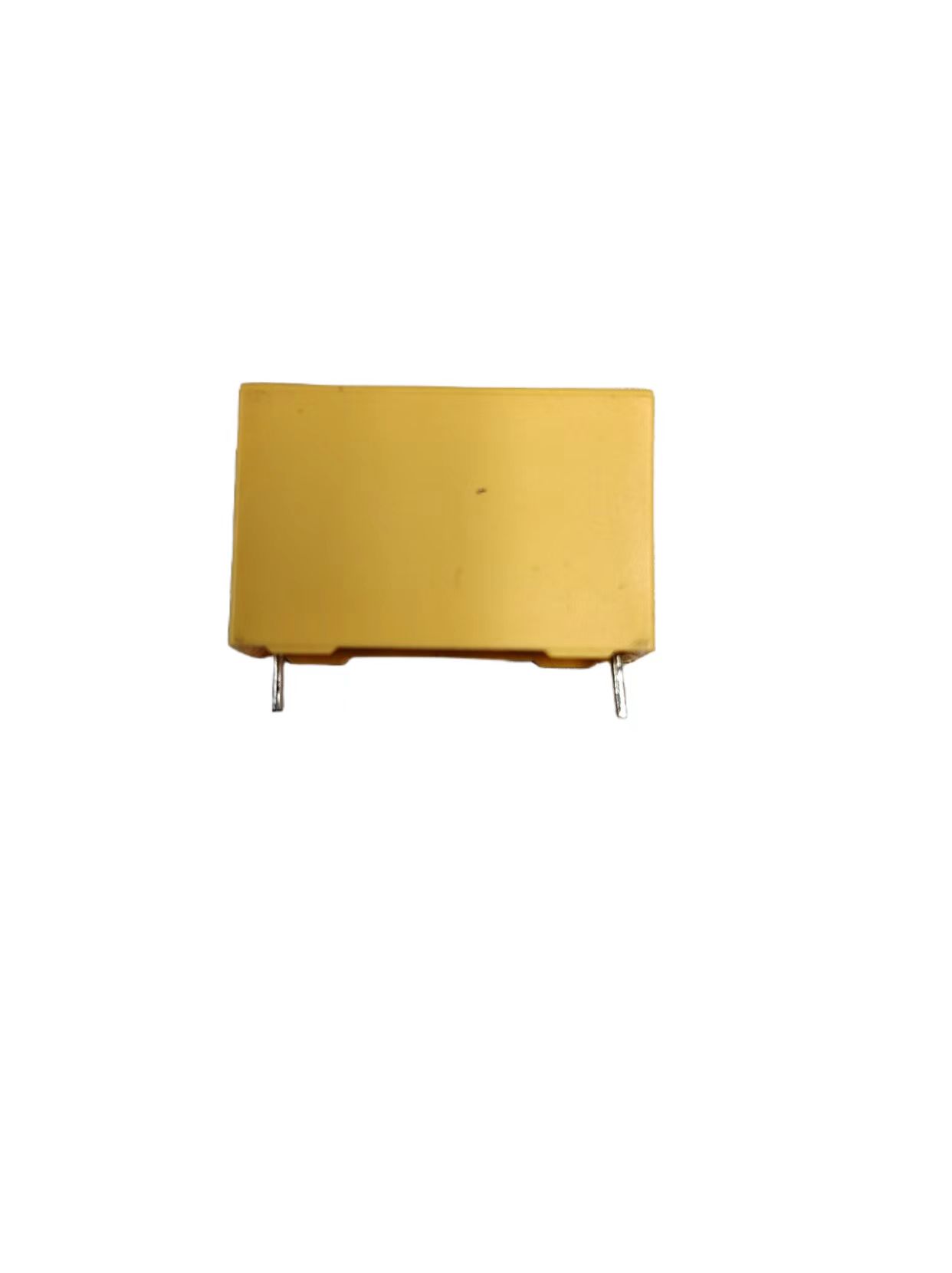

1.0uF X2 Capacitor Cut Pins for Household Appliance Components

The 1.0uF X2 capacitor with cut pins is a vital component in household appliances, contributing to their efficiency, reliability, and safety. With its ability to suppress EMI, stabilize voltage, and enhance safety, this capacitor ensures smooth and trouble-free operation of appliances, providing comfort and convenience to users. As technology continues to advance and household appliances become increasingly sophisticated, the demand for high-quality capacitors with cut pins will only grow, making them indispensable components in the modern home. With their reliability, durability, and performance-enhancing capabilities, 1.0uF X2 capacitors with cut pins are poised to play a key role in shaping the future of household appliance technology.

Category Suppression capacitors Tags Encased Polypropylene Film Capacitors, Metallized Polypropylene Film Capacitor

Product Description

1.0uF X2 Capacitor Cut Pins for Household Appliance Components Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Radial leads of tinned wire/ insulation flexible wire
Reference standard	IEC 60384-14 (3nd Edition,2005) UL1414,UL1283, GB/T 14472-1998,EN60384-14
Climatic catalogue	40/100/21 (GMF)
Capacitance versus rated voltage (UR)	0.001µF-2.2µF/275VAC (50/60Hz) 0.001µF-4.7µF/310VAC (50/60Hz), (UL)
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	4.3*UR Unit VDC (1minute at 20℃ )
Insulation resistance	C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)
Endurance:	The test voltage 125% shall be applied for 1000 hours in the 100 ℃ chamber.Each of these voltage shall be applied to each capacitor individually through a resistor of 47Ω±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test： △ C/C ≤ 10%; IR ≥ 50% of the specified value; △ DF ≤ 0.8%(C ≤ 1µF); △ DF ≤ 0.5%(C ＞ 1µF); (at 20 ℃ 1KHz)

In the realm of household appliances, ensuring optimal performance and safety is paramount. The 1.0uF X2 capacitor, equipped with cut pins, emerges as a critical component in achieving these goals.

1.0uF X2 CapacitorCapacitors are essential passive electronic components used in electrical circuits to store and release electrical energy. They consist of two conductive plates separated by an insulating material known as a dielectric. When a voltage is applied across the plates, an electric field is created, allowing the capacitor to store energy in the form of an electric field.

Capacitor Types

Capacitors come in various types, each with its own unique characteristics and applications. The 1.0uF X2 capacitor, equipped with cut pins, belongs to the X2 class, specifically designed for use in AC circuits. These capacitors are capable of withstanding high-voltage transients and are commonly used in household appliances to ensure safety and reliability.

Capacitance

The 1.0uF X2 capacitor with cut pins has a capacitance of 1.0 microfarads (uF), which determines its ability to store electrical energy. This capacitance value is ideal for filtering out high-frequency noise and stabilizing voltage fluctuations in household appliance circuits, ensuring smooth and reliable operation.

Voltage Rating

With a voltage rating suitable for household appliance applications, the 1.0uF X2 capacitor can safely handle the voltage levels commonly encountered in domestic electrical systems. This voltage rating ensures the capacitor’s durability and reliability, even in environments with fluctuating voltage conditions.

Cut Pins

The cut pins on the 1.0uF X2 capacitor are designed for easy installation and integration into household appliance components. These cut pins simplify the assembly process and ensure a secure and stable connection, reducing the risk of loose connections or damage to the capacitor during installation.

Suppressing Electromagnetic Interference (EMI)

Household appliances, such as washing machines, refrigerators, and air conditioners, generate electromagnetic interference (EMI) that can interfere with other electronic devices and disrupt their operation. The 1.0uF X2 capacitor with cut pins helps suppress EMI by filtering out high-frequency noise, ensuring that household appliances operate smoothly and without interference.

Stabilizing Voltage

Voltage fluctuations in household electrical systems can damage sensitive electronic components and compromise the performance of appliances. The 1.0uF X2 capacitor with cut pins stabilizes voltage by storing and releasing electrical energy as needed, ensuring a consistent and reliable power supply to household appliances.

Enhancing Safety

Safety is paramount in household appliances, and the 1.0uF X2 capacitor with cut pins plays a crucial role in ensuring safe operation. By suppressing EMI and stabilizing voltage, this capacitor helps prevent electrical malfunctions, fires, and other safety hazards, providing peace of mind to homeowners and users.
