Working Standard
Common usage of this capacitor in electrical equipment includes Its great dependability, outstanding electrical performance, and broad application areas have made it a key part in many circuit designs. Film capacitors‘ fundamental working concept is based on dielectric material characteristics, so charges are held by sandwiching dielectrics between two conductors. The operating concept, structural features, and significant function of film capacitors in many applications will be introduced in this paper in great depth.

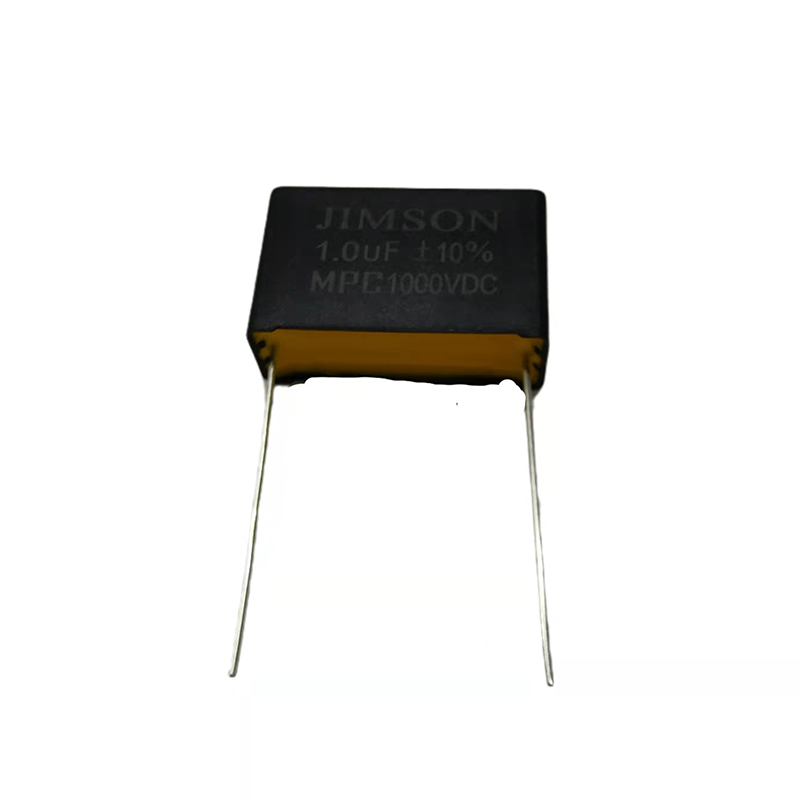

Foundation Structure
Two conducting electrodes and a dielectric film sandwiched between them define a film capacitor. While the dielectric may be formed of a range of various polymer film materials, like polypropylene (PP), polyester (PET) or polystyrene (PS), the electrodes are typically composed of metallized films. These materials fit many application situations and have distinct electrical characteristics.
Usually depending on their design needs, film capacitors are manufactured either in winding or stacking form. Whereas the electrodes and dielectric films in stacked capacitors are flat layered structures, in wrapped capacitors they are tightly rolled into a cylindrical form. The fundamental goal is to create a capacitive effect using dielectric characteristics regardless of the shape.
Working concept
Like other capacitors, the working idea is to hold charge by running a voltage between two conductors. Charge gathers on the two capacitor electrodes when an external voltage is supplied to them. The dielectric substance separates the positive and negative charges on the electrodes; it cannot carry electricity but rather stores electrical energy via polarization. The capacitor starts storing charge as the electric field develops until the applied voltage approaches its maximum voltage capacity.
The area of the electrodes, the distance between the electrodes, and the dielectric constant of the dielectric material define the capacitance of the film capacitor in operation. The capacitance of the capacitor increases with increasing dielectric constant of the dielectric material; its size is inversely related to the distance between the electrodes and proportionate to the electrode area. Thus, maximizing the performance of film capacitors depends mostly on selecting the appropriate dielectric material and structural design.
Self-healing qualities
Its self-healing characteristic is a big benefit. Little sparks or local breakdown might harm the dielectric layer in an operating under high voltage capacitor. But the film capacitor’s self-healing construction renders this issue irrelevant for its usual functioning. The electrode material evaporates rapidly during a breakdown in a limited region, isolating the injured area and restoring normal dielectric performance. Particularly in uses under high voltage and demanding situations, this self-healing characteristic significantly increases the life and dependability of film capacitors.
Main dielectric materials for film capacitors
Film capacitors based on polypropylene (PP)
Common dielectric material with low loss factor and high breakdown voltage is polypropylene. Widely employed in high-frequency filtering, resonant circuits, etc., it is very fit for usage in high frequency and high voltage situations.
PET, or polyester, film capacitors
Good dielectric constant and stability of polyester capacitors make them appropriate for low-cost, high-capacity uses. Audio circuits, ordinary AC and DC filtering, etc. all make frequent use of them.
Polystyrene (PS) film capacitors
Designed for high-precision filtering circuits and precision electronic equipment, polystyrene film capacitors feature extremely low dielectric absorption and excellent frequency response.
From polycarbonate
Polycarbonate film capacitors are still employed in certain particular high-temperature applications despite being progressively supplanted by polypropylene and polyester because of their outstanding temperature stability and superior electrical characteristics.
Application areas
The variety of film capacitors qualifies them for many different kinds of application situations:
Filter for power supplies
Are extensively employed in power supplies to filter out undesired high-frequency noise and guarantee the smoothness of output of power supply. Thanks to its low equivalent series resistance (ESR) and high-frequency performance, film capacitors shine in circuits like switching power supplies and inverters.
Store Energy
Particularly in cases where quick charging and discharging are needed, film capacitors may also be employed as energy storage devices. For instance, energy storage in battery systems in hybrid and electric cars depends much on film capacitors.
EMI/RFI Reduction
Reducing electromagnetic interference (EMI) and radio frequency interference (RFI) also benefit much from film capacitors. In circuits, they may efficiently filter high-frequency noise and shield electronic components from electromagnetic interference.
Harmonious Circuits
Particularly in high-frequency applications, film capacitors are also somewhat often seen in resonant circuits.Can supply exact capacitance values to guarantee the stability of the resonant frequency because of their low loss factor and great stability.
Selecting the Correct Film Capacitance
Selecting the appropriate film capacitor calls for weighing many criteria, including frequency needs, operating temperature, capacitance value, and voltage rating. To guarantee that the capacitor does not fail under overload situations, the voltage rating should be somewhat greater than the maximum operational voltage in the circuit. Furthermore taken into account should be the capacitor’s temperature range to guarantee continuous functioning in the intended running environment.
The particular application requirements determine the capacitance value to be chosen. Whereas in energy storage applications capacitors with higher capacitance should be used, in filtering applications it is vital to choose the suitable capacitance value depending on the circuit frequency.
Positive and negative aspects of film capacitors
Advantages
Low loss factor: In high-frequency applications, film capacitors show rather low loss, hence enhancing circuit efficiency.
By use of a self-healing mechanism, film capacitors may restart normal functioning upon local breakdown of the dielectric material, hence prolonging the service life.
Appropriate for usage in many environmental situations, particularly in industrial applications where high temperatures are involved, wide working temperature range.
Consumes
Large size: Generally speaking, particularly in large-capacity designs, which can restrict their usage in certain space-constrained applications, film capacitors are somewhat big.
Especially with high-performance film capacitors, film capacitors are more costly than other kinds of capacitors.
Modern electronic equipment depend on film capacitors absolutely. Their outstanding electrical characteristics, self-healing and dependable high-frequency performance, and dependability in filtering, energy storage and resonant circuits have made them a perfect option. Understanding the operating principle, dielectric material selection and application scenarios of film capacitors helps you to better pick the appropriate capacitor depending on various demands thus ensuring effective and stable functioning of the circuit.
