Reducing electromagnetic interference (EMI) and radio frequency interference (RFI) mostly depends on suppression capacitors. From domestic appliances to industrial automation tools, they are extensively used in a range of electrical devices including switching power sources. Selecting the appropriate suppression capacitor for various application situations is vital as different kinds of circuits, ambient circumstances, and interference sources call for certain kinds of capacitors to provide the optimal EMI suppressing performance.
Fundamental Purposes
Suppression capacitors’ main purpose is to absorb or bypass high-frequency interference signals via capacitance’s properties, hence lowering circuit noise. Large noise sources like high-frequency switching circuits, motors, and inverters abound in settings where these capacitors find usage. By efficiently stopping interference signals from spreading along power lines or ground lines, suppression capacitors help to safeguard other sensitive equipment.
First, one should grasp the functioning ideas and purposes of suppression capacitors before choosing them. Class X and class Y capacitors are the two often used forms of suppression capacitors. Every kind is appropriate for various application situations; however, the choice should be based on the requirements of the equipment and the features of the surroundings.
Variations among class X and class Y suppression capacitors

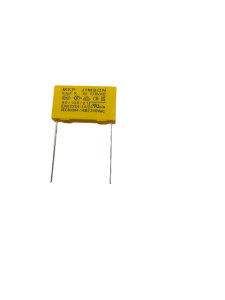

Class X reduction capacitors
Mostly used to cross across power lines (L-N), class X suppression capacitors help to eliminate common-mode interference in circuits. Usually passed over the power line, this kind of interference influences other appliances. The Class X capacitor’s purpose is to bypass these high-frequency interference signals therefore stopping them from reaching the electricity system.
Class X suppression capacitors find common usage in switching power supplies, lighting equipment, home appliances, etc., where it is required to prevent the high-frequency noise produced by the equipment from flowing back to the electrical grid.
Usually between 250V AC and 500V AC, Class X capacitors must resist higher running voltages.
Operating voltage and environmental conditions of the equipment determine the models with suitable withstand voltage and capacitance values to choose Class X capacitors. Models of common class X capacitors include X1, X2, and X3.
Class Y repression capacitors
To suppress differential mode interference, Class Y suppression capacitors bridge the ground line (L-PE or N-PE) from the power line. This kind of interference could influence other circuit components and spreads via the equipment grounding system. Class Y capacitors must satisfy rigorous safety criteria as they are directly linked to the ground line to guarantee that, should the capacitor fail, no risk exists to the users or the equipment.
Regular Uses: Particularly in cases where high-frequency noise on the ground line has to be avoided from influencing the power line, class Y capacitors are widely employed in power supply equipment, home appliances, and motor control systems.
Although class Y capacitors are often made for lower rated voltage ranges, they must have very excellent safety performance to reduce the danger of electric shock brought on by insulating failure.
Safety certifications for Class Y capacitors, including UL, VDE, and IEC, should especially be taken into consideration during choice. types of common class Y capacitors are Y1 and Y2 types.
Important factors guiding choice of suppression capacitors
Choosing appropriate suppression capacitors requires evaluating them depending on particular application situations, equipment electrical characteristics, and working environment. Here are some main choosing criteria:
Demand for voltage
One of the most crucial considerations in the choosing procedure is the suppression capacitor’s operating voltage. Class X and Class Y capacitors apply in various situations and have different rated voltages. In industrial settings or high-voltage equipment, it is essential to make sure the capacitor can resist the maximum running voltage of the machinery. Class X capacitors, for instance, are usually appropriate for power grid settings of 220V to 400V AC; Class Y capacitors are mainly utilized in low-voltage situations but need more safety insulating regulations.
Value of capacity
The major indication of the capacity of the suppression capacitor to reduce noise of many frequencies is its capacitance value. While smaller capacitance values are better suited for filtering high frequency noise, generally bigger capacitance values are appropriate for lowering lower frequency noise. The suitable capacitance value for a capacitor should be chosen in line with the noise spectrum range in the circuit. For the suppression of high frequency noise in a switching power supply, for instance, a smaller capacitance value suppression capacitor is usually needed; whereas, for low frequency interference in a motor drive circuit, a larger capacitance value suppression capacitor may be needed.
Range of temperature:
The performance and longevity of a suppression capacitor depend much on its working ambient temperature. Long-term usage may cause the capacitor to age early on and the capacitance of the capacitor may drop when the temperature increases in a high temperature environment. Selecting a suppression capacitor appropriate for the temperature range is thus rather important. Capacitors used in outdoor equipment or industrial settings should have a large working temperature range, say from -40°C to +105°C.
Rated present
Furthermore taken into account in particular application situations is the capacitor’s rated current. The suppression capacitor may particularly in high power circuits have to resist a significant current spike. Make sure the capacitor can resist the maximum working current of the device so as to prevent overcurrent-induced capacitor failure.
Safety certifications
Particularly in applications with high voltage or ground connections, the safety of suppression capacitors is crucial. Class Y capacitors, for instance, have to pass rigorous safety certifications including international norms, VDE (Europe), and UL (US). These certifications guarantee that, should the capacitor fail, neither users nor equipment would be subjected to safety concerns. Make sure a suppression capacitor satisfies the relevant safety criteria before choosing it.
Selection of suppressing capacitors for various uses
Selection of suppression capacitors in switching power supply
Usually created in switching power supply, high-frequency noise requires the use of appropriate suppression capacitors to minimize its effects on the circuit. Commonly employed at the input and output of switching power supplies, class X capacitors help to reduce high-frequency interference carried over the power supply line. Ground line noise is minimised by class Y capacitors placed between grounding systems and switching power sources.
While the capacitance value of Class Y capacitors is often lower, usually between 0.001μF and 0.01μF, Class X capacitors are normally between 0.1μF and 0.47μF recommended capacitance value for standard switching power supplies.
Suppression capacitors in switching power supplies have to follow international safety criteria, like UL, IEC or VDE certification, therefore guaranteeing that they can fail safely in the case of a failure.
Selecting a suppression capacitor for motor drives
Particularly in variable frequency motor control, running motors causes a lot of electromagnetic interference. These interference signals could compromise the regular functioning of nearby machinery and potentially lead to motor performance reduction. Appropriate suppression capacitors must be used if one wants to lower these interferences.
suggested capacitance value: Larger class X capacitors (0.47μF to 1μF) are often needed to inhibit lower frequency electromagnetic interference depending on the power and running frequency of the motor.
Demand for withstand voltage: The industrial motor driving environment has a greater voltage, and the suppressive capacitor’s required withstand voltage frequently exceeds 500V AC.
Selection of Suppression capacitors in home appliances
The primary purpose of suppression capacitors in home appliances is to lower the electromagnetic interference produced while the equipment is running, therefore avoiding these interferences from influencing other electronic devices (like TVs or audio equipment). While class Y capacitors are intended to avoid interference on the ground line, class X capacitors are often employed to remove power supply noise in home equipment.
Suggested values of capacitance: Usually between 0.1μF and 0.33μF, the capacitance value of suppression capacitors in domestic appliances determines the particular selection depending on the running voltage and current of the device.
Conditions for certification: Household appliances direct users, so suppression capacitors have to undergo rigorous safety tests including CE certification to guarantee safe usage.
Choosing suppression capacitors fit for various application situations calls for careful evaluation of elements like voltage requirements, capacitance value, temperature range, rated current, safety certification, and so on. Knowing the differences between Class X and Class Y suppression capacitors and learning their features in certain uses will enable one to choose the appropriate capacitor to guarantee that the equipment runs well while lowering the effect of electromagnetic interference.
