Suppression Capacitor

Product Introduce

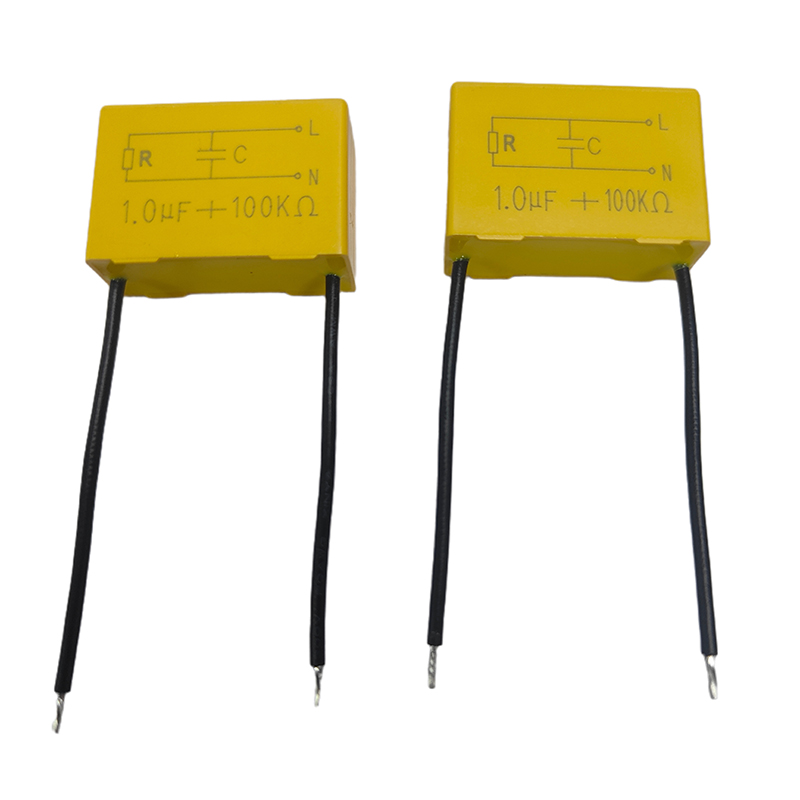

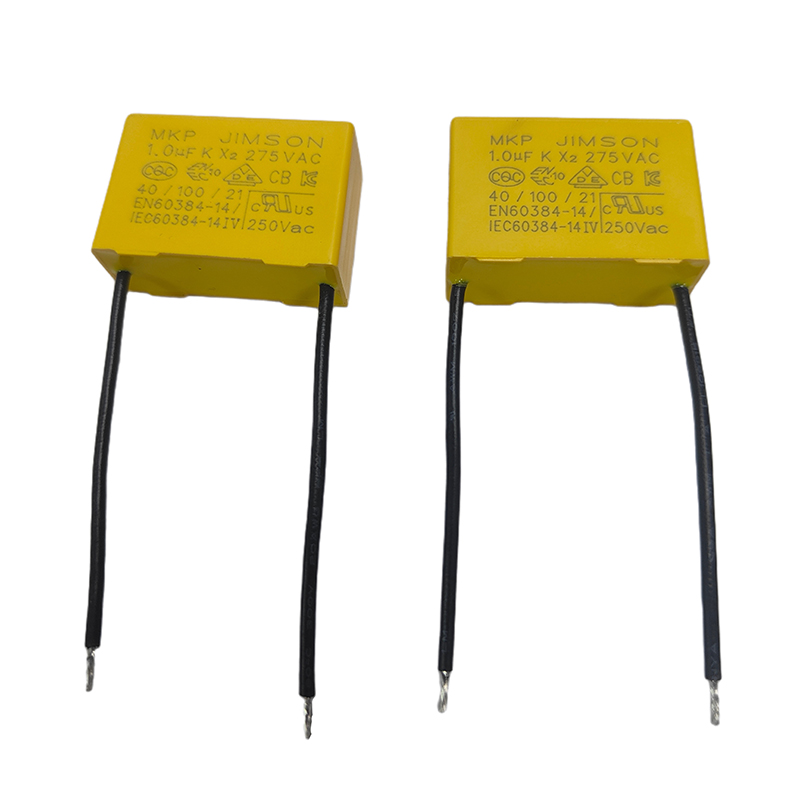

Jimson Capacitors of this MKP type are yellow. Set the multimeter to read in the high ohms region, between 10k and 1m ohms, to test the capacitor. Connect the meter leads—red to positive and black to negative—to the capacitor’s corresponding leads. The meter should begin at zero and gradually increase to infinity.

The high-frequency interference signals produced when using electrical or electronic equipment are reduced to a permitted level by interference suppression capacitors, also referred to as radio interference suppression capacitors. They safeguard devices by reducing brief line-side overvoltages (transients).

 If a run capacitor fails, the motor can display a variety of problems including not starting, overheating, and vibrating. A bad run capacitor deprives the motor of the full voltage it needs to operate correctly.

Specifications of suppression capacitors:

Dielectric: Polypropylene film

Electrodes: Vacuum evaporated metal

Coating: Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL94V-0.

Leads: Radial leads of tinned wire/ insulation flexible wire

Reference standard: IEC 60384-14 (3nd Edition,2005) UL1414,UL1283,GB/T 14472-1998,EN60384-14

Climatic catalogue: 40/100/21 (GMF)

Capacitance versus rated voltage:

0.001µF-4.7µF/275VAC (50/60Hz)

0.001µF-4.7µF/310VAC (50/60Hz), (UL)

Capacitance tolerance: M ±20% K ± 10% J ± 5%

Dissipation factor (tangent of loss): ≤0.1％ (at 20℃ , 1KHz)

Voltage-proof:

4.3*UR Unit VDC (1minute at 20℃ )

Insulation resistance:

C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)

Metallized polypropylene film capacitor manufacturers

We are committed to offer our clients a wide range of metalized capacitors, which is highly appreciated for international quality standards. These metallized apacitors are available with different values of general and value ratings and are used in the designing of various circuits of electronic and electric appliances.
This product is widely used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. It is especially suitable for various types of energy-saving lamps and electronic rectifiers.
We are looking for bulk enquiries for Metallized Polypropylene Capacitors, Metallized Polypropylene Film Capacitor, MKP Series X2 capacitors etc.
