MKP104K275V Capacitor: Professional Anti-Electromagnetic Interference

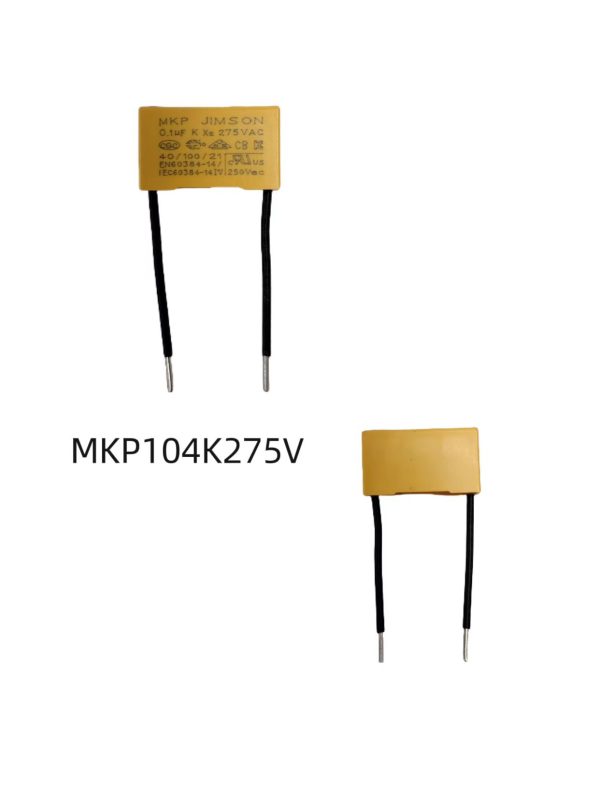

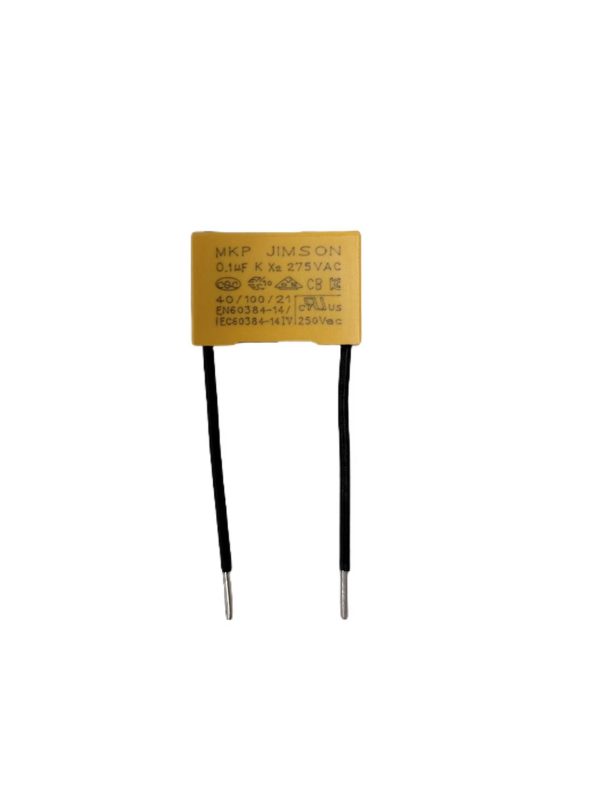

I. Overview of MKP104K275V Capacitor

The MKP104K275V capacitor, also known as a metallized polypropylene film anti-interference thin-film capacitor, is a component specifically designed for electromagnetic interference (EMI) suppression. Made with metallized polypropylene film as the dielectric and wound through a special process, it features a compact size, light weight, and compact structure. Additionally, the MKP104K275V capacitor has high insulation resistance, low loss, excellent self-healing characteristics, and superior flame retardancy, making it widely applicable in electronic devices.

II. Features and Specifications of MKP104K275V Capacitor

Features:

• High-temperature resistant casing: The MKP104K275V capacitor is encapsulated in a high-temperature resistant casing that meets the UL-120 standard, ensuring stable performance in high-temperature environments.
• Low high-frequency loss: This capacitor exhibits minimal loss in high-frequency circuits and is suitable for high-frequency, DC, AC, coupling, and pulse crossing circuits.
• Self-healing characteristics: The MKP104K275V capacitor has excellent self-healing properties, allowing the internal metallized film to automatically repair damaged parts when subjected to abnormal voltage surges, preventing short circuits or fires.
• Non-polar design: The MKP104K275V capacitor is non-polar and can be connected to circuits without considering the direction of polarity.
• High insulation resistance: The capacitor has high insulation resistance, effectively preventing current leakage and enhancing circuit stability.

•

III. Main Applications and EMI Suppression Performance of MKP104K275V Capacitor

Main Applications:

• LED Driver Capacitor: The MKP104K275V capacitor is used as a filtering capacitor in LED driver circuits, effectively suppressing power supply EMI and enhancing the brightness and stability of LED lights.
• Small Appliance Control Board: In small appliance control boards, the MKP104K275V capacitor is used for anti-interference and filtering, ensuring the normal operation and safety of small appliances.
• New Energy Charger: In new energy chargers, the MKP104K275V capacitor serves as an input filtering capacitor, filtering out high-frequency noise and interference from the power grid, protecting the internal circuits and components of the charger.
• Industrial Power Supply: In industrial power supplies, the MKP104K275V capacitor is used to suppress power supply EMI, improving the purity and stability of the power supply and ensuring the normal operation of industrial equipment.

EMI Suppression Performance: The MKP104K275V capacitor excels in EMI suppression. Firstly, its metallized polypropylene film dielectric has excellent dielectric properties that effectively suppress high-frequency electromagnetic interference. Secondly, the capacitor’s self-healing characteristics allow it to automatically repair damaged parts when subjected to abnormal voltage surges, preventing short circuits or fires, thus protecting the safety of circuits and equipment. Additionally, the MKP104K275V capacitor has high insulation resistance and low frequency loss, further enhancing the circuit’s interference suppression capabilities and stability.

In practical applications, the MKP104K275V capacitor is typically connected in series between the neutral and live wires of a circuit to form a common-mode filtering circuit. When high-frequency noise and interference from the power grid enter the circuit, the MKP104K275V capacitor can filter or suppress them, protecting the internal components and equipment from interference. At the same time, the capacitor can also withstand high voltage surges and current fluctuations, ensuring stable circuit operation in harsh environments.

IV. Application Cases of MKP104K275V Capacitor in Specific Fields

Resonant Capacitor in Induction Cookers: In induction cookers, the MKP104K275V capacitor serves as a resonant capacitor, forming an LC resonant circuit with inductive coils and other components to convert electrical energy into thermal energy. Since induction cookers generate high-frequency electromagnetic waves during operation, high-performance anti-EMI components are required to ensure circuit stability and safety. The MKP104K275V capacitor, with its excellent dielectric properties and self-healing characteristics, is widely used in induction cookers.

Filter Capacitor in Inverters: In inverters, the MKP104K275V capacitor acts as an input filter capacitor and output filter capacitor, filtering out high-frequency noise and interference from the power grid and harmonic currents generated within the inverter. This helps improve the performance and stability of the inverter while protecting the internal circuits and components from interference.

Filter Capacitor in Welding Machines: In welding machines, the MKP104K275V capacitor serves as a filtering capacitor, filtering out high-frequency noise and interference from the power grid and arc noise generated during the welding process. This helps improve the welding quality and stability of the welding machine while protecting the internal circuits and components from interference.
