Interference Suppression Film Capacitors

capacitor for interference suppression

The high-frequency interference signals produced when using electrical or electronic equipment are reduced to a permitted level by interference suppression capacitors, also referred to as radio interference suppression capacitors. They safeguard devices by reducing brief line-side overvoltages.

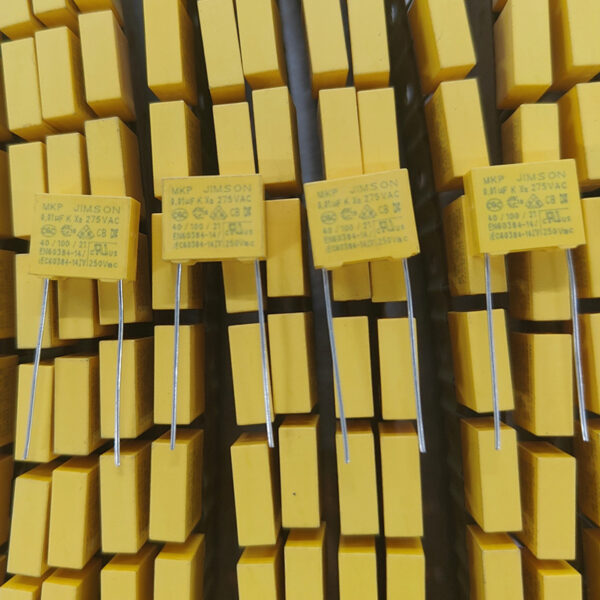

Capacitors of MKP type is yellow. The capacitance is 0.01uF, and it can real  long-term stability. It is too easy for our factory. We can finish the production in 3 days. Metalized Capacitors are available with different values of general and value ratings. They are used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. We are looking for bulk enquiries for Metallized Polypropylene Capacitor, MKP Series X2 capacitors etc.

The capacitance falls below the necessary tolerance, which causes the majority of metallized film capacitors to malfunction. This often happens after the manufacturer’s predicted lifetime has passed. The loss factor often rises in response to the decline in capacitance.

Suppression capacitors are a specialized subset of capacitors that are sold commercially and are made to remove electrical noise from electricity being provided to a circuit. They achieve this by lowering the system’s input impedance for higher frequency noise.

Specifications:

Dielectric: Polypropylene film

Electrodes: Vacuum evaporated metal

Coating: Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL94V-0.

Leads: Radial leads of tinned wire/ insulation flexible wire

Reference standard: IEC 60384-14 (3nd Edition,2005) UL1414,UL1283,GB/T 14472-1998,EN60384-14

Climatic catalogue: 40/100/21 (GMF)

Capacitance versus rated voltage:

0.001µF-4.7µF/275VAC (50/60Hz)

0.001µF-4.7µF/310VAC (50/60Hz), (UL)

Capacitance tolerance: M ±20% K ± 10% J ± 5%

Dissipation factor (tangent of loss): ≤0.1％ (at 20℃ , 1KHz)

Voltage-proof:

4.3*UR Unit VDC (1minute at 20℃ )

Insulation resistance:

C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)
