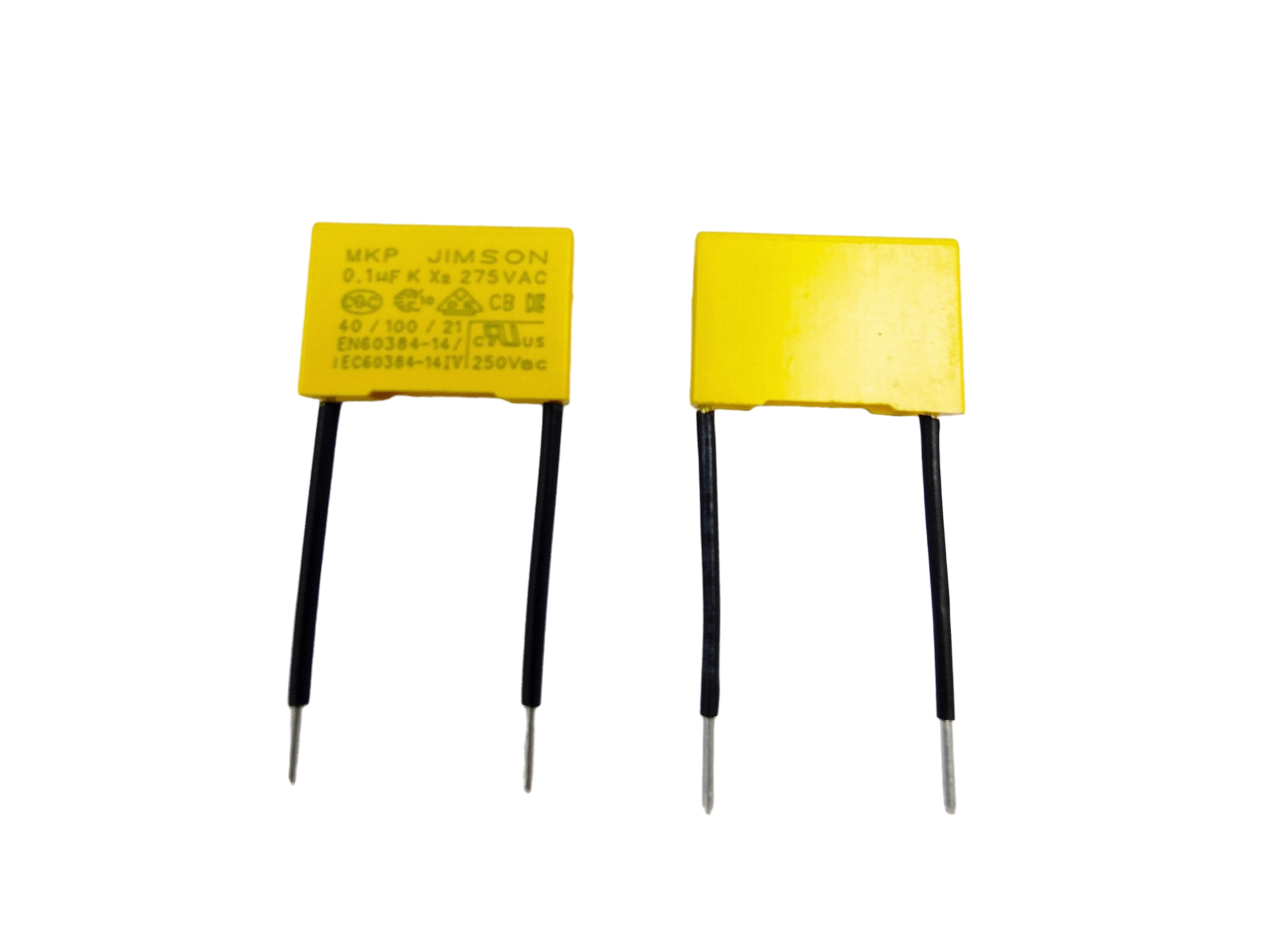

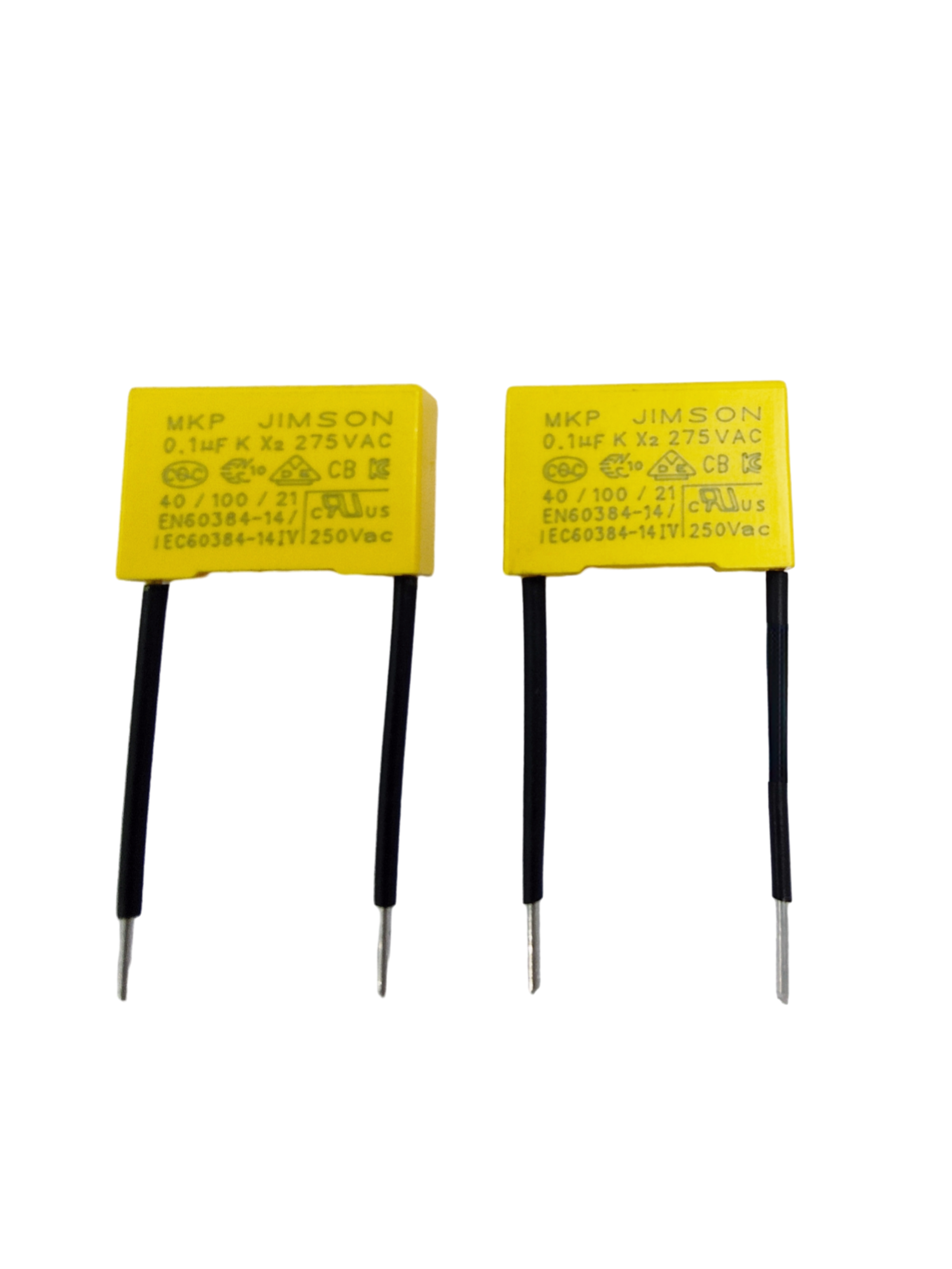

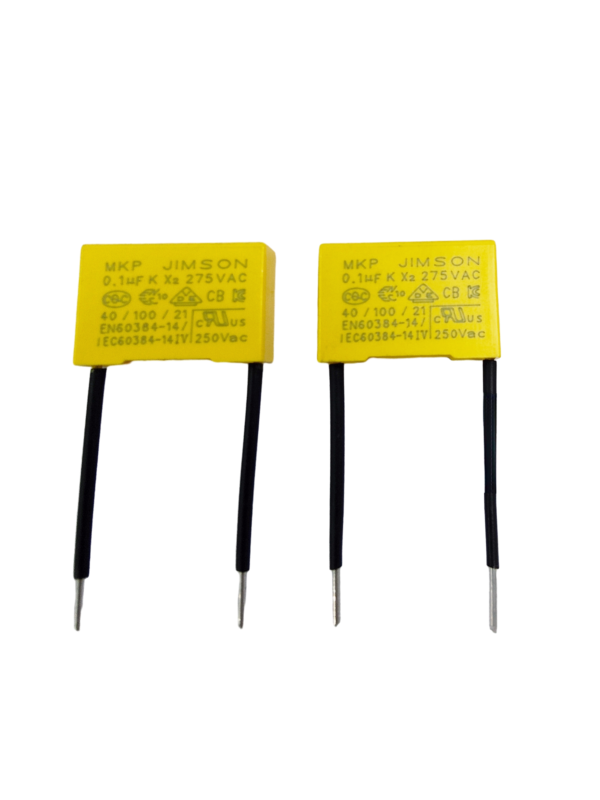

0.1uF 275V X2 Capacitor for Dish-Washing Machine

The 0.1uF 275V X2 capacitor plays a vital role in the efficient and reliable operation of dishwashing machines. Beyond its specific application, this capacitor exemplifies the broader landscape of capacitor technology, where innovation, reliability, and sustainability intersect. As we navigate the complexities of modern electronics, it’s clear that capacitors, with their diverse types and applications, are integral to the seamless functioning of our everyday devices. So, the next time you load your dishwasher, take a moment to appreciate the silent hero – the 0.1uF 275V X2 capacitor – working behind the scenes to make your life a little more convenient.

Category Suppression capacitors

Product Description

0.1uF 275V X2 Capacitor Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Radial leads of tinned wire/ insulation flexible wire
Reference standard	IEC 60384-14 (3nd Edition,2005) UL1414,UL1283, GB/T 14472-1998,EN60384-14
Climatic catalogue	40/100/21 (GMF)
Capacitance versus rated voltage (UR)	0.001µF-2.2µF/275VAC (50/60Hz) 0.001µF-4.7µF/310VAC (50/60Hz), (UL)
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	4.3*UR Unit VDC (1minute at 20℃ )
Insulation resistance	C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)
Endurance:	The test voltage 125% shall be applied for 1000 hours in the 100 ℃ chamber.Each of these voltage shall be applied to each capacitor individually through a resistor of 47Ω±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test： △ C/C ≤ 10%; IR ≥ 50% of the specified value; △ DF ≤ 0.8%(C ≤ 1µF); △ DF ≤ 0.5%(C ＞ 1µF); (at 20 ℃ 1KHz)

In the realm of household appliances, the dishwasher stands as a testament to modern convenience. Behind its seamless operation lies a myriad of components, each playing a crucial role. Among them, the 0.1uF 275V X2 capacitor emerges as a silent hero, ensuring the smooth functioning of dishwashing machines.

In the realm of electronics, capacitors are energy storage devices that store and release electrical energy. They come in various types and sizes, each designed for specific applications. Capacitors play a pivotal role in smoothing out voltage fluctuations, filtering signals, and providing the necessary energy for different electronic components to function optimally.

The capacitance of 0.1uF 275V X2 capacitor determines its ability to store electrical charge. In this case, the 0.1uF (microfarads) signifies the capacitor’s capacity to store 0.1 microfarads of charge.

The voltage rating indicates the maximum voltage the capacitor can handle without risk of failure. A 275V rating ensures the capacitor can operate safely within the voltage parameters of typical household appliances.

The X2 classification denotes a specific type of capacitor designed for use in electromagnetic interference (EMI) and radio frequency interference (RFI) suppression applications. X2 capacitors are commonly used in appliances to meet safety standards and reduce electrical noise.

Dishwashers, like many other household appliances, generate electrical noise during operation. The 0.1uF 275V X2 capacitor acts as a filter, suppressing electromagnetic interference and ensuring that the dishwasher operates quietly without causing disruptions to other electronic devices in the vicinity.

Dishwashers, with their various components and motors, require stable voltage to function optimally. The 0.1uF 275V X2 capacitor helps regulate voltage, preventing sudden spikes or drops that could potentially damage sensitive electronic components within the dishwasher.

X2 capacitors, including the 0.1uF 275V variant, are designed to meet safety standards. They provide a level of protection against electrical surges and disturbances, ensuring that the dishwasher complies with safety regulations and poses no threat to users or other electronic devices.

Capacitors, including the 0.1uF 275V X2 capacitor, contribute to the overall reliability and longevity of dishwashers. By stabilizing voltage and reducing electrical noise, they help prevent premature wear and tear on electronic components, extending the lifespan of the appliance.
