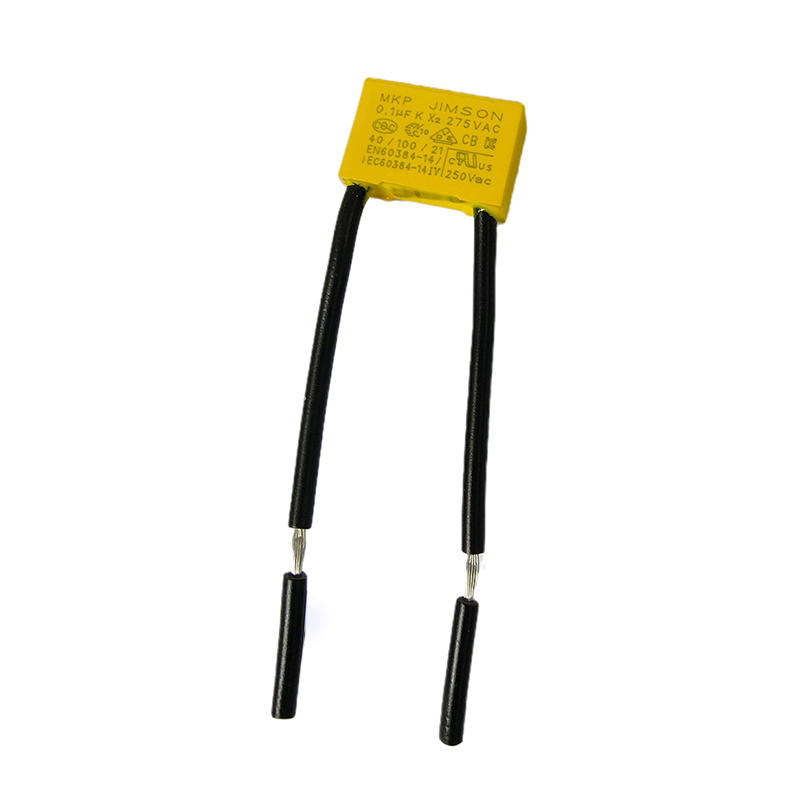

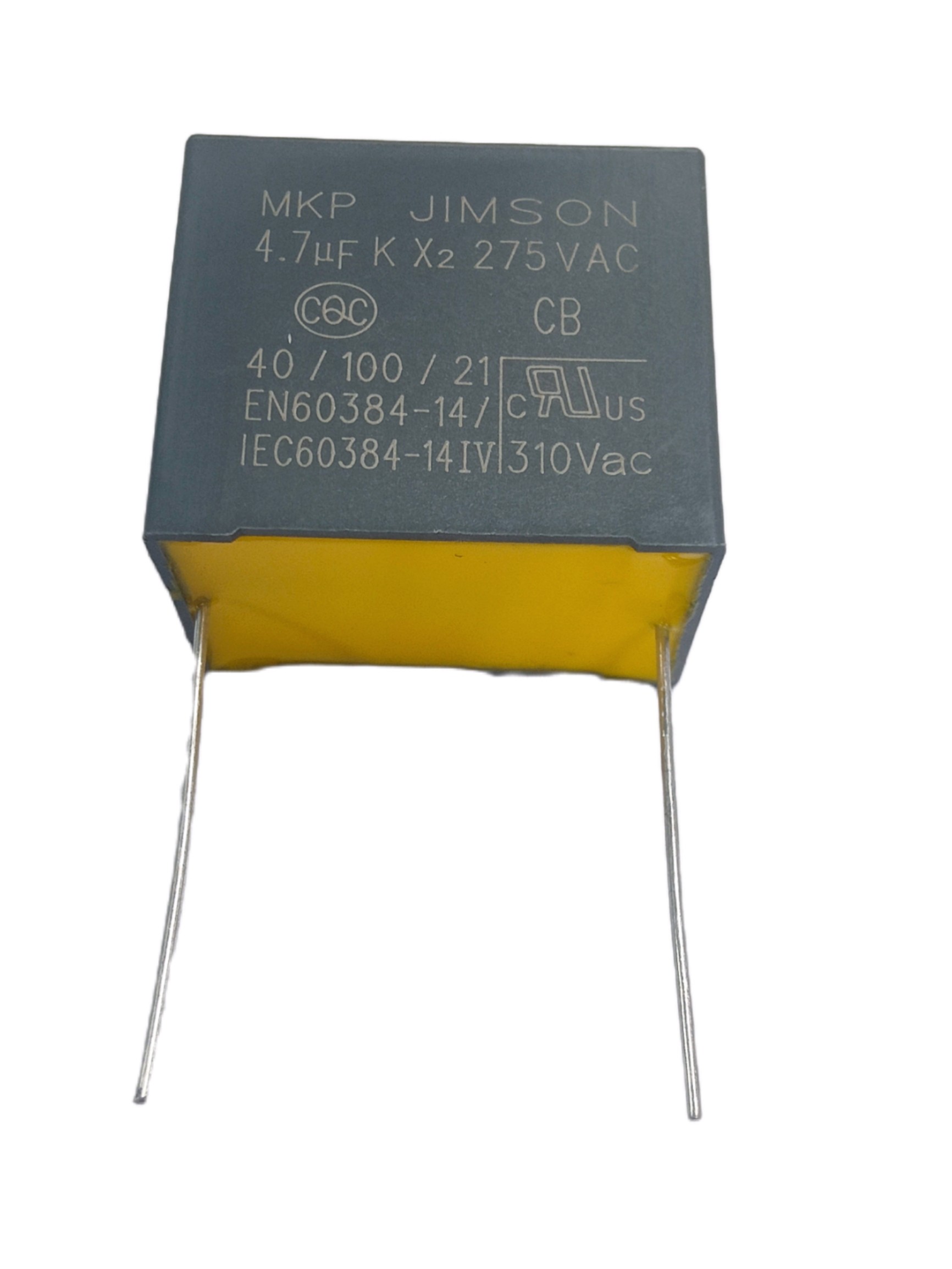

Snubber Film Capacitors

Snubber film capacitors are a type of film capacitor used in electronic circuits to reduce voltage spikes, noise, and electromagnetic interference (EMI). They are designed to provide a low-impedance path for high-frequency energy and suppress voltage transients that could damage sensitive components.

Snubber film capacitors are made by depositing a thin layer of metal (typically aluminum or zinc) onto a plastic film (usually polypropylene or polyester). This creates a thin, flexible capacitor with a high capacitance per unit volume. Snubber capacitors are typically made with polypropylene or polyester film because these materials have a low dielectric loss and high insulation resistance.

Film capacitors are often used in power electronics applications, such as switch-mode power supplies, motor drives, and inverters. In these circuits, they are connected in parallel with a switch or diode to absorb voltage transients and limit the rise time of the voltage waveform. Snubber film capacitors can also be used in audio circuits to filter out high-frequency noise and improve the signal-to-noise ratio.

Choosing the right RC snubber capacitor for your circuit is essential to ensure optimal performance and protection. With their simple design, cost-effectiveness, and effectiveness in reducing noise and voltage spikes, RC snubber capacitors are an excellent choice for any electronic circuit that requires protection.

Features of snubber film capacitors:

1. Small size with superior performance;
2. Suitable for PCB mounting;
3. Has a high RMS current tolerance;
4. Long service life and high dependability.

Applications of snubber film capacitors:

1. Noise protection for connections during equipment switching activities
2. Protection of electronic devices when relays, solenoids, and motors are operating
3. Electrical noise prevention for semiconductor equipment while triacs, transistors, motors, welders, etc. are being controlled

Specifications of snubber film capacitors:

Dielectric: snubber film capacitors

Electrodes: Non-inductive, high pulse resistor

Leads: Tinned wire or polyvinylchloride(PVC)insulation stranded copper wire

Coating: Epoxy resin(UL94V-0)

CATEGORY: X2 class

Reference standard: IEC384-14 GB/T14472-98 EN132400 UL1283

Climatic catalogue: 40/100/21

Capacitance versus rated voltage:

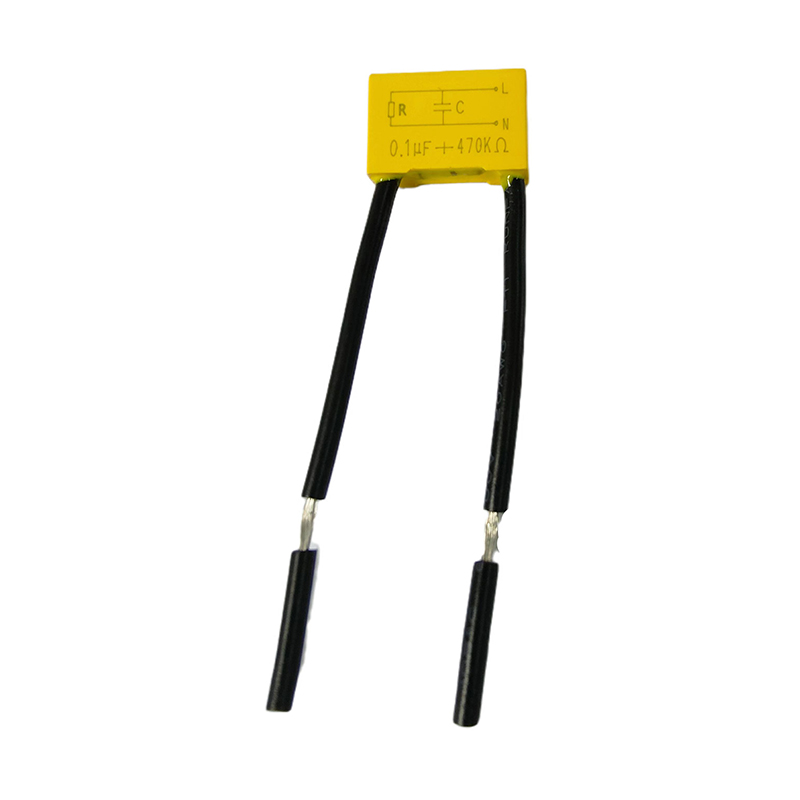

(SERIES）0.01μF~1.0μF 300VAC

(PARALLEL）0.001μF~0.68μF 300VAC

RESISTANCE AND POWER:

(SERIES ） 10-470 Ω，1/4、1/2 、1.0 or 2.0 Watt

(PARALLEL ）1.0~2.2 MΩ，1/4 、1/2、 1Watt

Voltage-proof:

4.3*UR Unit: VDC ( 1 minute at 20℃ )

INSULATION RESISTANCE:

C≤0.33µF  IR ≥15,000MΩ; C>0.33µF ,IR*C≥ 5,000S—-Series only

（1minute at 20 ℃ and RH≤ 65%）

CAPACITANCE TOLERANCE: M=±20% K=±10% J=±5%

In the realm of electronic components, snubber film capacitors hold a significant role in improving the efficiency, reliability, and performance of various circuits. Designed to suppress voltage spikes, transients, and ringing, these capacitors offer a robust solution for controlling unwanted energy oscillations. This comprehensive product details guide dives deep into the world of film capacitors, exploring their construction, working principles, advantages, applications, and considerations.

Construction and Working Principle:

Snubber film capacitors are engineered with precision to address the challenges posed by transient voltage spikes and ringing in electronic circuits. These capacitors feature a sandwich-like construction, typically consisting of a dielectric material (often polypropylene or polyester film) sandwiched between layers of metal foil electrodes. The combination of the dielectric material and electrodes allows film capacitors to store and release energy effectively, providing a pathway for unwanted energy to dissipate and ensuring stable circuit operation.

The working principle behind film capacitors involves their ability to absorb transient energy and dampen voltage oscillations. When a voltage spike or ringing occurs in the circuit, the snubber capacitor quickly charges, absorbing the excess energy. As the voltage decreases, the capacitor discharges, releasing the stored energy back into the circuit. This action helps prevent voltage overshoots, minimizes electromagnetic interference (EMI), and safeguards sensitive components from potential damage.

Advantages of Snubber Film Capacitors:

• Transient Suppression: The primary function of film capacitors is to suppress transient voltage spikes and ringing, ensuring smooth and stable circuit operation.

• Reduced EMI: By damping voltage oscillations, these capacitors minimize electromagnetic interference, resulting in cleaner signal quality and improved EMC (Electromagnetic Compatibility) performance.

• Component Protection: Snubber capacitors act as a protective barrier, preventing excessive voltage from reaching sensitive components and thus extending their lifespan.

• Enhanced Efficiency: By preventing voltage overshoots and energy wastage, snubber film capacitors contribute to the overall efficiency of the circuit.

• Improved Reliability: The reduction of voltage spikes and transients enhances the reliability of electronic systems, reducing the risk of unexpected failures.

Applications of Snubber Film Capacitors:

Film capacitors find applications across a diverse range of industries and circuits:

• Power Electronics: In power supply circuits, snubber capacitors suppress voltage spikes and improve the performance of diodes and switches in switching power supplies and inverters.

• Motor Control: Snubber capacitors enhance the reliability of motor control circuits by mitigating voltage spikes and reducing stress on the motor’s coils.

• Industrial Automation: In industrial control systems, these capacitors maintain stable operation by eliminating the impact of voltage transients and minimizing EMI.

• RF Circuits: Snubber film capacitors dampen voltage ringing in RF circuits, contributing to better signal integrity and minimizing unwanted harmonic generation.

• Electronic Ballasts: In lighting systems like fluorescent lamps, snubber capacitors control voltage spikes and ensure stable lamp ignition.

• Audio and Amplifier Circuits: Snubber capacitors reduce noise and prevent audio distortion in audio amplifiers and signal processing circuits.

Considerations and Selection Criteria:

• Voltage Rating: Choose snubber film capacitors with a voltage rating that exceeds the maximum voltage encountered in the circuit to prevent breakdown.

• Capacitance Value: The appropriate capacitance value depends on the application’s requirements and the frequency of the transients.

• Dielectric Material: Consider the dielectric material—polypropylene or polyester—based on temperature stability and voltage handling capability.

• ESR and ESL: Low Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL) are desirable for effective transient suppression.

• Operating Frequency: The capacitance value should be selected based on the frequency range of the transient signals.

• Physical Size: Ensure that the physical dimensions of the snubber capacitor are compatible with the available space in your circuit.

Snubber film capacitors are available in various configurations to cater to different circuit requirements:

• Voltage Ratings: Snubber capacitors come in a wide range of voltage ratings, from low voltage to high voltage, ensuring compatibility with diverse applications.

• Capacitance Values: Capacitance values vary to suit different frequency ranges and energy absorption needs. This allows engineers to select the optimal value for their specific circuits.

• Tolerance Levels: Capacitor tolerance affects the accuracy of the capacitance value. Snubber capacitors are available with different tolerance levels, typically ranging from ±5% to ±20%.

• Package Types: Snubber capacitors can be found in axial, radial, and surface-mount package types, making them versatile for both through-hole and surface-mount assembly.

• Temperature Ratings: Capacitors designed for different temperature ranges ensure stable performance across various operating conditions, from standard to extreme environments.

Installation and Integration:

Proper installation and integration of snubber film capacitors are essential to maximize their effectiveness:

• Positioning: Place snubber capacitors close to the source of transient energy to ensure quick absorption and dissipation.

• Soldering: When soldering, adhere to recommended soldering profiles and techniques to prevent heat damage to the capacitor and its leads.

• Polarity: Snubber capacitors are non-polar components, which means they can be connected in either direction without concern for polarity.

Advancements and Future Outlook:

The field of snubber film capacitors is not static; ongoing research and development efforts are focused on enhancing their performance and applicability:

• Higher Frequencies: As circuits operate at higher frequencies, snubber capacitors are being optimized for improved transient suppression across broader frequency ranges.

• Miniaturization: Efforts are being made to develop smaller snubber capacitors with higher capacitance values, allowing for more efficient space utilization in compact circuits.

• Integration: Snubber capacitors are being integrated into advanced electronic systems, such as power modules and semiconductor devices, to provide localized transient suppression.

• Advanced Dielectric Materials: Researchers are exploring new dielectric materials that offer better temperature stability, higher dielectric constants, and reduced losses.

• Smart Integration: The integration of snubber capacitors with sensing and control circuitry enables dynamic adjustment of their parameters based on real-time operating conditions.

Key Characteristics of Snubber Film Capacitors

• Voltage Rating: Snubber capacitors are designed to handle relatively high voltage levels to effectively suppress voltage spikes in the circuit.

• Capacitance Value: The capacitance value of snubber capacitors can vary depending on the specific application and circuit requirements. They are available in a wide range of capacitance values.

• High-Frequency Performance: Snubber capacitors are often optimized for high-frequency operation, making them suitable for switching power supplies and motor drives.

• Low Equivalent Series Resistance (ESR): A low ESR allows snubber capacitors to efficiently absorb and dissipate energy, reducing voltage overshoot and protecting other components.

• Low Equivalent Series Inductance (ESL): Low ESL minimizes parasitic inductance in the snubber circuit, ensuring rapid response to voltage spikes.

• Film Dielectric: Snubber capacitors typically use film dielectrics, such as polyester (PET), polypropylene (PP), or polyethylene (PE), which offer good electrical performance and low losses.

• Self-Healing: Film capacitors have a self-healing property, meaning that if a dielectric breakdown occurs, the capacitor can recover and continue to function.

Snubber film capacitors stand as essential components that play a pivotal role in maintaining the stability, efficiency, and reliability of electronic circuits. Their ability to suppress transient voltage spikes, ringing, and energy oscillations makes them indispensable across industries ranging from power electronics to industrial automation. By selecting the right snubber capacitor based on considerations such as voltage rating, capacitance value, and dielectric material, engineers and designers can ensure optimal circuit performance, prevent component damage, and contribute to the overall longevity of electronic systems. As technology advances and circuit requirements become more complex, snubber film capacitors will continue to be a cornerstone of effective transient suppression, enabling the seamless operation of advanced electronic applications.
