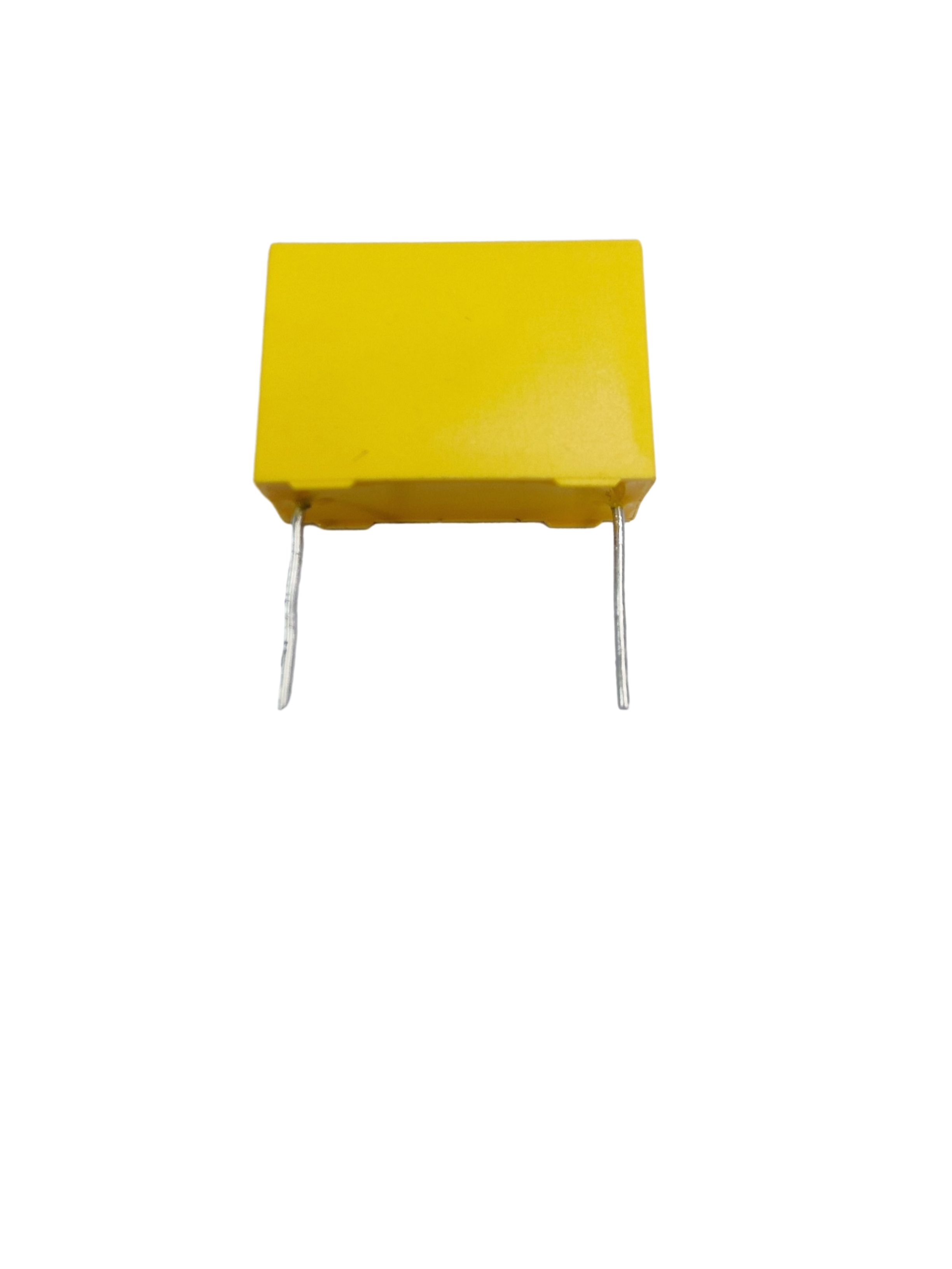

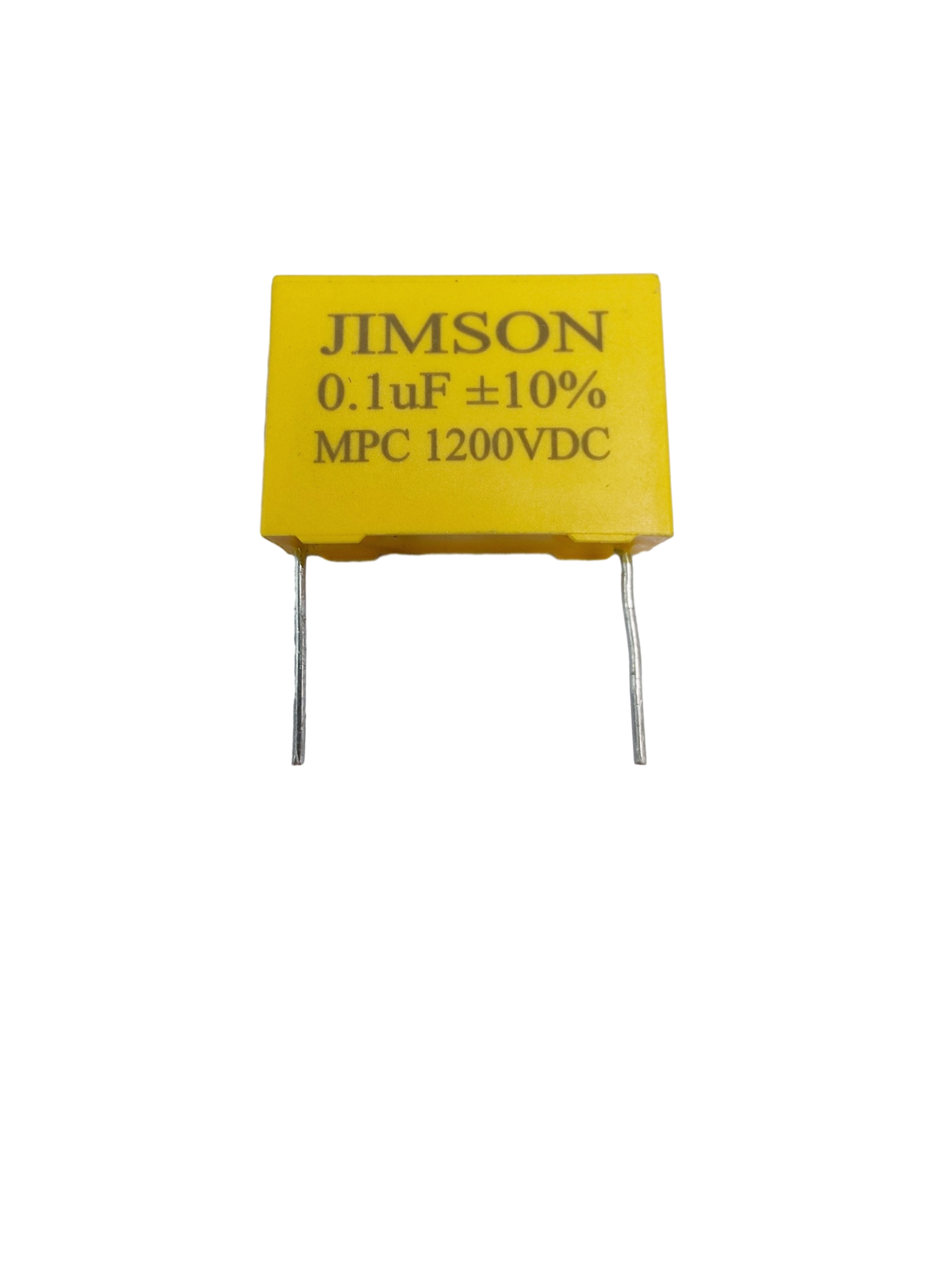

0.1uF 1200VDC Double Sided Metallized Polypropylene Film Capacitor

The 0.1uF 1200VDC double sided metallized polypropylene film capacitor is a crucial component in household electronic devices and electrical systems. Its high capacitance value, compact size, and reliable performance make it suitable for various applications. By understanding the characteristics, specifications, operating principles, and benefits of this capacitor, engineers and designers can effectively incorporate it into household appliances, contributing to improved power delivery, stability, and overall performance. The 0.1uF 1200VDC double sided metallized polypropylene film capacitor serves as an essential element in enhancing the efficiency and functionality of household electronic devices, promoting comfort and convenience in everyday life.

Categories Power capacitors, Metallized Polypropylene Capacitors

Product Description

0.1uF 1200VDC Double Sided Metallized Polypropylene Film Capacitor Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal or Aluminum foil
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Axial leads of tinned wire
Reference standard	IEC 384-16; GB 10190-1988
Climatic catalogue	40/85/21
Capacitance versus rated voltage (UR)	0.001 µF-2.2 µF/100VDC 0.001 µF-2.2 µF/250VDC 0.001 µF-2.2 µF/400VDC 0.001 µF-2.2 µF/630VDC
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	1.6*UR Unit:VDC (5s at 20°C)
Insulation resistance	C≤0.33µF, IR≥30000MΩ, C>0.33µF, IR*C≥5,000s (1 minute at 20°C and R≤65%)
Endurance	1000 hours with 125% of rated voltage at 85°C. After the test: ΔC/C ≤5%; ΔDF ≤0.40%, IR ≥50% of the specified value (20°C, 1kHz)

The applications of 0.1uF 1200VDC Double Sided Metallized Polypropylene Film Capacitor:

The 0.1uF 1200VDC double sided metallized polypropylene film capacitor finds critical applications within variable frequencners, contributing to their energy efficiency, reliability, and performance:

1.Energy Storage and Voltage Stabilization:

The 0.1uF 1200VDC double sided metallized polypropylene film capacitor stores electrical energy during low-demand periods and releases it during high-demand periods. This enables efficient utilization of power and helps stabilize the DC-link voltage, ensuring consistent and reliable operation of the air conditioning system.

2. Ripple Current Suppression:

Variable frequency air conditioners generate high-frequency ripple currents due to the switching nature of the inverter. The 0.1uF 1200VDC double sided metallized polypropylene film capacitor effectively suppresses these ripple currents, preventing their propagation to other components and minimizing electrical noise and interference.

3.Power Factor Correction:

The 0.1uF 1200VDC double sided metallized polypropylene film capacitor assists in power factor correction by improving the power factor of the air conditioner’s input current. This reduces the reactive power demand from the power grid, leading to improved energy efficiency and reduced electricity consumption.

4.System Efficiency and Performance:

The 0.1uF 1200VDC double sided metallized polypropylene film capacitor enhances the overall efficiency and performance of the variable frequency air conditioner. It enables smooth and precise control of the compressor’s rotational speed, resulting in optimized cooling or heating output, reduced energy wastage, and enhanced comfort for the users.

5.Longevity and Reliability:

The capacitor’s robust construction, high-quality materials, and adherence to strict manufacturing standards contribute to its longevity and reliability. It withstands the demanding operating conditions of variable frequency air conditioners, ensuring prolonged service life and minimal maintenance requirements.
