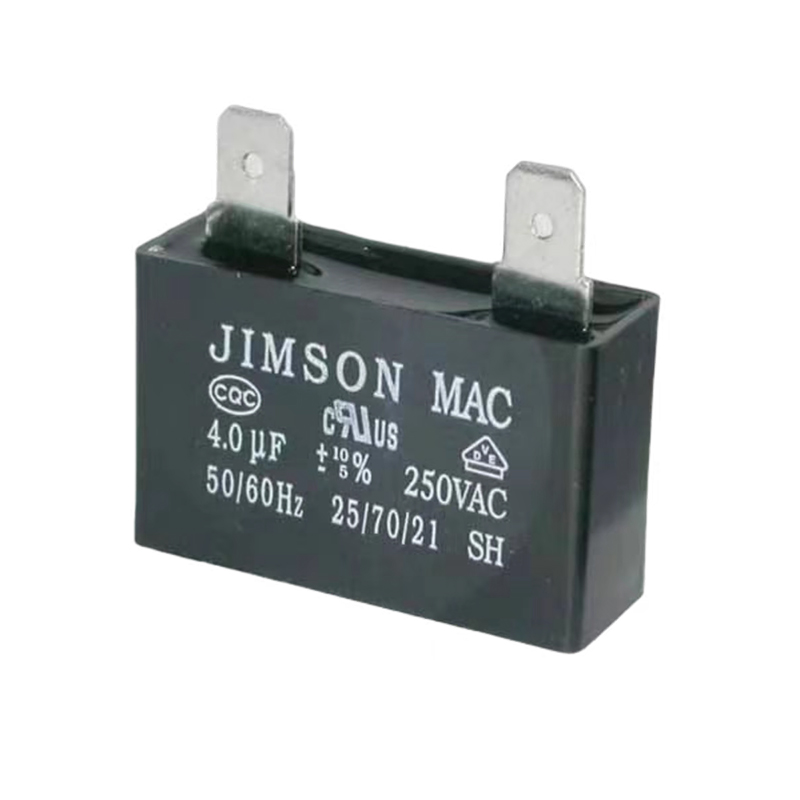

Metallized Polypropylene Film Capacitor

Produce Introduce

Metallized polypropylene film capacitors are excellent capacitors due to their many excellent properties. Its main equivalences are as follows: no polarity, high insulation resistance, excellent frequency characteristics (broad frequency response), and very small dielectric loss. Based on the above advantages, film capacitors are widely used in analog circuits. Especially in the part where the signals are cross-connected, capacitors with good frequency characteristics and extremely low dielectric loss must be used to ensure that the signal will not be too distorted during transmission.

Feature:1.Non-inductive construction
2.Self-healing property
3.High current endurability up to 20A and special termination for high current

Application:

1.Applicable for air conditioners, ventilator, electric fan, AC one-phase motors, fluorescent lamps, mercury     lamps and transformer etc.
2. Used for starting, running and power factor correcting purpose.

Specifications:

Dielectric: Metallized polypropylene film

Electrodes: Vacuum evaporated metal

Coating: Encapsulated in engineering plastic sealed case with epoxy resin meeting the requirement.

Leads: Radial leads of tinned wire / insulation flexible wire or tabs

Reference standard: GB/T 3667-1997 UL810 IEC 60252-1

Climatic catalogue: 25/70/21

Capacitance versus rated voltage:

1.0μF~50μF 0~500VAC （UL）

1.0uF~13.0uF 250VAC (CQC VDE)、

1.0uF~6.0uF 400VAC (CQC)

1.0uF~6.0uF 500VAC (CQC VDE)

Capacitance tolerance: M ±20% K ± 10% J ± 5%

Dissipation factor (tangent of loss): ≤％ ℃ 0.2 (at 20 , 1KHz)

Voltage-proof:

T-T 2.0*UR(10S) Unit:VDC

T-C 2*UR+1000V(60S) Unit:VDC

Insulation resistance:

T-T C＜ 0.47 μF  ≥ 2000MΩ

C≥ 0.47 μF  ≥ 1000S

T-C ≥ 2000MΩ (1 minute at 20 and RH 65%)

ENDURANCE AFTER TESTING:

600hours with 125% of rated voltage at 70 ℃。

70℃， 125%。

ΔC/C≤ 5%； IR ≥ 50% of the specified value

Metallized Polypropylene Film Capacitor Manufacturers

We are committed to offer our clients a wide range of Metalized Capacitors, which is highly appreciated for international quality standards. These Metallized Capacitors are available with different values of general and value ratings and are used in the designing of various circuits of electronic and electric appliances.
This product is widely used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. It is especially suitable for various types of energy-saving lamps and electronic rectifiers.
We are looking for bulk enquiries for Metallized Polypropylene Capacitors, Metallized Polypropylene Film Capacitor, MAC Series A.C Usage capacitors etc.

FAQ

1—What is the connected leads?

  —It is connected with insulation flexible tabs.

2.—What is the applocation?

   —It can be applicable for air conditioners, ventilator, electric fan, AC one-phase motors,

   —fluorescent  lamps, mercury  lamps and transformer etc.

3.—What is the dimension?

   — It is 39*27*17mm.

4.—What does the CBB61 of silk printing stand for?

   —It is square metallized polypropylene film capacitors.
