Metallised Polyester Capacitors

It is CBB20 for charging/discharging, lighting, noise suppression and frequency modulation.

Product Description

Product Introduce

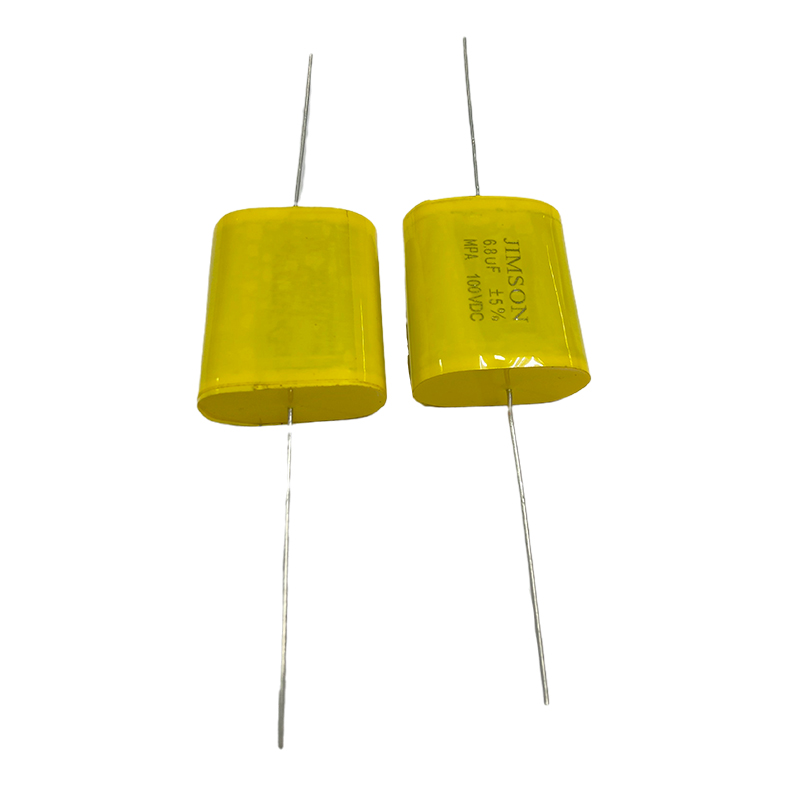

The colour is yellow. It is out wrapped with Mylar tape and ends sealed with epoxy resin. The capacitcance  is  6.8uF. Metalized Capacitors are available with different values of general and value ratings. They are used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. We are looking for bulk enquiries for Metallized Polypropylene Capacitor, MPA Series axial capacitors etc.



Feature:

1.Non-inductive construction and self-healing
2.Low DF and high IR
3.High capacitance value available and compact size

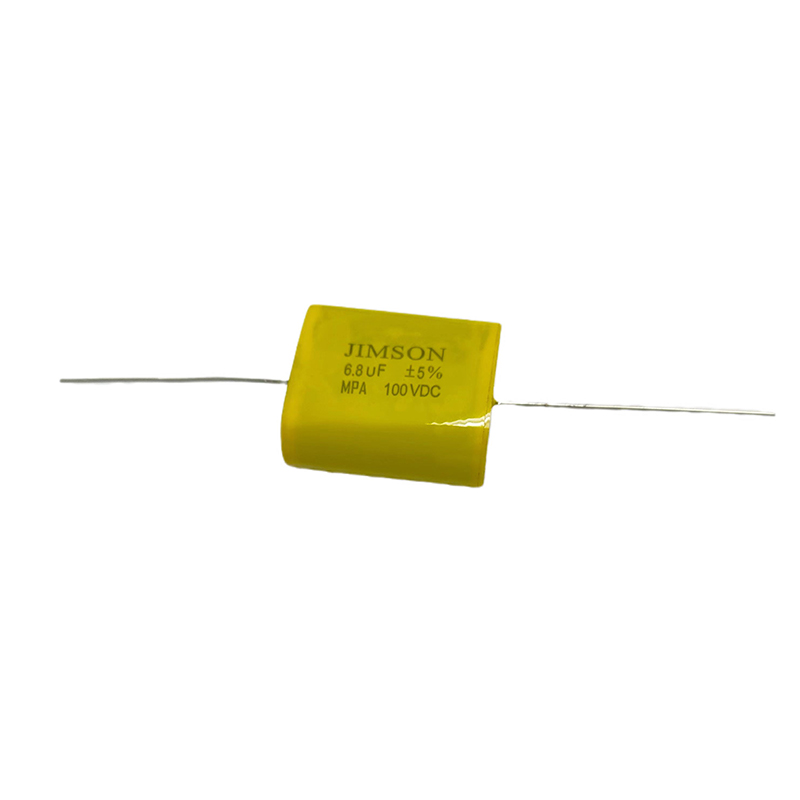

MPA685J100VDC01 1665537375485

Application:

1.Coupling, decoupling, by-passing and timing circuit
2. Automatic control system, communication equipment
3. Charging/discharging, lighting, noise suppression and frequency modulation

MPA685J100VDC 1665537407011

Specifications:



Dielectric: Polypropylene film

Electrodes: Vacuum evaporated metal

Coating: Out wrapped with Mylar tape and ends sealed with epoxy resin

Leads: Axial leads of tinned wire

Reference standard: GB 10190-1988;  IEC 384-16

Climatic catalogue: 40/85/21

Capacitance versus rated voltage:

0.01μF~6.8μF /100VAC

0.01μF~6.8μF /250VAC

0.01μF~1.5uF /400VAC

0.01uF~1.0uF /630VAC (

Capacitance tolerance: M ±20% K ± 10% J ± 5%

Dissipation factor (tangent of loss): ≤0.1%  (at 20℃  , 1KHz)

Voltage-proof:

1.6*UR  Unit: VDC(5s at 20℃ )

Insulation resistance:

C≤  0.33μF   IR ≥ 30000MΩ

C> 0.33 μF   IR*C  ≥ 5000S

 (1 minute at 20 ℃  and RH≤  65%)

ENDURANCE AFTER TESTING:

1000hours with 125% of rated voltage at 85 ℃。

ΔC/C≤ 5%; IR ≥ 50% of the specified value



Metallized Polypropylene  Film Capacitor Manufacturers

We are committed to offer our clients a wide range of Metalized Capacitors, which is highly appreciated for international quality standards. These Metallized Capacitors are available with different values of general and value ratings and are used in the designing of various circuits of electronic and electric appliances.
This product is widely used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. It is especially suitable for various types of energy-saving lamps and electronic rectifiers.
We are looking for bulk enquiries for Metallized Polypropylene Capacitors, Metallized Polypropylene Film Capacitor, MPA Series axial capacitors etc.
