Metalized Polypropylene Film Capacitor

Product Introduce

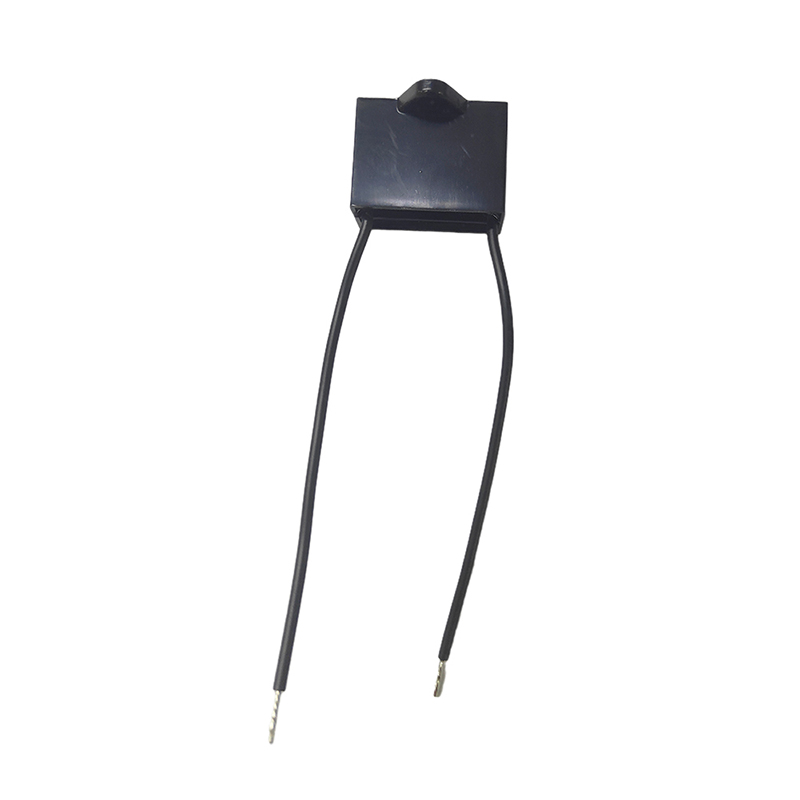

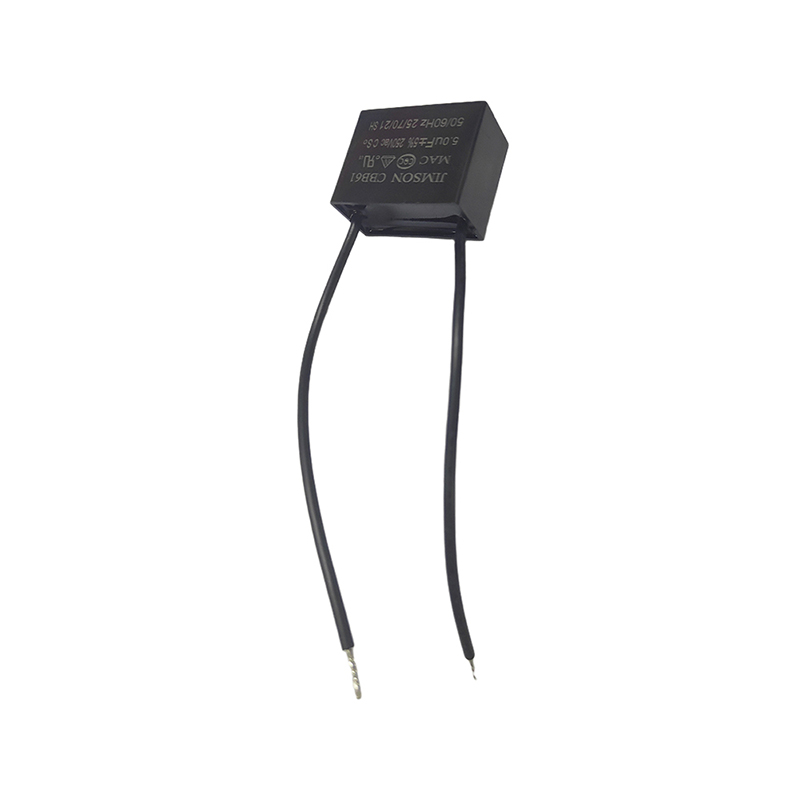

Capacitors of this MAC type are black, the Dielectric of Metalized Polypropylene Film. It is 5.0uF capacitance. Metalized Capacitors are available with different values of general and value ratings. They are used for air conditioners, ventilator, electric fan, AC one-phase motors, fluorescent lamps, mercury  lamps transformer and household electrical appliances. And they are used for starting ,running and power factor correcting purpose. We are looking for bulk enquiries for Metallized Polypropylene Capacitor, MAC Series A.C Usage capacitors etc.We can offer the samples for free charge. Samples shipping cost will be at buyer’s account. (such as UPS, FedEx, TNT, etc.) Welcome to our factory, you can come here or you ask your some friends in china to check the quality. If you can’t check it by yourself, we’ll take the photos or send video to confirm.

Feature:

1.Plastic shell package, good consistency in appearance.

2.Small high frequency loss, suitable for larger current.

3.High insulation resistance, good self-healing, long life.

Application:
1.Applicable for air conditioners, ventilator, electric fan, AC one-phase motors, fluorescent lamps, mercury     lamps and transformer etc.
2.Used for starting ,running and power factor correcting purpose.

CBB61 capacitor can also be called CBB61 type AC motor running & starting capacitor, its shape is generally rectangular, characterized by large capacity, small loss, strong resistance to moisture, good reliability and excellent electrical performance. It is suitable for use in the ambient temperature of -40℃~+85℃. Our company can develop, design and produce products to meet various special requirements according to different needs of customers.

Specifications:

Dielectric: Metallized polypropylene film

Electrodes: Vacuum evaporated metal

Coating: Encapsulated in engineering plastic sealed case with epoxy resin meeting the requirement.

Leads: Radial leads of tinned wire / insulation flexible wire or tabs

Reference standard: GB/T 3667-1997 UL810 IEC 60252-1

Climatic catalogue: 25/70/21

Capacitance versus rated voltage:

1.0μF~50μF 0~500VAC （UL）

1.0uF~13.0uF 250VAC (CQC VDE)、

1.0uF~6.0uF 400VAC (CQC)

1.0uF~6.0uF 500VAC (CQC VDE)

Capacitance tolerance: M ±20% K ± 10% J ± 5%

Dissipation factor (tangent of loss): ≤％ ℃ 0.2 (at 20 , 1KHz)

Voltage-proof:

T-T 2.0*UR(10S) Unit:VDC

T-C 2*UR+1000V(60S) Unit:VDC

Insulation resistance:

T-T C＜ 0.47 μF  ≥ 2000MΩ

C≥ 0.47 μF  ≥ 1000S

T-C ≥ 2000MΩ (1 minute at 20 and RH 65%)

ENDURANCE AFTER TESTING:

600hours with 125% of rated voltage at 70 ℃。

70℃， 125%。

ΔC/C≤ 5%； IR ≥ 50% of the specified value

Our Advantages：

1) Brand advantage: film capacitors are positioned in the middle and high end.

2) Customer advantage: widely used in nearly 300 industries, serving more than 10,000 customers.

3) Market advantage: domestic market share of RC capacitance absorber ≥70%.

4) Product advantage: 26 series, nearly 3000 specifications.

5) Raw material advantage: imported metalized film, quality assurance and reliable quality.

6) Equipment advantage: fully automated production equipment, industry leading technology.

FAQ

1. —What is the voltage unit of this Jimson capacitor?

   —-It is VAC.

2. — What is the colour of this MAC type?

    — It is black.

3. — What is the capacitance of this part number?

    —  It is 5.0uF.

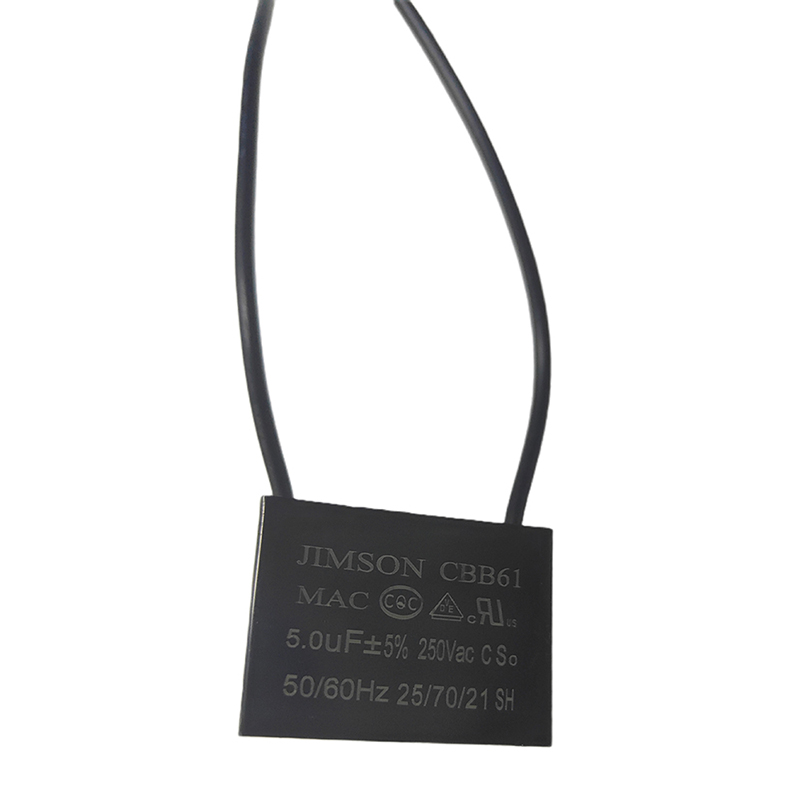

4.—What is the JIMSON in the silk-printing of this product?

  — JIMSON is our brand.
