Cbb61 Metallized Polypropylene Capacitor

Product Introduce

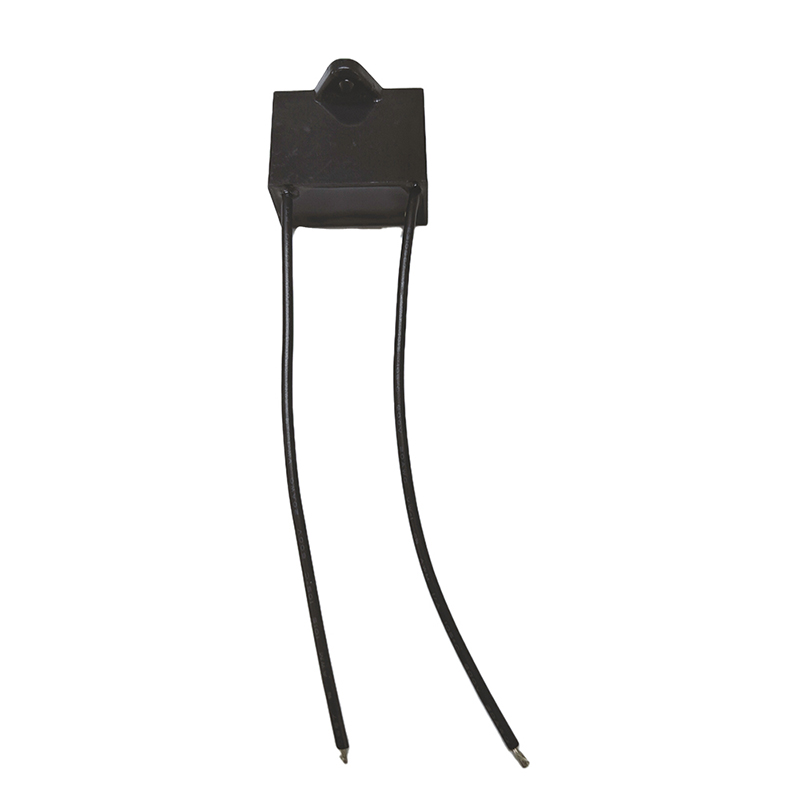

There is A.C. use. It is black and has a 3.0uF capacitance. Additionally, the size is 47*38*26mm. It is employed in running, tabbing, and power factor correction. There are many general and value ratings for metalized capacitors. They are employed in instruments, meters, TVs, and home electrical appliances for DC pulsation, pulse, and AC voltage reduction. For Cbb81 metallized polypropylene capacitor, MAC Series A.C Usage Capacitors, etc., we are seeking for bulk inquiries.

Our metallized polypropylene film capacitors have several advantages.
Our Cbb81 metallized polypropylene capacitor are metallized polypropylene film capacitors, which are used in the capacitor business. The following summarizes the key benefits of metallized polypropylene film capacitors:

1. Consistency and dependability.

2. The dissipation factor is reduced by the non-inductive construction.

3. Outstanding environmental results.

4. Reduced ESR

5. Non-inductive metal film capacitors are available. Aluminum foil serves as the electrode, and polyester film serves as the medium. epoxy resin-coated steel wire with tinned copper plating.

6. The maximum working temperature may reach 155°C, while the rated operating temperature is 70°C.

7. Stable voltage and low temperature coefficients.

8. The application is highly broad and appropriate for pulse, DC, and AC circuits.

Application of Cbb81 metallized polypropylene capacitor:

1. Applicable for air conditioners, ventilator, electric fan, AC one-phase motors, fluorescent lamp,mercury lamps and transformer etc.
2. Used for starting ,running and power factor correcting purpose.

Specifications of Cbb81 metallized polypropylene capacitor:

Dielectric: Metallized polypropylene film

Electrodes: Vacuum evaporated metal

Coating: Encapsulated in engineering plastic sealed case with epoxy resin meeting the requirement.

Leads: Radial leads of tinned wire / insulation flexible wire or tabs

Reference standard: GB/T 3667-1997 UL810 IEC 60252-1

Climatic catalogue: 25/70/21

Capacitance versus rated voltage:

1.0μF~50μF 0~500VAC （UL）

1.0uF~13.0uF 250VAC (CQC VDE)、

1.0uF~6.0uF 400VAC (CQC)

1.0uF~6.0uF 500VAC (CQC VDE)

Capacitance tolerance: M ±20% K ± 10% J ± 5%

Dissipation factor (tangent of loss): ≤％ ℃ 0.2 (at 20 , 1KHz)

Voltage-proof:

T-T 2.0*UR(10S) Unit:VDC

T-C 2*UR+1000V(60S) Unit:VDC

Insulation resistance:

T-T C＜ 0.47 μF  ≥ 2000MΩ

C≥ 0.47 μF  ≥ 1000S

T-C ≥ 2000MΩ (1 minute at 20 and RH 65%)

ENDURANCE AFTER TESTING:

600hours with 125% of rated voltage at 70 ℃。

70℃， 125%。

ΔC/C≤ 5%； IR ≥ 50% of the specified value

Cbb81 metallized polypropylene capacitor Manufacturers

Cbb81 metallized polypropylene capacitor are available with different values of general and value ratings. They are used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances. We are looking for bulk enquiries for Cbb81 metallized polypropylene capacitor and MAC Series A.C Usage capacitors. This product is widely used for DC pulsation, pulse, and AC voltage reduction in instruments, meters, TV sets and household electrical appliances.
