The 22uF 1200V black DC-Link capacitor plays a fundamental role in variable frequency air conditioners, enabling efficient energy storage, voltage stabilization, and enhanced system performance. The 22uF 1200V DC-Link capacitor’s specific features, such as capacitance, voltage rating, low ESR, and black color, are carefully designed to meet the demands of variable frequency air conditioning applications. By providing a comprehensive analysis of the capacitor’s functionality, design considerations. Proper integration and selection of the capacitor, along with attention to design considerations and challenges, are essential to ensure the reliable and efficient operation of variable frequency air conditioners. As technology continues to advance, capacitors like the 22uF 1200V Black DC-Link Capacitor will play a crucial role in meeting the increasing demands for energy-efficient and sustainable air conditioning solutions.
|Electrodes||Vacuum evaporated metal or Aluminum foil|
|Coating||Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0|
|Leads||Axial leads of tinned wire|
|Reference standard||IEC 384-16; GB 10190-1988|
|Capacitance versus rated voltage (UR)||0.001 µF-2.2 µF/100VDC
0.001 µF-2.2 µF/250VDC
0.001 µF-2.2 µF/400VDC
0.001 µF-2.2 µF/630VDC
|Capacitance tolerance||M = ±20%, K = ±10%, and J = ±5%|
|Dissipation factor||DF≤1.0% (at 20°C, 1KHz)|
|Voltage-proof||1.6*UR Unit:VDC (5s at 20°C)|
|Insulation resistance||C≤0.33µF, IR≥30000MΩ, C>0.33µF, IR*C≥5,000s (1 minute at 20°C and R≤65%)|
|Endurance||1000 hours with 125% of rated voltage at 85°C. After the test:
ΔC/C ≤5%; ΔDF ≤0.40%, IR ≥50% of the specified value (20°C, 1kHz)
Variable frequency air conditioners, also known as inverter air conditioners, utilize advanced technology to vary the compressor’s rotational speed and adjust the cooling or heating output accordingly. It can allow for precise temperature control, energy efficiency, and improved comfort. The 22uF 1200V Capacitor plays a vital role in the operation of variable frequency air conditioners, particularly in the DC-link circuit. The 22uF 1200V DC-Link circuit is responsible for connecting the rectifier and the inverter in the air conditioner’s power conversion system. It requires capacitors with high capacitance and voltage ratings to store and smooth the DC voltage, ensuring stable and efficient power transfer.

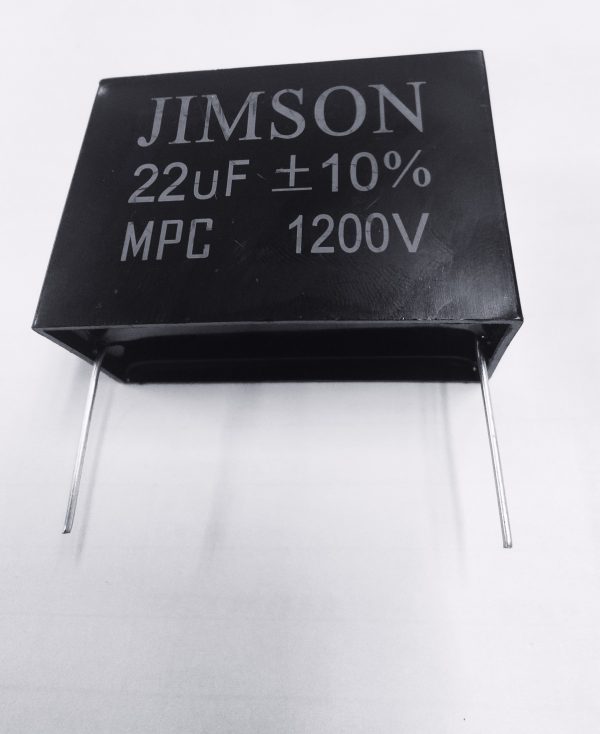

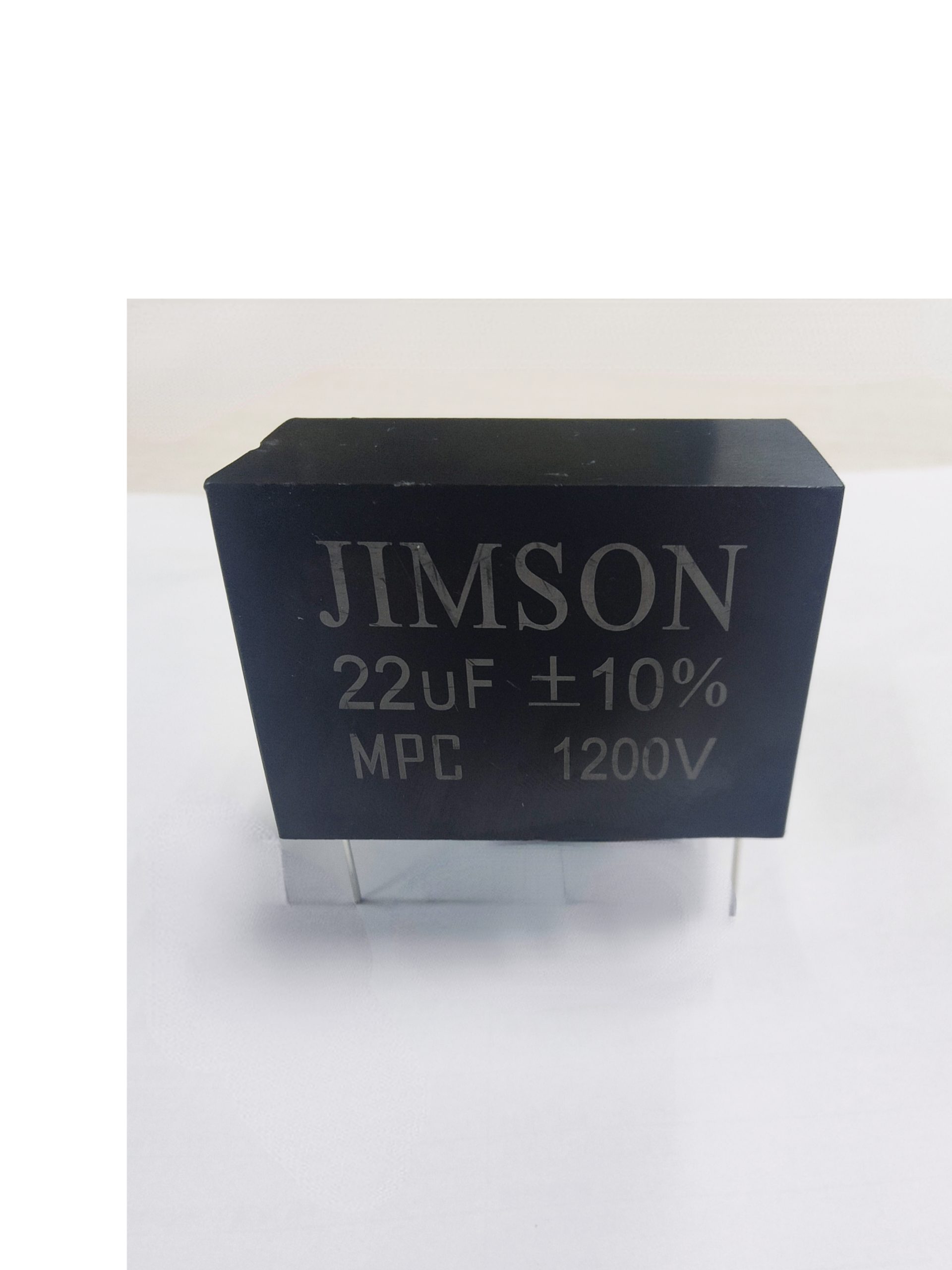

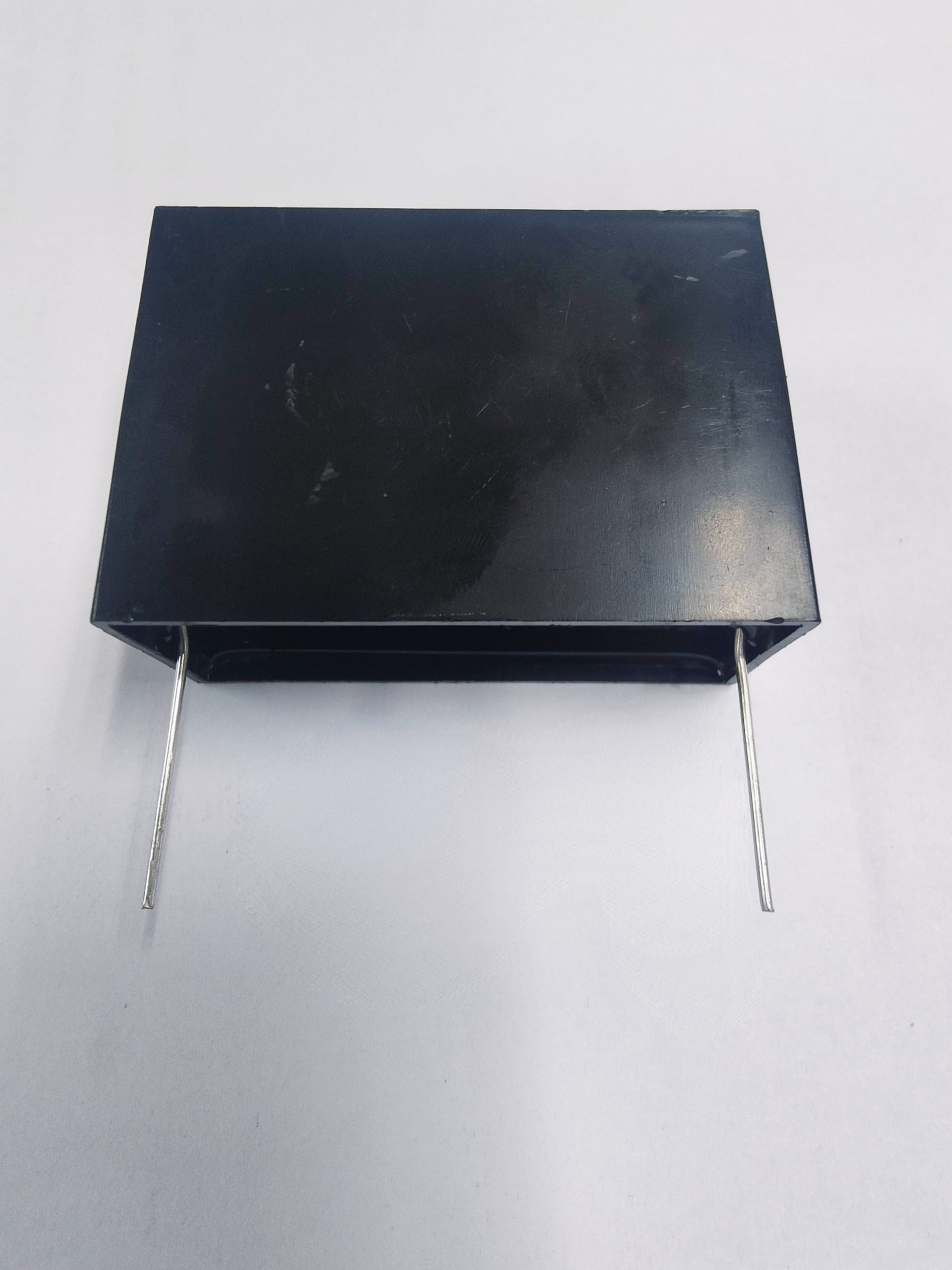

The 22uF 1200V Black DC-Link Capacitor is specifically designed for variable frequency air conditioners, offering reliable energy storage and performance. There are several key features of the 22uF 1200V DC-Link Capacitor as below:
The 22uF rating indicates the capacitor’s ability to store and release electrical energy. The 22uF is carefully selected based on the air conditioner’s power requirements and the desired DC-link stability.
Variable frequency air conditioners operate at high voltages, and the 22uF 1200V black DC-Link capacitor must have a sufficiently high voltage rating to withstand the system’s voltage fluctuations. The 1200V rating ensures the capacitor’s safe and reliable operation in this demanding environment.
3.Low Equivalent Series Resistance (ESR)
The 22uF 1200V black DC-Link capacitor’s low ESR allows for efficient energy storage and discharge, minimizing power losses and ensuring high system efficiency.
The black colour of the 22uF 1200V DC-Link capacitor serves as a visual indication of its specific properties, such as its voltage rating and suitability for use in DC-link applications. It also aids in easy identification and installation during the manufacturing process.
The integration of the 22uF 1200V Black DC-Link Capacitor into variable frequency air conditioners requires careful consideration of various design aspects and potential challenges:
1.Voltage and Current Ratings
The 22uF 1200V DC-Link capacitor’s voltage and current ratings must align with the air conditioner’s power requirements and operating conditions. Proper sizing and selection of the 22uF 1200V DC-Link capacitor are essential to ensure reliable performance and avoid premature failures.
Variable frequency air conditioners generate heat during operation, which can affect the 22uF 1200V DC-Link capacitor’s performance and lifespan. Adequate thermal management techniques, such as proper placement, cooling fins, or heat sinks, should be employed to maintain the 22uF 1200V DC-Link capacitor within its specified temperature range.
3.EMI and Noise Mitigation
The 22uF 1200V DC-Link capacitor’s placement and wiring within the air conditioner’s circuitry should consider electromagnetic interference (EMI) andnoise mitigation. Shielding techniques, proper grounding, and filtering components can help reduce EMI and noise, ensuring optimal performance of the 22uF 1200V DC-Link capacitor and the entire system.
Variable frequency air conditioners are often used in diverse environments, including residential, commercial, and industrial settings. The the 22uF 1200V DC-Link capacitor should be designed to withstand temperature variations, humidity, vibration, and other environmental factors to ensure long-term reliability.
5.Safety and Compliance
The 22uF 1200V DC-Link capacitor should comply with relevant safety standards and regulations to ensure the air conditioner’s overall safety. It should undergo rigorous testing and certification procedures to meet the necessary industry standards.
