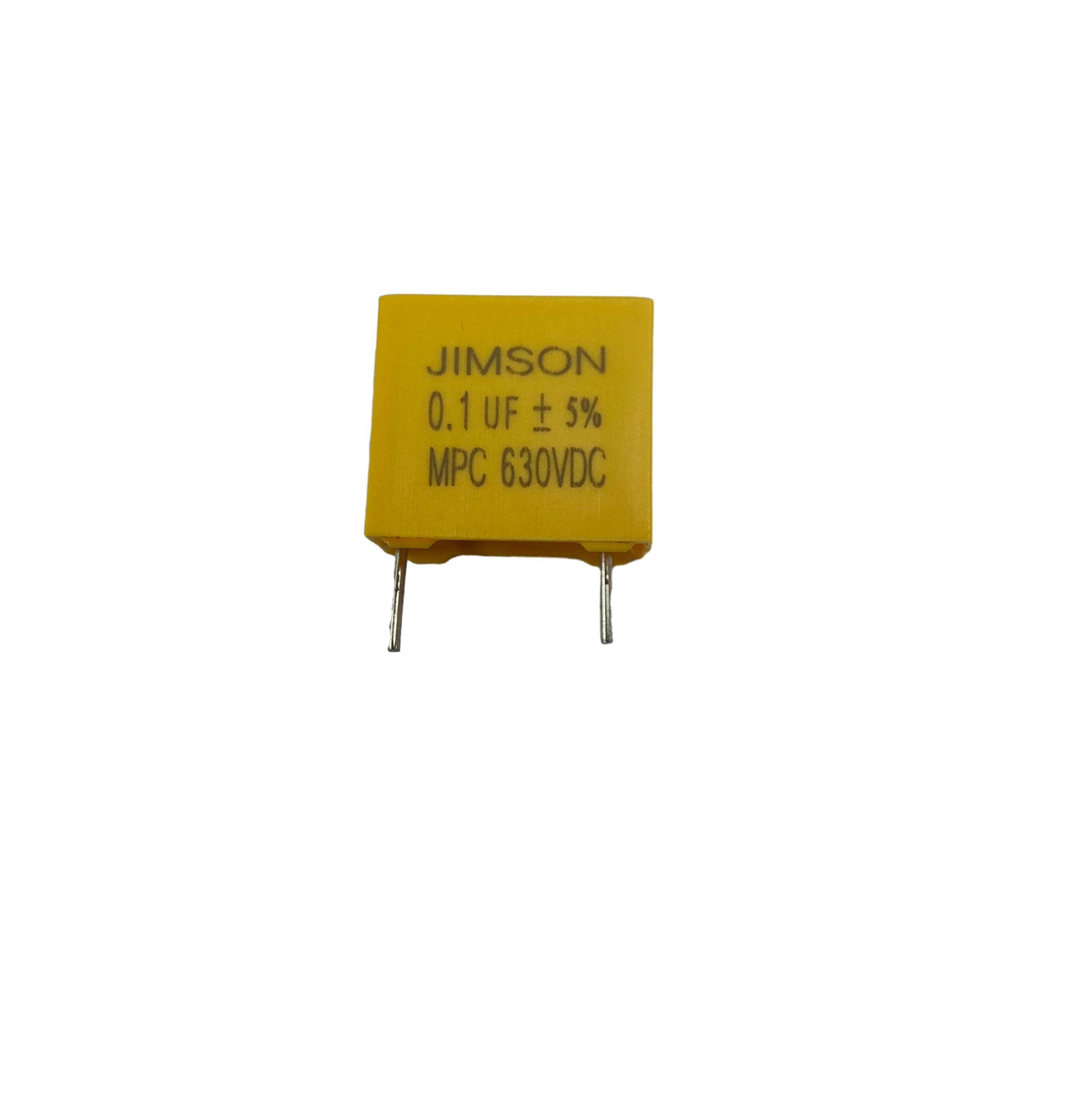

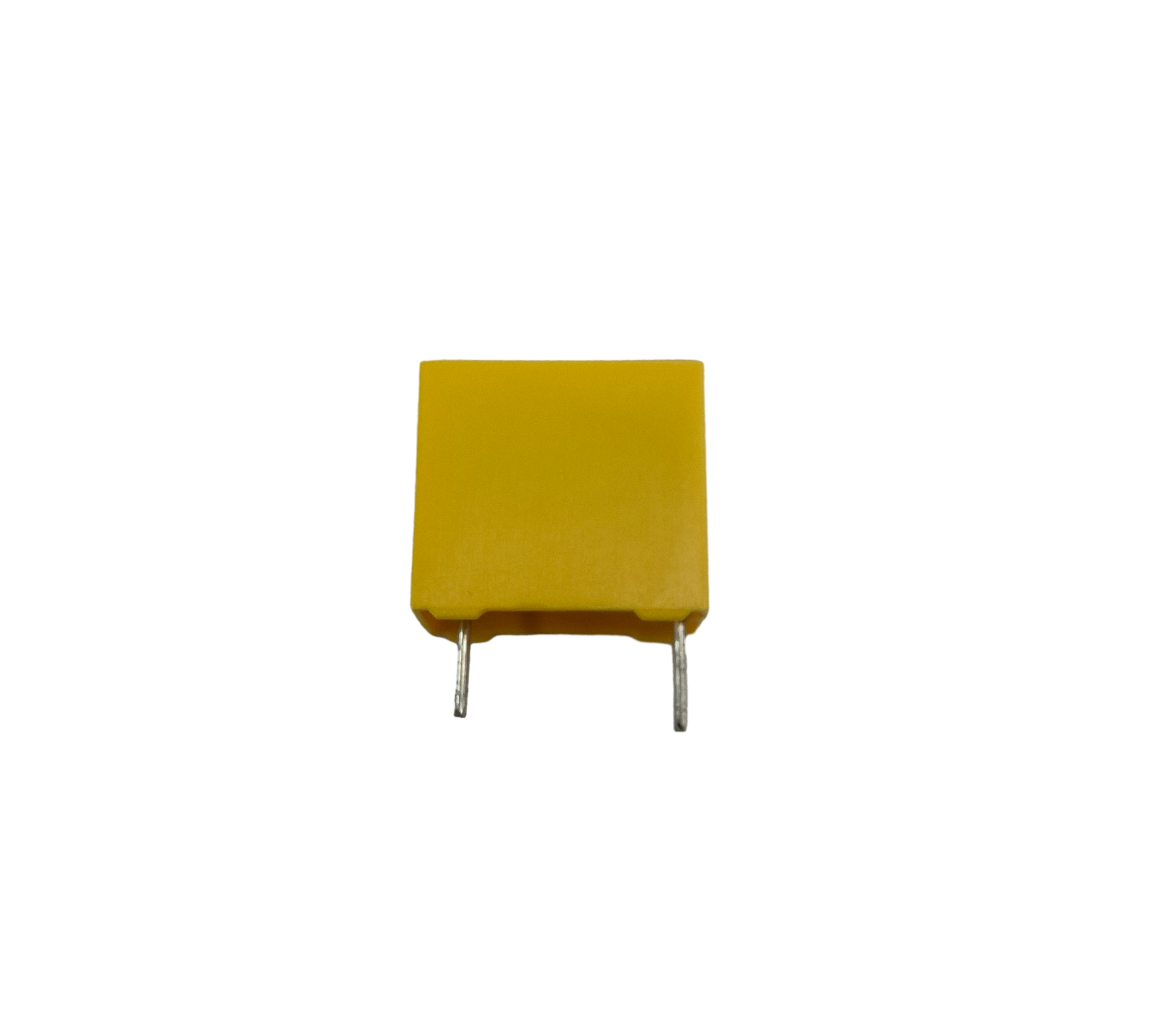

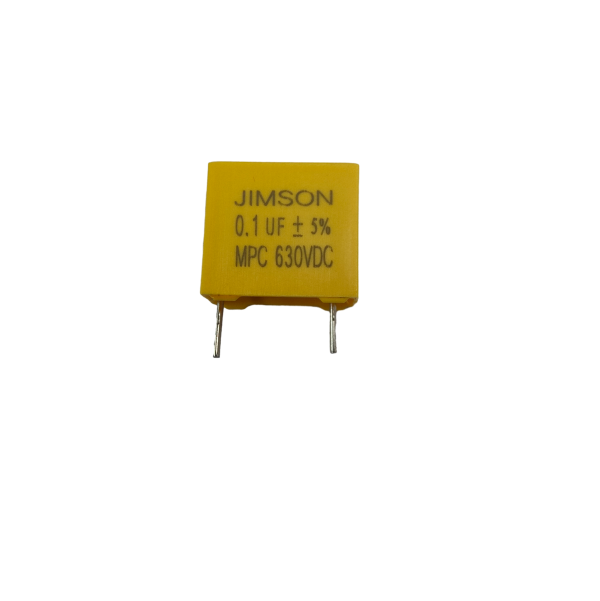

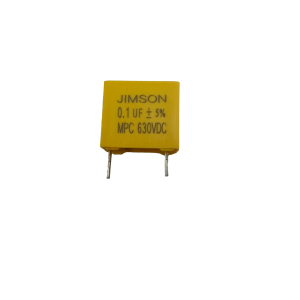

0.1uF 630VDC Encased CBB23 Capacitor

The 0.1uF 630VDC Metallized Polypropylene Film Capacitor stands as a testament to the precision and sophistication achieved in electronic component design. This comprehensive exploration has covered its capacitance and voltage ratings, construction specifics, applications across various industries, manufacturing intricacies, and considerations for reliability and performance. By unraveling the complexities of this capacitor, engineers, researchers, and enthusiasts gain a profound understanding of its capabilities and can make informed decisions in designing electronic systems that demand high performance, stability, and efficiency.

Categories Metallized Polypropylene Capacitors, Power capacitors

Product Description

0.1uF 630VDC Encased CBB23 Capacitor Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal or Aluminum foil
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Axial leads of tinned wire
Reference standard	IEC 384-16; GB 10190-1988
Climatic catalogue	40/85/21
Capacitance versus rated voltage (UR)	0.001 µF-2.2 µF/100VDC 0.001 µF-2.2 µF/250VDC 0.001 µF-2.2 µF/400VDC 0.001 µF-2.2 µF/630VDC
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	1.6*UR Unit:VDC (5s at 20°C)
Insulation resistance	C≤0.33µF, IR≥30000MΩ, C>0.33µF, IR*C≥5,000s (1 minute at 20°C and R≤65%)
Endurance	1000 hours with 125% of rated voltage at 85°C. After the test: ΔC/C ≤5%; ΔDF ≤0.40%, IR ≥50% of the specified value (20°C, 1kHz)

Applications of the 0.1uF 630VDC CBB23 Metallized Polypropylene Film Capacitor

1.Power Electronics

High voltage capacitors find extensive applications in power electronics, where they contribute to energy storage, voltage regulation, and filtering. And exploring how the 0.1uF 630VDC capacitor plays a crucial role in power supply circuits, inverters, and other applications where high voltage handling is imperative.

2.Coupling and Decoupling

Capacitors are often employed for signal coupling and decoupling in electronic circuits. And elaborating on how the 0.1uF capacitor facilitates the transfer of AC signals while blocking DC components, enhancing the efficiency and performance of amplifier circuits and other electronic systems.

3.Resonant Circuits

Resonant circuits leverage the energy storage and discharge capabilities of capacitors. And exploring how the 0.1uF 1200VDC capacitor contributes to the resonance phenomenon in circuits, allowing for precise frequency tuning in applications like radio frequency (RF) circuits and oscillators.

4.Manufacturing Process

A meticulous examination of the manufacturing process sheds light on the complexities involved in producing the 0.1uF 630VDC Metallized Polypropylene Film Capacitor. And providing insights into the materials used, film metallization techniques, winding processes, and quality control measures essential for ensuring consistent performance.

5.Temperature Stability

The temperature affects the performance of the capacitor, examining the role of polypropylene and metallization in maintaining stability across a range of operating temperatures.

6.Frequency Response

Capacitors exhibit varying behaviors at different frequencies. The 0.1uF 630VDC capacitor’s frequency response characteristics will be analyzed, emphasizing its suitability for applications with specific frequency requirements.
