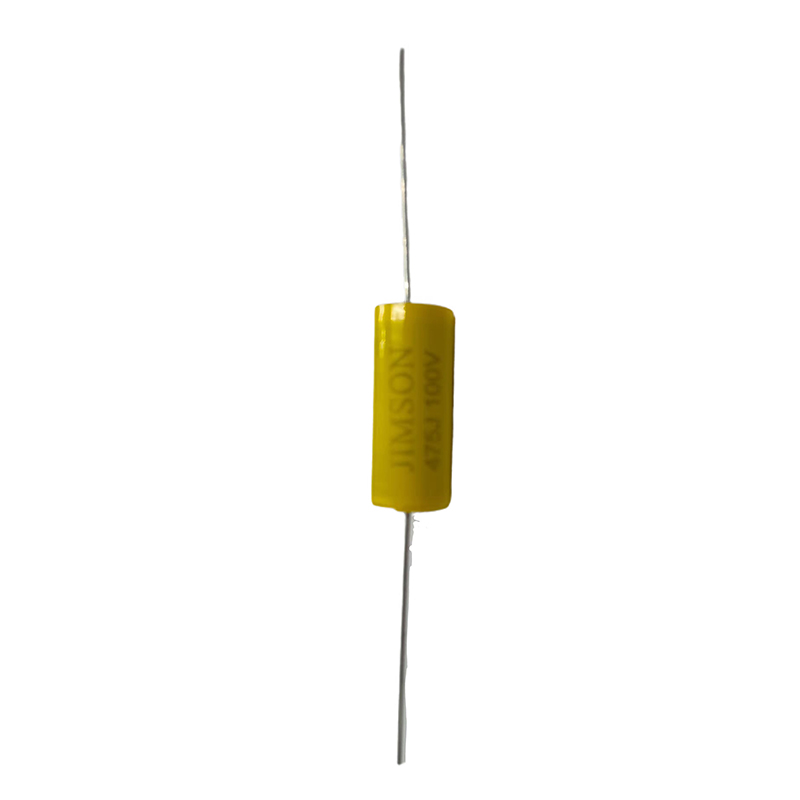

Tubular Metallized Polyester Film Capacitors

Feature of tubular metallized polyester film capacitors

Tubular metallized polyester film capacitorsare made of metallized polypropylene film as dielectric and electrode, covered with flame retardant tape and sealed with epoxy resin, which have excellent electrical performance, good reliability, high temperature resistance, small volume, large capacity and good self-healing performance.

Application of tubular metallized polyester film capacitors

1.Coupling decoupling by-passing and timing circuit

2. Automatic control systems, communication equipment

3. Charging/discharging, lighting, noise suppression and frequency modulation

Tubular metallized polyester film capacitors are widely used in the AC and DC circuits of instruments, meters and household appliances, and widely used in the crossover circuits of audio systems.

Specifications of tubular metallized polyester film capacitors

Dielectric: polyester film

Electrodes: vacuum evaporated metal

Coating: out wrapped with Mylar tape and ends sealed with epoxy resin

Leads: axial leads of tinned wire

Reference standards: IEC 384-2 grade 1, SJ/T10873-1996

FAQ

Q1: Are you trading company or manufacturer?
A1: We are the professional factory in China.Focus on high-end capacitor manufacturing

Q2: What is the material of your products?
A2: The material is metallized film for capacitors used Grade A+and imported from Germany.

Q3: How can us get some samples?
A3: We are honored to offer you samples. if you need!
