Polypropylene Film and Foil Capacitors

Film capacitors are classified into two primary groups, namely foil electrode types and vapor deposition electrode (metalized film) types, depending on how the internal electrode is made.Polypropylene is commonly used in the construction of capacitors for high-frequency AC applications. Polypropylene is commonly used in the construction of capacitors for high-frequency AC applications. Film capacitors are classified into two primary groups, namely foil electrode types and vapor deposition electrode types.

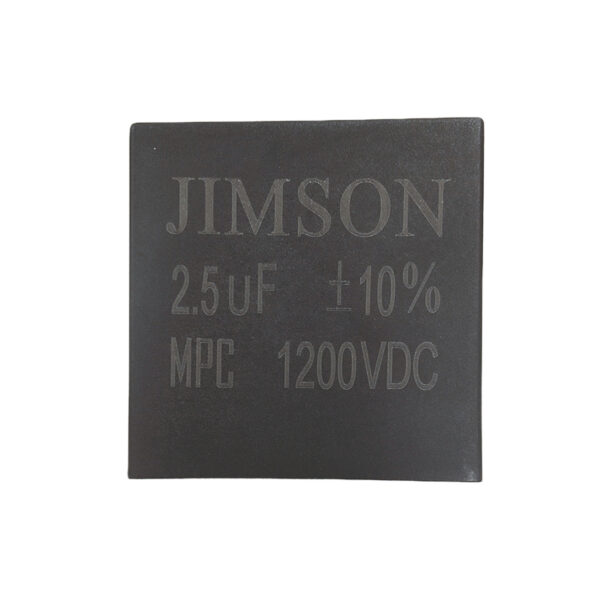

Category Film capacitors Related Products Polypropylene Film Capacitors,Metallized Polypropylene Film Capacitor Manufacturers,Encased Polypropylene Film Capacitors,Film Capacitors,CBB23 MPC255K1200VDC

Product Description

Film capacitors are classified into two primary groups, namely foil electrode types and vapor deposition electrode (metalized film) types, depending on how the internal electrode is made.

Polypropylene is commonly used in the construction of capacitors for high-frequency AC applications. This dielectric material has a low dissipation factor, high breakdown strength, low dielectric absorption, and high insulation resistance, and is readily available.

Specifications:

Reference Standard	IEC 60384-17, GB/T 14579
Climate category	40/105/21
Operation Temperature Range	-40~105 ºC
Rated Temperature	85ºC
Rated Voltage	630VDC,1000VDC/ 1250VDC,1600VDC,2000VDC
Capacitance Range	0.001~1.0μF
Capacitance Tolerance	+/- 5%(J) +/- 10%(K), +/-20%(M)(20C, 1kHz)
Voltage Proof	U=1.75Ur(20C, 5s)
Insulation Resistance	≥ 50000MΩ (20±5ºC,Vtest:500VDC,1min)
Dissipation Factor	≤0.0010(1kHz, 20ºC) ≤0.0020(10kHz,20ºC)
note:	The working voltage of the capacitor decreases as the temperture rises. Between 85~105 centigrade, take 85 centigrade as the base, the temperature rises 1 centigrade, the rated working voltage of the capacitor decreases 1.25%.

Application and Features:

High-voltage tolerance, low loss, high insurance resistance,heavy current and high-frequency.Suitable for direct current, impulse and other high-frequency circuits with high requirements.Flame retardant epoxy resin powder coating.

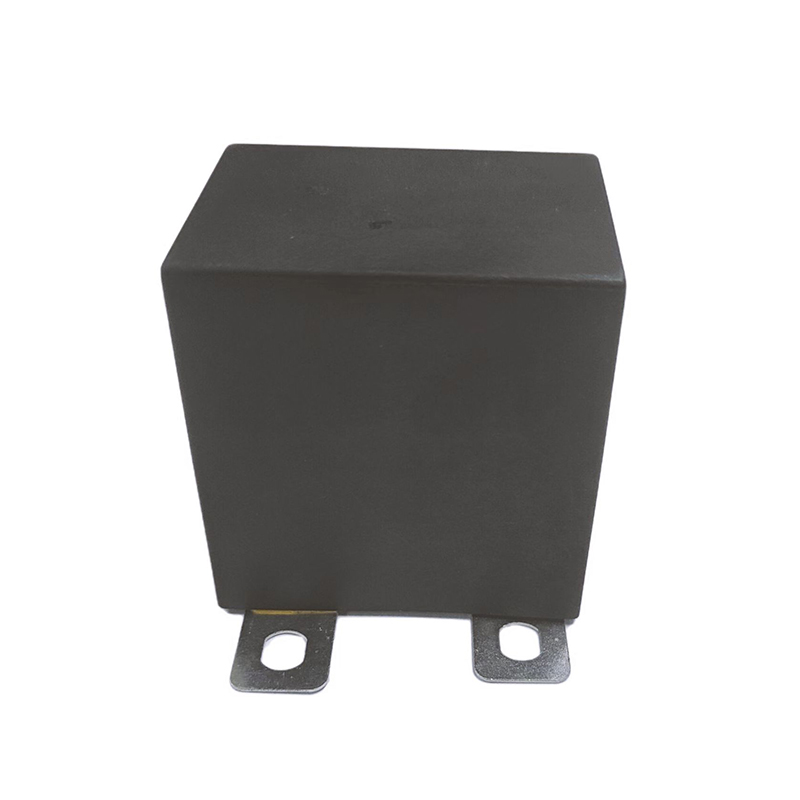

·metallized polypropylene film, Winding construction

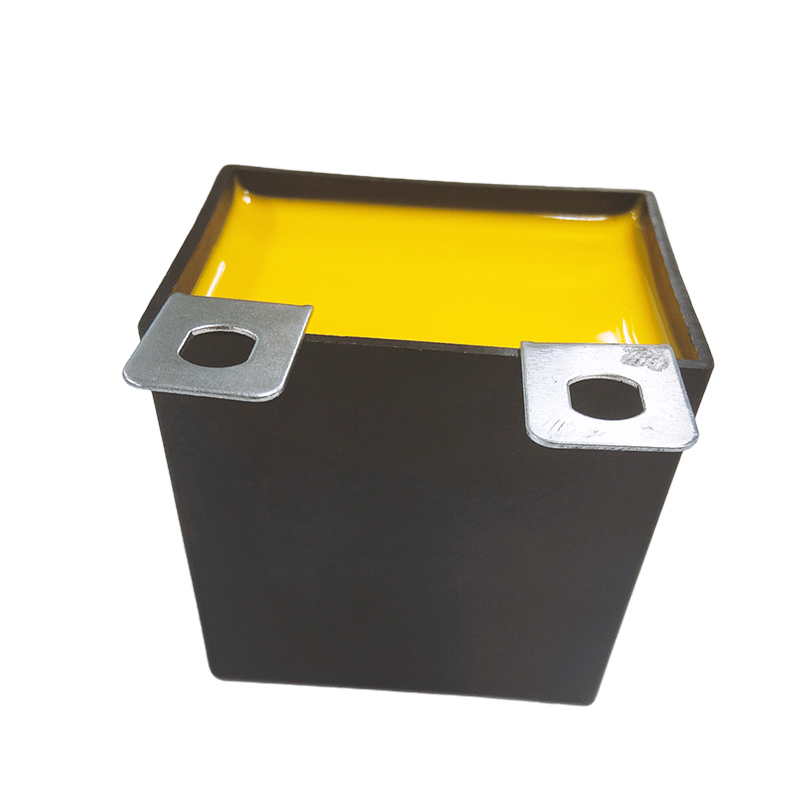

·Plastic case, Epoxy resin sealing
·Good Self-healing properties, withstanding surge voltage stressin;

FAQ

Question 1 : Are you a manufacturer or a trading company ?

Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.

Question 2 : How can I get some samples ?

Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.

Question 3 : Can your factory print my logo on the goods ?

Answer : Yes, we can print your own logo on the goods or the packing box.

Question 4 : What’s your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.

Question 5 : What’s your delivery time?
Answer : It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
