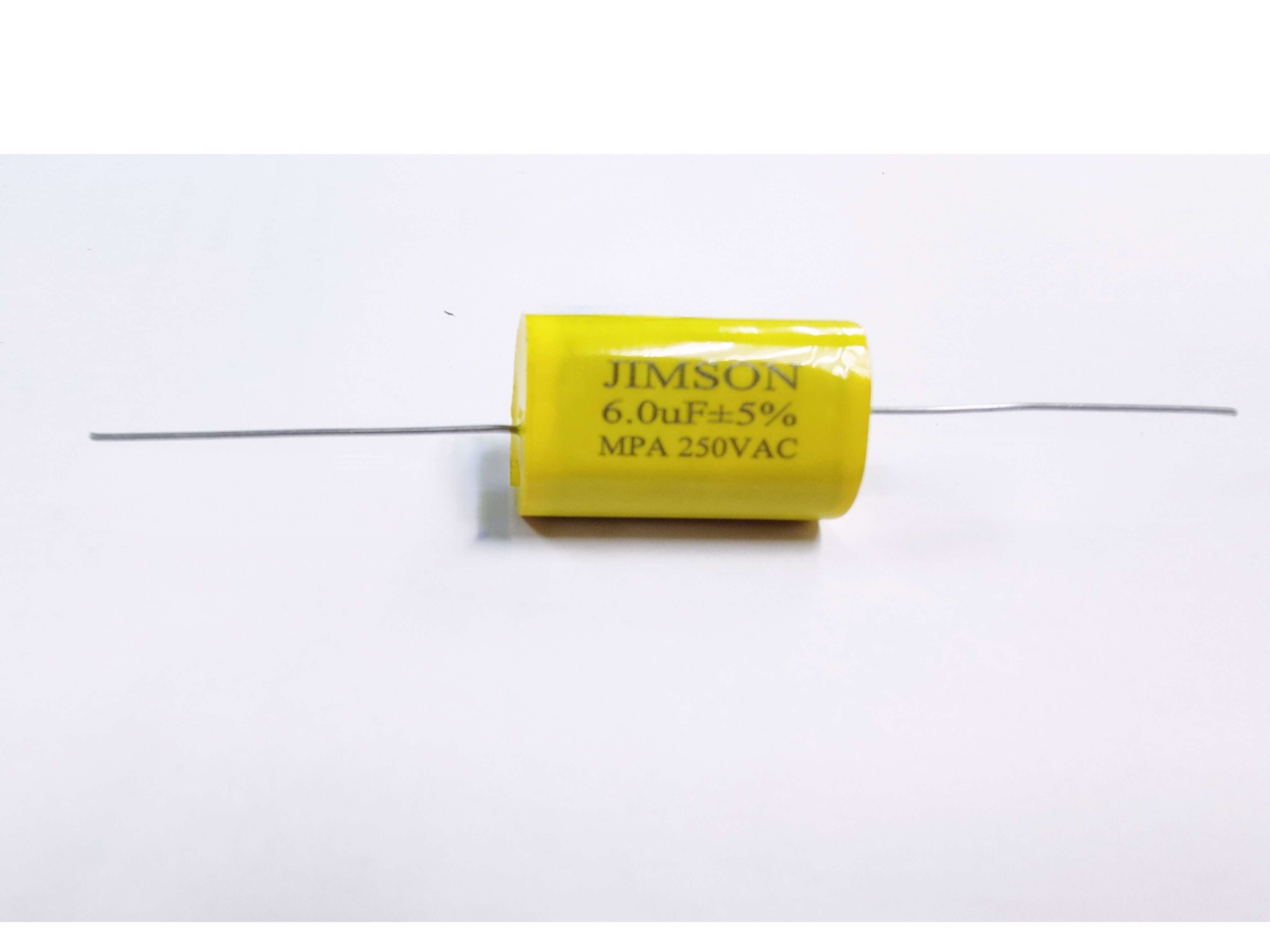

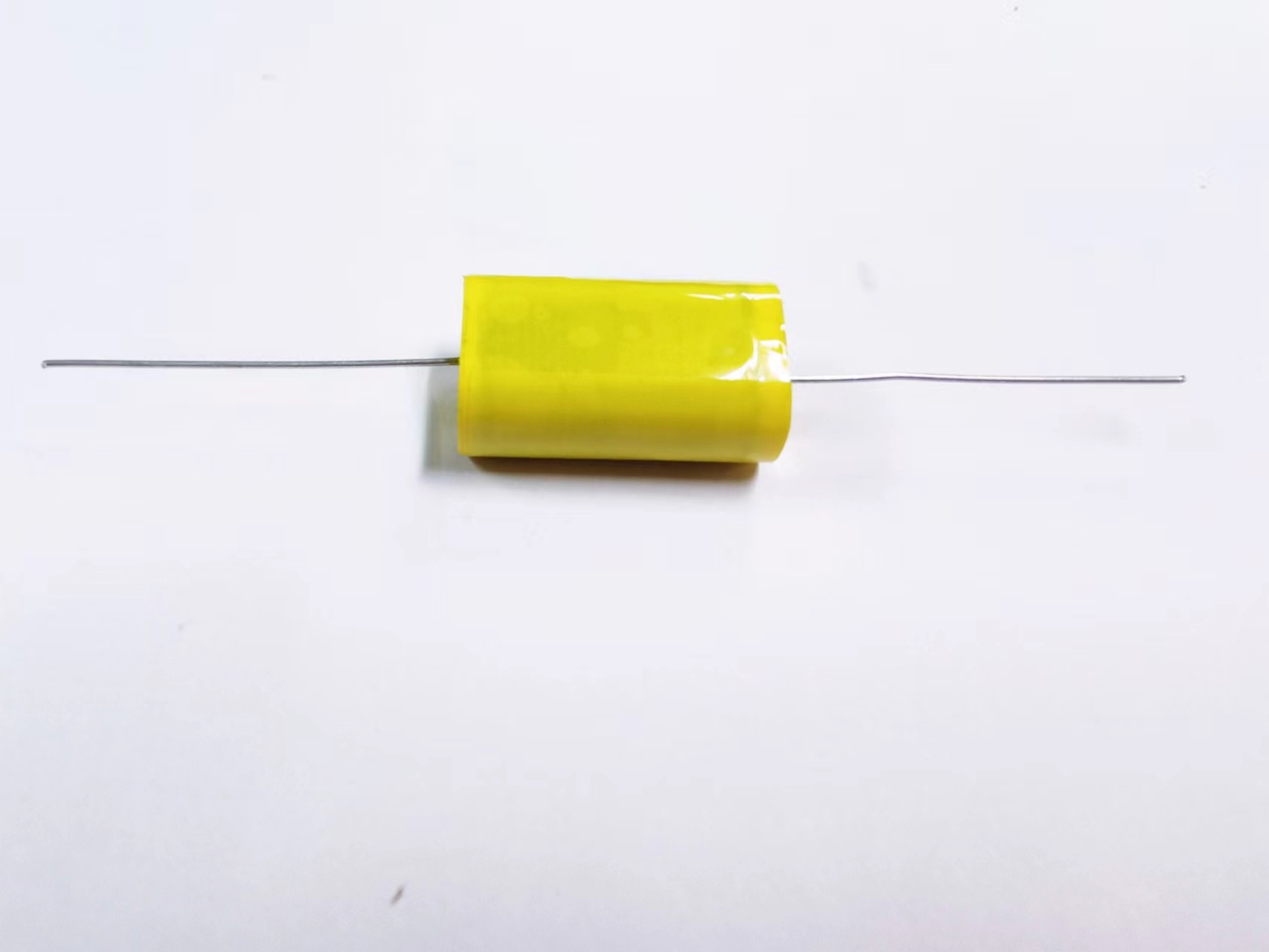

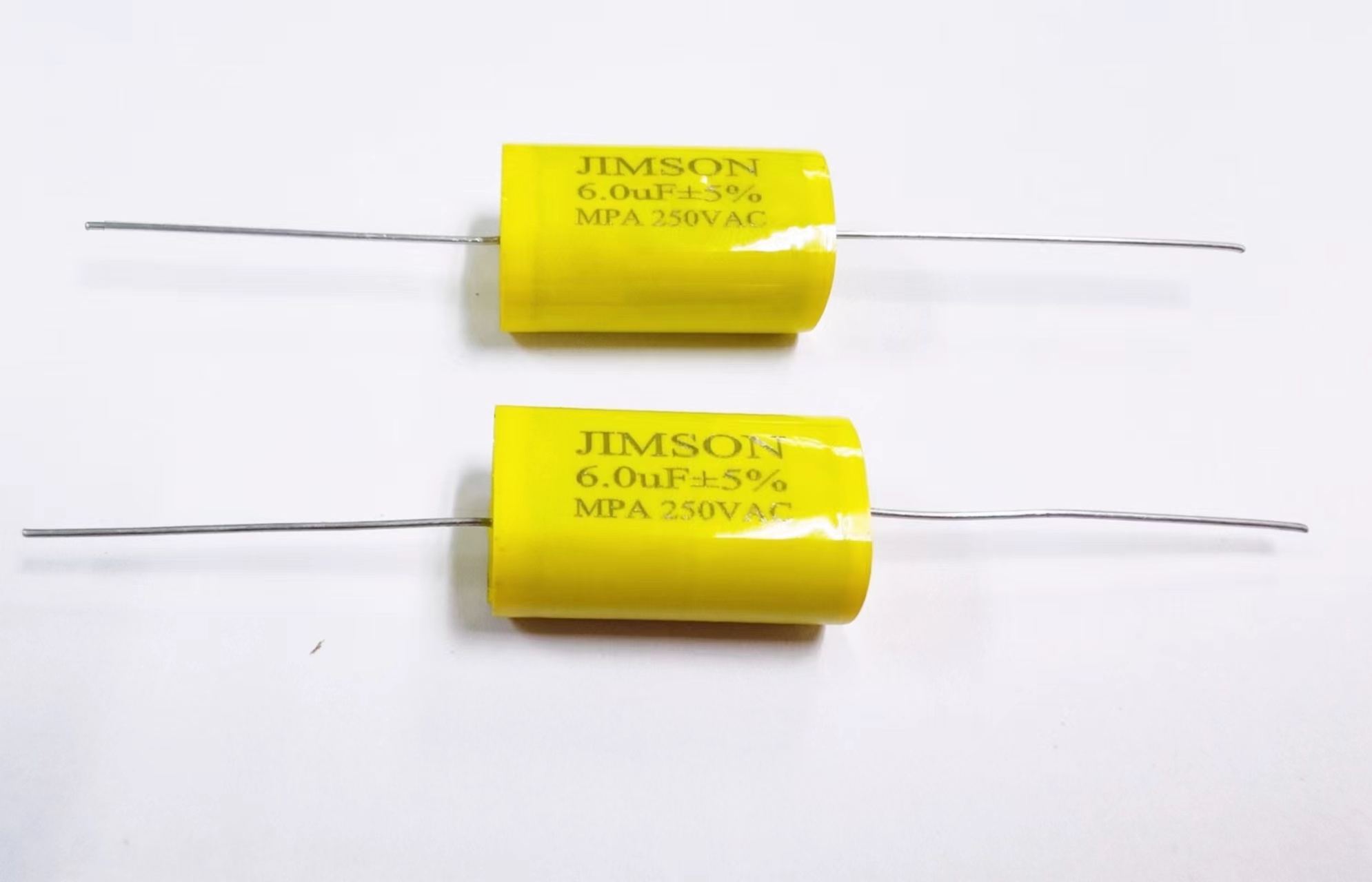

6.0uF Axial and Oval Film Capacitors

Construction and Working Principles

Axial and Oval Film Capacitors are constructed using high-quality materials to ensure optimal performance and longevity. The dielectric film used in these capacitors is typically made of polypropylene (PP) or polyester (PET). PP film capacitors offer excellent self-healing properties, making them suitable for applications with high voltage and current stress.

On the other hand, PET film capacitors provide high capacitance stability and are often used in audio and filtering circuits.
The working principle of Axial and Oval Film Capacitors is based on the storage of electrical energy in the dielectric film. When a voltage is applied across the capacitor, the electric field is established between the metal electrodes. This field causes the electrons in the dielectric film to align, creating a potential difference. The energy is stored in the form of an electric field, and the capacitance value determines the amount of energy that can be stored.

Applications of Axial and Oval Film Capacitors

Axial and Oval Film Capacitors find applications in a wide range of electronic devices and systems.

Some common applications include:

1. Power Supplies:

Axial and Oval Film capacitors are used in power supply circuits to smooth out voltage fluctuations.

2. Motor Run Capacitors:

Axial and Oval Film capacitors are commonly used in motor run applications, providing the necessary phase shift and improving motor efficiency.

3. Audio Systems:

Axial and Oval Film capacitors are utilized in audio circuits for coupling, filtering, and decoupling purposes, ensuring high-quality sound reproduction.
4. Lighting Systems:

Axial and Oval Film capacitors are employed in lighting systems to improve power factor correction, reduce harmonic distortion, and enhance overall energy efficiency.

Selecting the Right Axial and Oval Film Capacitors

When choosing the Axial and Oval Film Capacitors for your projects, it is essential to consider certain factors:

1. Capacitance Value:

Determine the required capacitance value based on the specific application and circuit requirements.
2. Voltage Rating:

Choose Axial and Oval Film Capacitors with voltage ratings that exceed the maximum voltage expected in the circuit to ensure reliable operation.
3. Temperature Range:

Consider the operating temperature range of the application and select capacitors that can withstand the temperature extremes.
4. Size and Mounting Options:

Consider the available space and mounting options in your circuit board or system to choose capacitors that fit properly.
