The MKP224K275V capacitor’s exceptional performance in EMI suppression and high-frequency filtering makes it an indispensable component in the realm of home appliances. Its versatility in various applications, from switching power supplies to kitchen electronics, underscores its vital role in enhancing product reliability and user experience. As technology advances, the MKP224K275V capacitor continues to pave the way for more efficient and stable electronic devices, solidifying its position as a cornerstone in the evolution of home appliance design.

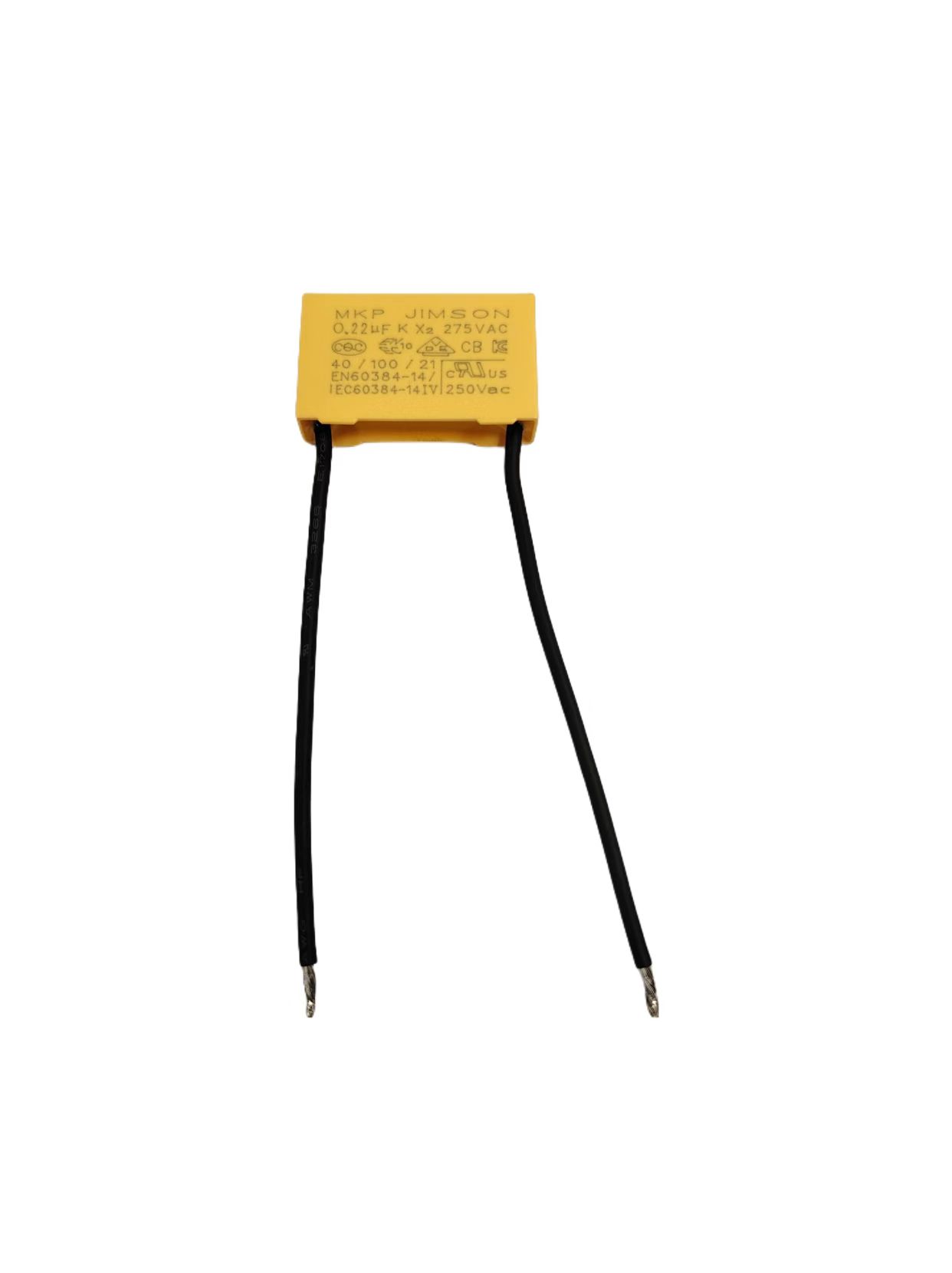

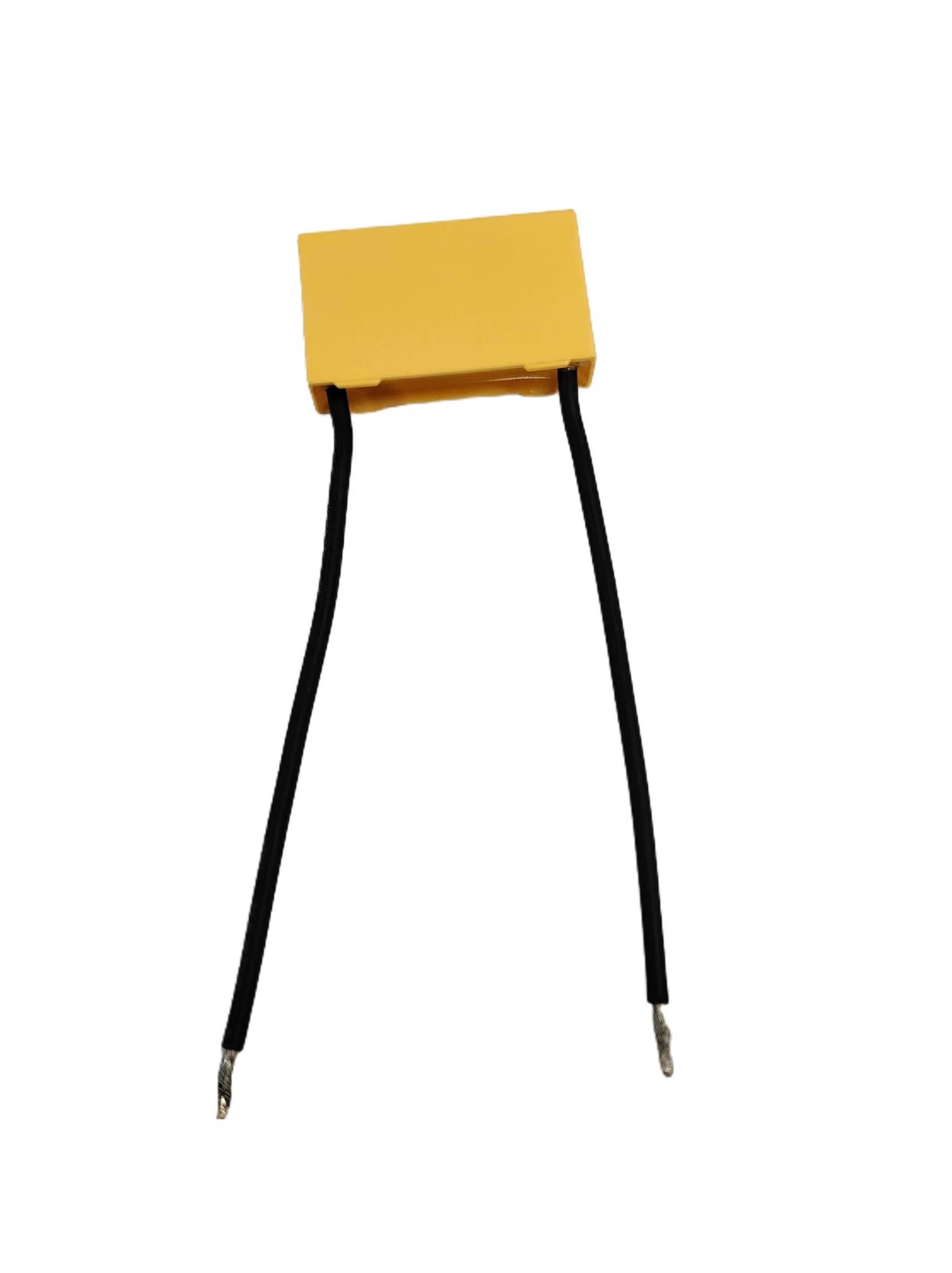

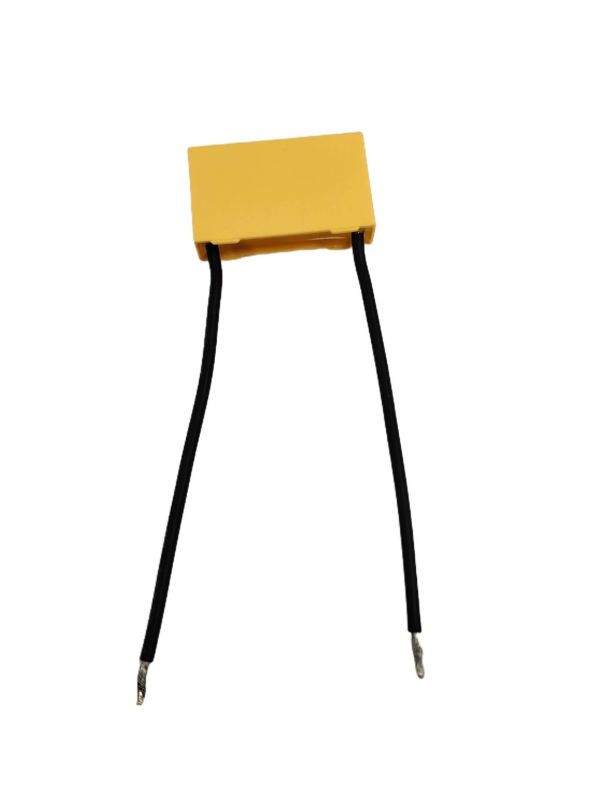

The MKP224K275V capacitor, a metallized polypropylene film capacitor, is a common X2 safety class anti-interference capacitor. The “224K” indicates a capacitance of 0.22μF, while “275V” signifies its rated voltage of 275V. This capacitor is characterized by its small size, light weight, stable capacitance, and excellent high-frequency performance, making it particularly suitable for applications requiring electromagnetic interference (EMI) suppression and high-frequency filtering.
The MKP224K275V capacitor utilizes metallized polypropylene film as the dielectric, with metal layers on both ends serving as electrodes, connected to the external circuit via leads or solder tabs. Its compact internal structure offers a high dielectric constant and low loss, maintaining stable capacitive characteristics at high frequencies.
Capacitance Range: 0.22μF, suitable for various circuit requirements.
Rated Voltage: 275V, meeting the high-voltage demands of home appliance products.
Temperature Resistance: Typically features a high-temperature rating, operating normally within a range of -40℃ to 105℃.
EMI Suppression Capability: Compliant with X2 safety standards, effectively suppressing electromagnetic interference.
The working principle of the MKP224K275V capacitor is based on its unique dielectric material and structural design. When voltage is applied across the capacitor’s terminals, the charges within the metallized polypropylene film dielectric redistribute under the influence of the electric field, forming an electric field that stores electrical energy and releases it when needed.
During charging, the current provided by the power source redistributes the charges within the metallized polypropylene film dielectric through the capacitor’s leads or solder tabs, forming an electric field. The charging process ends when the voltage across the capacitor reaches the power source voltage. During discharging, the capacitor releases the stored electrical energy, causing changes in the current within the circuit.
The MKP224K275V capacitor excels in interference suppression, thanks to the characteristics of its metallized polypropylene film dielectric. This dielectric has a high dielectric constant and low loss, maintaining stable capacitance at high frequencies. When electromagnetic interference is present in the circuit, the capacitor can quickly absorb and release these interference signals, protecting other components in the circuit from interference.
The MKP224K275V capacitor, with its outstanding interference suppression capabilities and high reliability, is widely used in home appliances. Here are detailed applications in several typical home appliance products.
Switching power supplies are common power supply units in home appliances. The MKP224K275V capacitor is mainly used for filtering and interference suppression in switching power supplies. By absorbing and releasing high-frequency interference signals, it protects other components in the power circuit from interference, ensuring the stability and reliability of the power supply.
Application Example: In the switching power supplies of home appliances such as TVs and computer monitors, the MKP224K275V capacitor is typically installed in filtering circuits and interference suppression circuits to suppress the impact of high-frequency interference signals on the power circuit.
Inverter appliances, such as inverter air conditioners and refrigerators, adjust the motor speed to change cooling or heating effects. The MKP224K275V capacitor is mainly used for filtering and interference suppression in inverter appliances. It can absorb and release high-frequency interference signals in the inverter circuit, protecting other components in the circuit from interference, ensuring the stability and reliability of inverter appliances.
Application Example: In inverter air conditioners, the MKP224K275V capacitor is typically installed in filtering circuits and interference suppression circuits of the inverter circuit to suppress the impact of high-frequency interference signals on the inverter circuit.
Washing machines and dryers are commonly used home appliances. The MKP224K275V capacitor is mainly used for motor startup and filtering in these products. By providing stable capacitance characteristics, it ensures the smoothness and reliability of motor startup and suppresses high-frequency interference signals during motor operation.
Application Example: In washing machines, the MKP224K275V capacitor is typically installed in motor startup circuits and filtering circuits to ensure the smoothness and reliability of motor startup.
Kitchen appliances, such as microwave ovens and induction cookers, generate a large amount of high-frequency interference signals during operation. These interference signals not only affect the normal operation of the appliance itself but may also interfere with the home electrical grid and other appliance devices. Therefore, the application of the MKP224K275V capacitor in kitchen appliances is particularly important. The role of the MKP224K275V capacitor in improving the electromagnetic compatibility of kitchen appliances is to suppress high-frequency interference signals.
The MKP224K275V capacitor has excellent high-frequency suppression capabilities and can effectively suppress high-frequency interference signals in power and signal lines. In kitchen appliances, these high-frequency interference signals may interfere with the normal operation of the appliance and even cause failures. The application of the MKP224K275V capacitor can significantly reduce the impact of these interference signals, improving the stability and reliability of the appliance.
Kitchen appliances may inject high-frequency interference signals into the power grid during operation, affecting the normal operation of other devices. The MKP224K275V capacitor can effectively suppress the injection of these interference signals, protecting the power grid from interference and ensuring the normal operation of other devices.
With the development of the home appliance industry and the increasing demands from consumers for electromagnetic compatibility of appliances, electromagnetic compatibility testing has become an important inspection item that home appliance products must pass. The application of the MKP224K275V capacitor can significantly improve the electromagnetic compatibility test pass rate of kitchen appliances, ensuring that the products meet relevant standards and regulatory requirements.
