The MKP104K310V capacitor, as a high-performance safety capacitor, has excellent capabilities in suppressing surge voltages and is widely used in power switching circuits, lighting circuits, and communication equipment circuits. By optimizing the design methods such as reasonably selecting capacitance and voltage rating, optimizing the layout and connection method of the capacitor, and strengthening the heat dissipation measures of the capacitor, the ability of the MKP104K310V capacitor to suppress surge voltages can be further improved, providing strong protection for the stability and reliability of electronic devices.

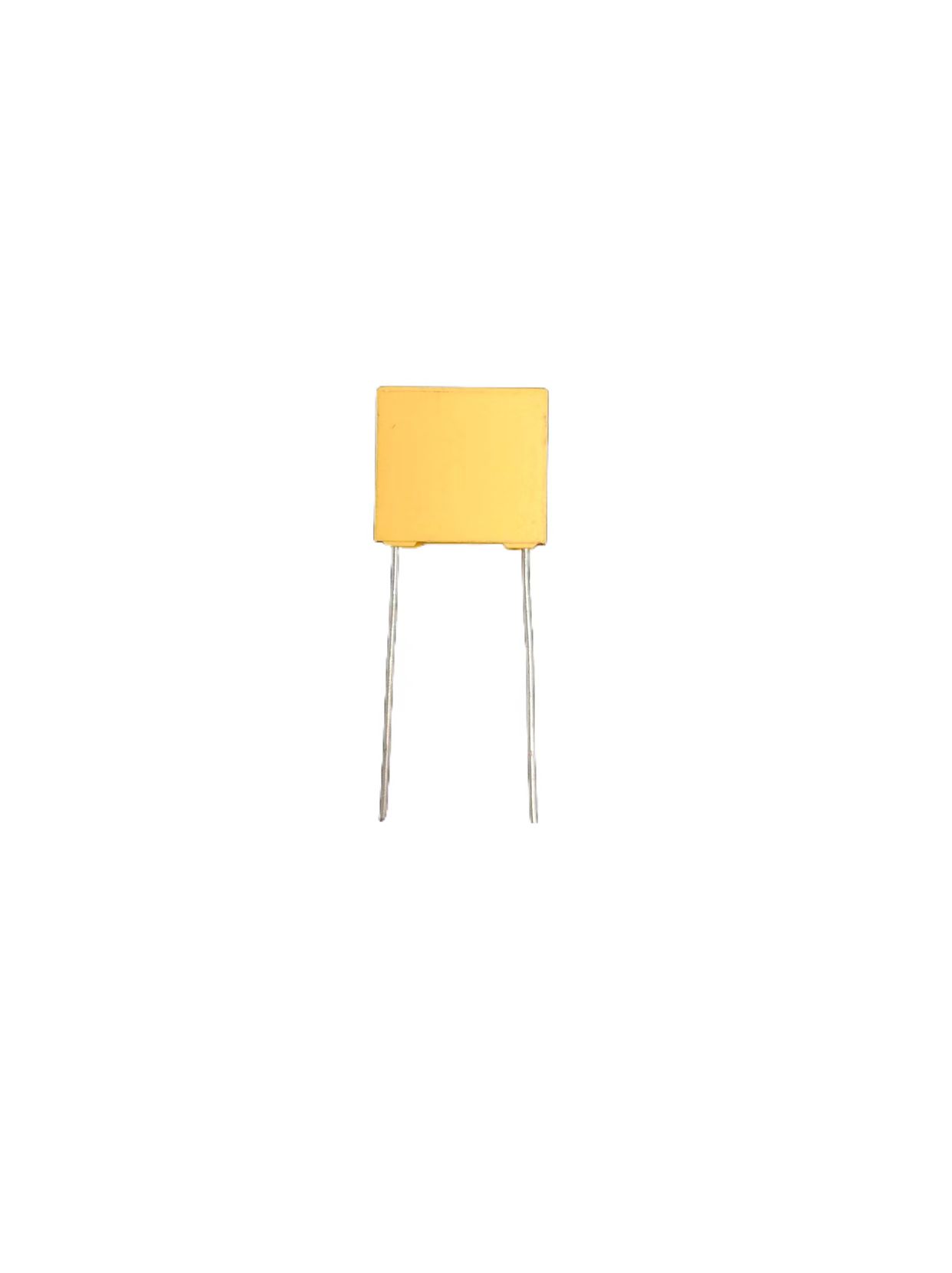

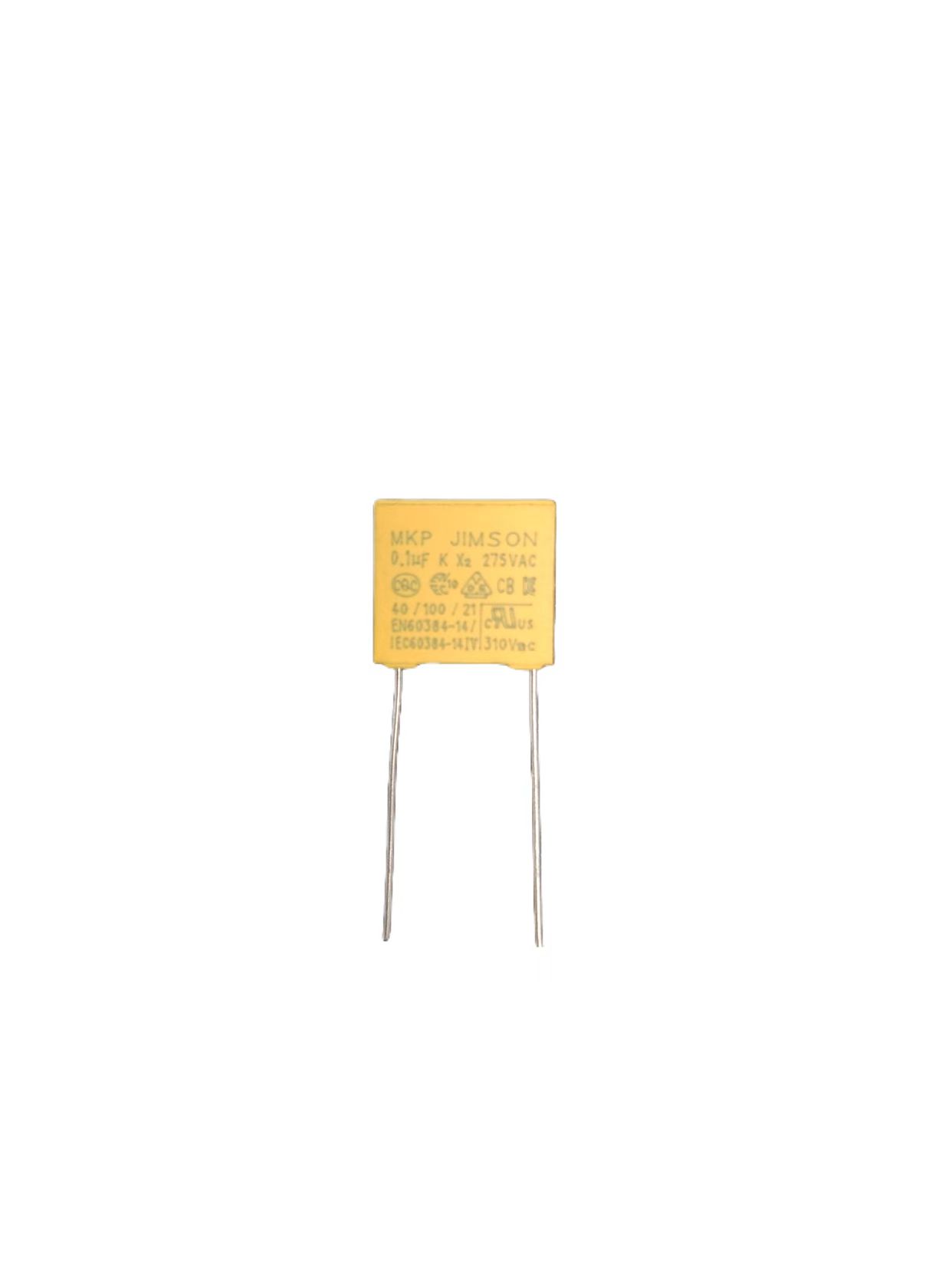

The MKP104K310V capacitor is a metallized polypropylene film capacitor with the following basic characteristics:
Low High-Frequency Loss: The MKP104K310V capacitor uses metallized polypropylene film as the dielectric, which has excellent high-frequency characteristics, allowing the capacitor to maintain a high capacitance value with minimal loss at high frequencies.
High Current Bearing: Due to the high dielectric constant and low loss of metallized polypropylene film, the MKP104K310V capacitor can withstand large currents without easily heating up or getting damaged.
High Insulation Resistance: The electrodes of the MKP104K310V capacitor are wound without induction and sealed with epoxy resin, providing high insulation resistance to prevent leakage and dielectric breakdown over extended periods of operation.
Good Self-Healing Properties: Metallized polypropylene film capacitors can quickly recover their insulating properties in the event of a local breakdown, preventing further damage to the capacitor.
Long Lifespan: Made with high-quality materials and manufacturing processes, the MKP104K310V capacitor has a long service life that meets the requirements of various harsh environments.
Surge voltage refers to sudden transient high voltages that appear in power circuits, which can damage other components in the circuit. The MKP104K310V capacitor, as a high-performance safety capacitor, has excellent capabilities in suppressing surge voltages. Its working principle is as follows:
Energy Storage: The MKP104K310V capacitor serves as an energy storage device in the circuit. When a surge voltage occurs in the power circuit, the capacitor can quickly absorb and store this energy, thereby reducing the rate and magnitude of the surge voltage increase.
Discharge Action: When the surge voltage disappears, the MKP104K310V capacitor can quickly release the stored energy, restoring the circuit to its normal operating state. This discharge action prevents the capacitor from accumulating excessive energy over time, which could lead to damage or overheating.
Filtering Action: The MKP104K310V capacitor also acts as a filter in the circuit, capable of filtering out high-frequency noise and interference in the power circuit, improving the stability and reliability of the circuit.
The MKP104K310V capacitor has a wide range of applications in suppressing surge voltages, with some typical examples including:
Power Switching Circuits: In power switching circuits, the MKP104K310V capacitor is used as a cross-line capacitor to suppress surge voltages generated when the power is switched on or off. The transient currents and voltage changes that occur can impact other components in the circuit. The MKP104K310V capacitor can quickly absorb and store this transient energy, reducing the rate and magnitude of the surge voltage, protecting other components in the circuit from damage.
Lighting Circuits: In LED lighting and other illumination devices, the MKP104K310V capacitor is used as a filtering capacitor to suppress high-frequency noise and interference in the power grid.电网中的高频噪声和杂波会对灯具电路产生干扰和影响，导致灯具闪烁和不稳定。MKP104K310V电容器能够滤除这些高频噪声和杂波，提高灯具的稳定性和可靠性。
Communication Equipment Circuits: In communication equipment circuits, the MKP104K310V capacitor is used as a protective capacitor to suppress surge voltages. Circuits in communication equipment are often subject to various external interferences and shocks, such as lightning and static electricity, which can generate large transient voltages and current changes, damaging other components in the circuit. The MKP104K310V capacitor can quickly absorb and store this transient energy, protecting other components in the circuit from damage.
To further enhance the ability of the MKP104K310V capacitor to suppress surge voltages, the following optimization designs can be considered:
Selecting the appropriate capacitance and voltage rating: Based on the specific requirements and working environment of the circuit, select the appropriate capacitance and voltage rating to ensure the capacitor can withstand the maximum transient voltage and current changes in the circuit.
Optimizing the layout and connection method of the capacitor: In circuit design, layout and connect the MKP104K310V capacitor reasonably to reduce the parasitic inductance and capacitance between the capacitor and other components in the circuit, improving the filtering effect and surge suppression capability of the capacitor.
Strengthening the heat dissipation measures of the capacitor: During extended operation, the MKP104K310V capacitor may generate some heat. To reduce the temperature of the capacitor, heat dissipation measures can be taken, such as adding heat sinks and using materials with good thermal conductivity.
