MKP 0.33UF K 275V: High-efficiency Noise Reduction and Interference Suppression

The stability and purity of power sources are crucial to the overall performance of a system. Noise and electromagnetic interference (EMI) are significant factors affecting power quality, potentially reducing system efficiency and damaging critical electronic components, such as Insulated Gate Bipolar Transistors (IGBTs). MKP (Metallized Polypropylene Film) capacitors, known for their superior electrical characteristics and broad application range, play a vital role in power line noise reduction and interference suppression.

I. Basic Characteristics of MKP Capacitors

1.1 Definition and Structure of MKP Capacitors MKP capacitors, fully named “Metallized Polypropylene Film Capacitors,” utilize metallized polypropylene film as the dielectric. The electrode material is directly vacuum-deposited onto the film surface, forming an extremely thin metal layer. This process significantly enhances the capacitor’s voltage withstand capability and frequency response characteristics. MKP capacitors feature low lead loss, low internal temperature rise, negative temperature coefficient of capacitance, and excellent flame retardant properties, making them widely used in high-voltage high-frequency pulse circuits, lighting circuits, and electromagnetic heating systems in devices like induction cookers.

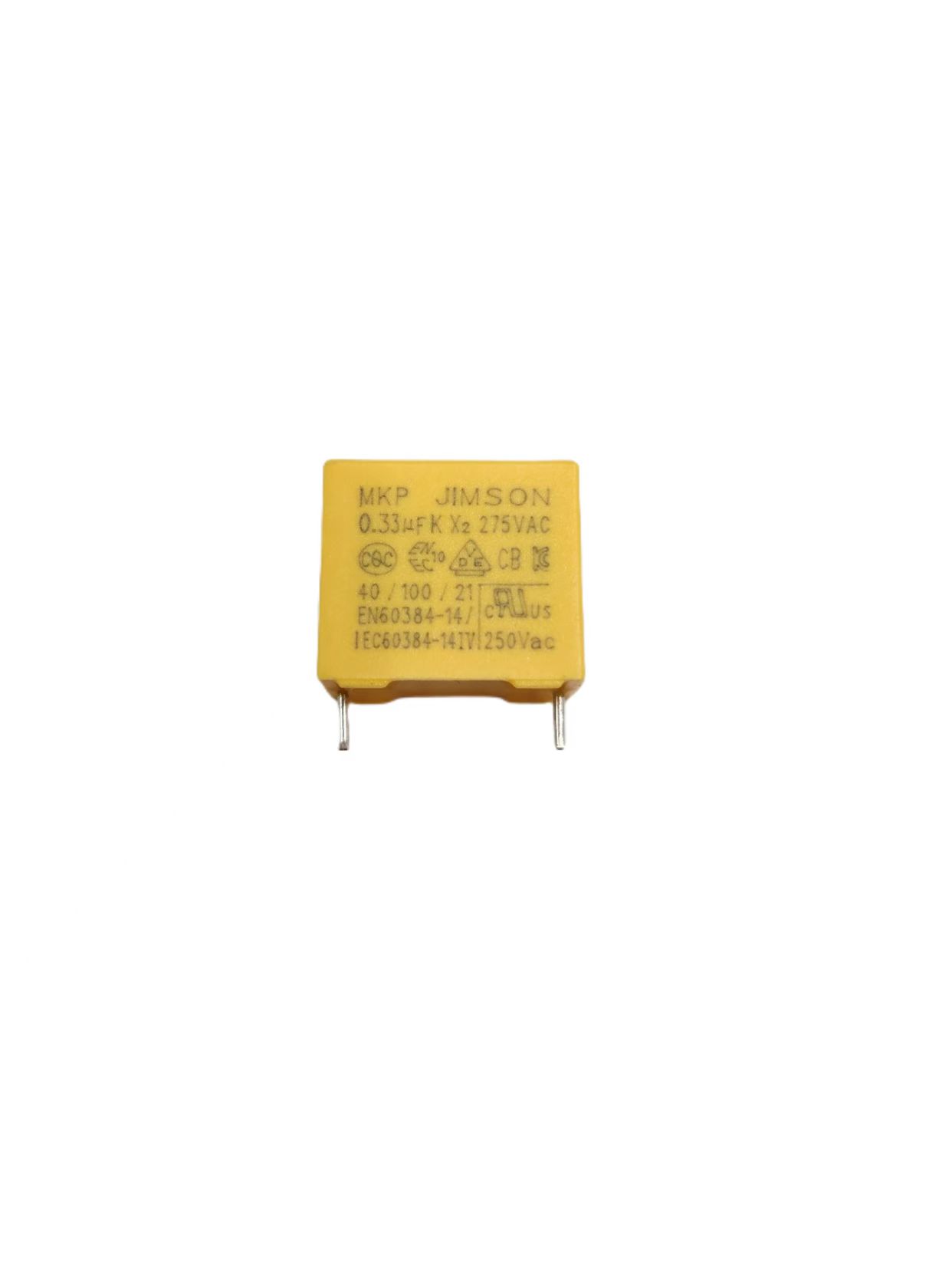

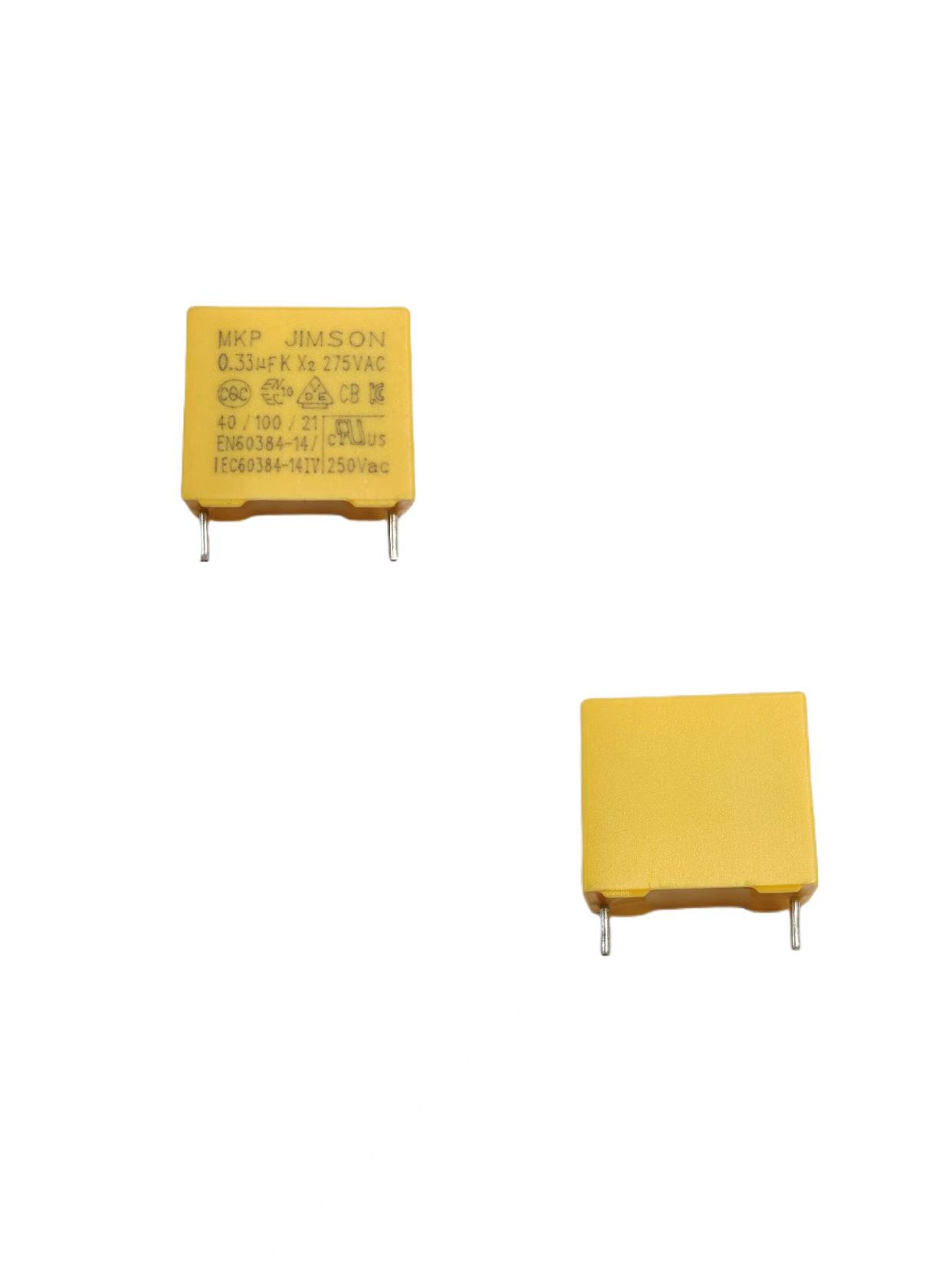

1.2 Electrical Performance Parameters The specific parameters of the MKP 0.33UF K 275V capacitor include a nominal capacitance of 0.33uF and a rated voltage of 275V AC. These parameters determine the basic working capacity of the capacitor in a circuit. The nominal capacitance indicates the capacitor’s ability to store electrical charge, while the rated voltage determines the maximum voltage the capacitor can withstand. Additionally, MKP capacitors have low Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL), which are crucial for noise suppression and interference suppression in high-frequency circuits.

https://www.film-capacitors.com/Products/suppression-capacitors/mkp-0-33uf-k-275…ence-suppression/ ‎

II. Application of MKP Capacitors in Power Line Noise Reduction

2.1 Sources and Classification of Noise In electronic systems, noise primarily originates from power lines, switching of components, radiation and coupling of high-frequency signals, etc. Noise can be classified into various types, including white noise, pulse noise, and electromagnetic noise. These can affect signal quality and pose threats to system stability and reliability.

2.2 Noise Reduction Mechanism of MKP Capacitors The application of MKP capacitors in power line noise reduction is based on their excellent frequency response and impedance characteristics. The impedance of a capacitor decreases with increasing frequency, allowing MKP capacitors to provide a lower impedance path in the high-frequency noise range, bypassing noise signals to the ground and achieving noise reduction.

2.3 Practical Application Examples In the power circuits of electromagnetic heating devices like induction cookers, MKP capacitors are often used as cross-line capacitors, installed at the power input end to suppress common mode and differential mode noise from the power grid. For instance, the MKP 0.33UF K 275V capacitor can be combined with other filtering components (such as inductors) to form a Pi-type filter, effectively removing high-frequency noise from the power lines and improving the device’s electromagnetic compatibility (EMC).

III. Role of MKP Capacitors in Interference Suppression

3.1 Sources and Impact of Electromagnetic Interference (EMI) Electromagnetic interference refers to the adverse effects of electromagnetic energy in the field on systems, equipment, or transmission channels. In electronic systems, EMI mainly comes from high-speed switching components (like IGBTs), power lines, and high-frequency signal lines. EMI can affect normal system operation and cause interference to other electronic devices, potentially leading to faults.

3.2 Interference Suppression Mechanism of MKP Capacitors The role of MKP capacitors in interference suppression is mainly reflected in two aspects: suppressing EMI generated within the device from spreading to the power grid through power lines, affecting other devices; and preventing EMI from the power grid from entering the device through power lines, affecting normal operation. With their low ESR and ESL characteristics, MKP capacitors can provide a lower impedance path in the high-frequency range, short-circuiting EMI signals at the capacitor terminals, thus effectively suppressing them.

3.3 Specific Application Examples In the inverter circuit of an induction cooker, MKP capacitors are often used as resonant capacitors and filtering capacitors in the resonant circuit. The resonant capacitor forms an LC resonant circuit with the inductor coil, converting DC energy into high-frequency AC energy for the heating element. In this process, MKP capacitors not only participate in power transmission but also suppress high-frequency harmonics and spike voltages in the resonant circuit with their low impedance characteristics, protecting key components like IGBTs from damage.

IV. Selection and Usage Precautions of MKP Capacitors

4.1 Selection Principles When selecting MKP capacitors for power line noise reduction and interference suppression, consider various factors, including the capacitor’s nominal capacitance, rated voltage, ESR, ESL, and environmental conditions such as temperature and humidity. Generally, the nominal capacitance and rated voltage should meet the actual circuit requirements with some margin to ensure reliable operation. Also, prioritize capacitor models with lower ESR and ESL to enhance noise reduction and interference suppression effects.

4.2 Usage Precautions When using MKP capacitors, pay attention to the following points:

• Correct Installation: Ensure the capacitor is installed according to design requirements, avoiding mechanical vibration and impact.
• Adequate Heat Dissipation: Capacitors generate heat during operation; ensure good heat dissipation to prevent performance degradation or damage due to overheating.
• Voltage Matching: The capacitor’s rated voltage should be greater than or equal to the actual working voltage in the circuit to prevent damage from overvoltage.
• Frequency Characteristics: Consider the frequency characteristics of the capacitor and how well they match the circuit requirements to ensure effective noise reduction and interference suppression at high frequencies.
