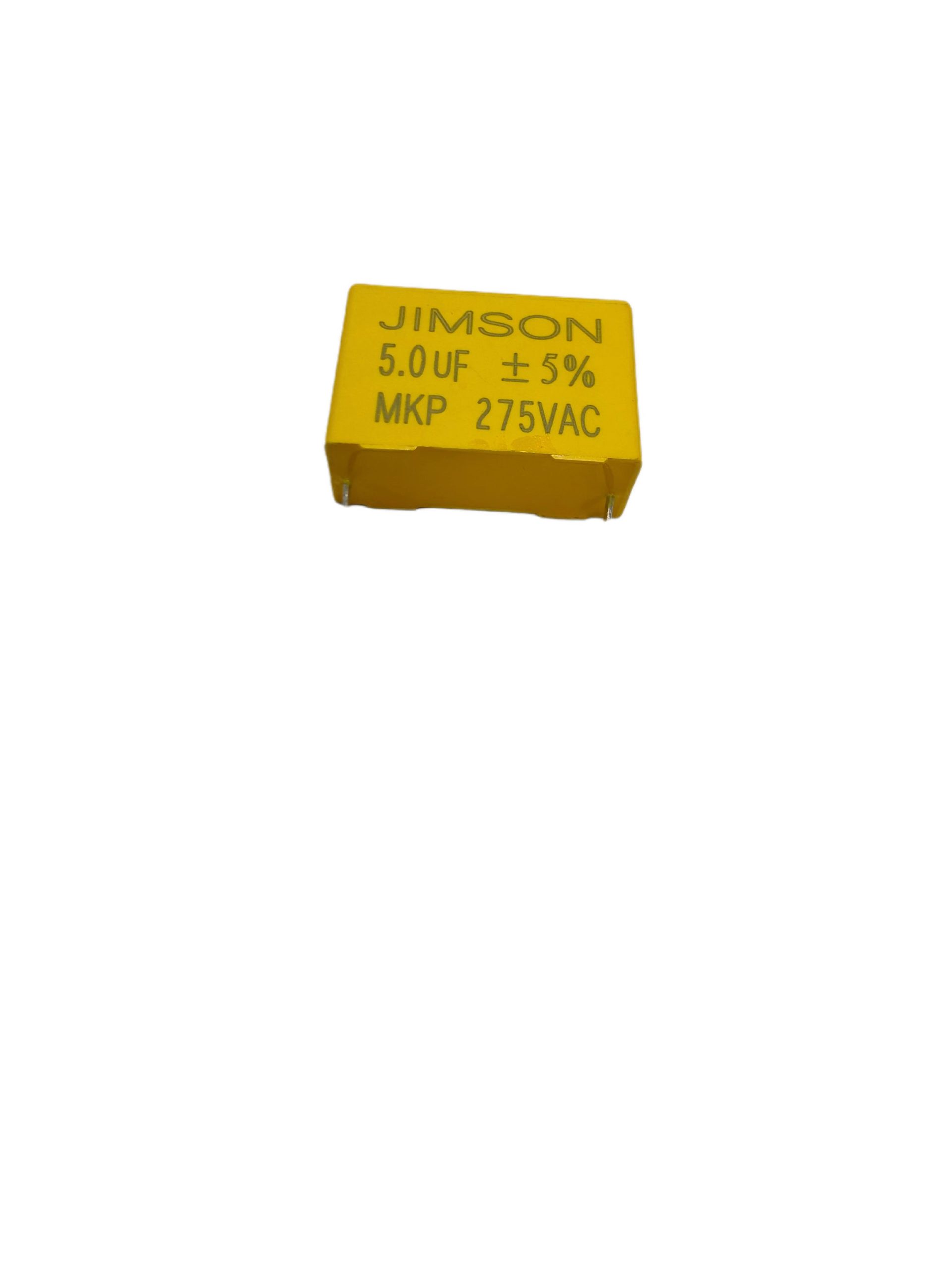

5.0uF Suppression X2 Capacitor

The X2 capacitors undergo rigorous testing and certification to meet safety standards, such as the UL/IEC 60384-14 standard for X2 capacitors used in AC mains applications. Compliance with these standards ensures the capacitor’s reliability and electrical safety.The 5.0uF Suppression X2 Capacitor plays a vital role in ensuring EMI suppression and electrical safety in massage chairs. By attenuating high-frequency noise and providing isolation against voltage transients, this capacitor contributes to the reliable and efficient operation of massage chair electronics. About its specific features, for example: capacitance, voltage rating, and temperature stability, the capacitor meets the demands of AC mains applications

Categories Suppression capacitors, Film capacitors, Metallized Polypropylene Capacitors, Polypropylene capacitors

Product Description

5.0uF Suppression X2 Capacitor Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Radial leads of tinned wire/ insulation flexible wire
Reference standard	IEC 60384-14 (3nd Edition,2005) UL1414,UL1283, GB/T 14472-1998,EN60384-14
Climatic catalogue	40/100/21 (GMF)
Capacitance versus rated voltage (UR)	0.001µF-2.2µF/275VAC (50/60Hz) 0.001µF-5.0µF/310VAC (50/60Hz), (UL)
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	4.3*UR Unit VDC (1minute at 20℃ )
Insulation resistance	C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)
Endurance:	The test voltage 125% shall be applied for 1000 hours in the 100 ℃ chamber.Each of these voltage shall be applied to each capacitor individually through a resistor of 47Ω±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test： △ C/C ≤ 10%; IR ≥ 50% of the specified value; △ DF ≤ 0.8%(C ≤ 1µF); △ DF ≤ 0.5%(C ＞ 1µF); (at 20 ℃ 1KHz)

Electromagnetic interference (EMI) refers to the unwanted disturbance caused by electromagnetic radiation or electromagnetic induction that interferes with the proper functioning of electrical and electronic devices. EMI can result in malfunctions, noise generation, and even safety hazards. EMI suppression aims to reduce or eliminate these disturbances to ensure the reliable operation of electronic equipment.

5.0uF Suppression X2 Capacitor play a crucial role in EMI suppression. By acting as low-pass filters, they attenuate high-frequency noise and prevent its propagation to sensitive components. 5.0uF Suppression X2 Capacitors are specifically designed for AC main applications, offering high voltage and high-frequency performance.

The Features of the 5.0uF Suppression X2 Capacitor

The 5.0uF Suppression X2 Capacitor is engineered to meet stringent safety standards and provide effective EMI suppression in massage chairs. There are Some key features of the 5.0uF suppression X2 capacitor as below:

1.Capacitance

The 5.0uF rating indicates the amount of charge the capacitor can store per volt of applied voltage. This value is carefully chosen based on the specific requirements of the massage chair’s electrical system.

2.Voltage Rating

X2 Capacitors typically have a high voltage rating to withstand the voltage fluctuations and transients present in the AC mains supply. The voltage rating ensures the capacitor’s safe and reliable operation under varying conditions.

3.Temperature Stability

The suppression X2 Capacitor is designed to maintain its capacitance and performance over a wide temperature range. This ensures consistent EMI suppression and reliable operation even in demanding environmental conditions.

Applications in Massage Chairs

Massage chairs incorporate various electronic components and motors that generate electrical noise and potential EMI. The 5.0uF suppression X2 Capacitor finds several critical applications within massage chairs:

1.EMI Suppression

The 5.0uF suppression X2 capacitor is strategically placed in the electrical circuitry of the massage chair to suppress EMI generated by the motors, switches, and other electronic components. It can provide a low-impedance path for high-frequency noise, preventing its propagation to sensitive parts and reducing the risk of interference.

2.Electrical Safety

Massage chairs often operate on AC mains power, making safety a paramount concern. The 5.0uF X2 Capacitor, with its high voltage rating and compliance with safety standards, ensures electrical safety by providing reliable isolation and protection against voltage transients.

3.Reliability and Performance

The 5.0uF suppression X2 capacitor’s stable capacitance and temperature characteristics contribute to the overall reliability and performance of the massage chair. 5.0uF suppression X2 capacitor can help maintain the integrity of the electrical system, minimizing the risk of malfunctions and ensuring consistent operation.

4.Compliance with Regulatory Standards

Massage chairs must conform to strict regulatory standards for electrical safety and electromagnetic compatibility (EMC). The integration of the 5.0uF suppression X2 Capacitor aids in meeting these requirements, ensuring compliance and facilitating market access.

5.Component Protection

The 5.0uF suppression X2 capacitor also acts as a buffer, protecting sensitive electronic components from voltage spikes and transients. By absorbing and dissipating excess energy, it safeguards the integrity and longevity of the massage chair’s electrical system.
