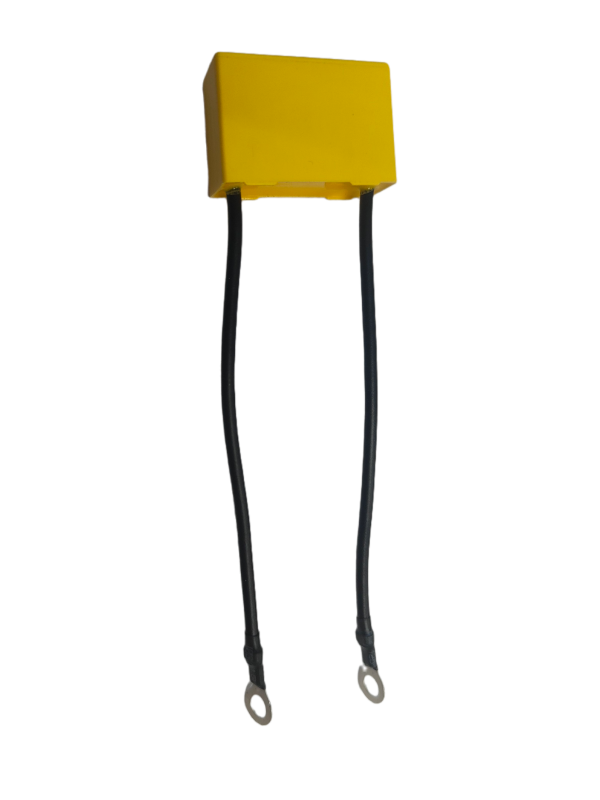

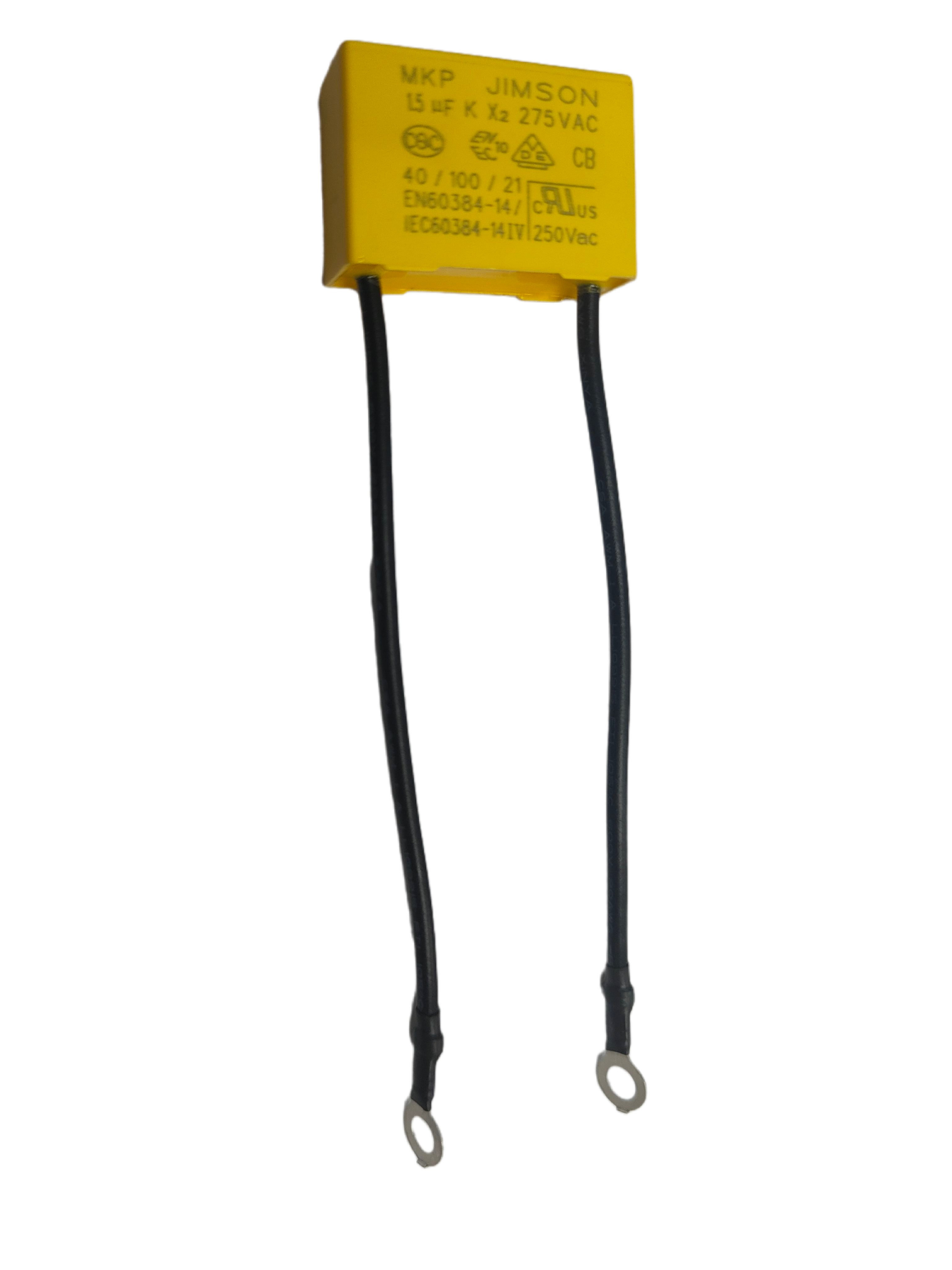

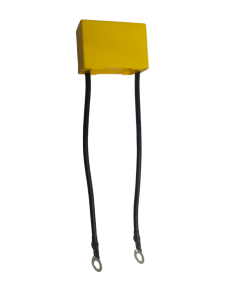

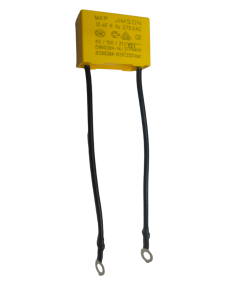

1.5uF X2 Capacitor with Insulation Flexible Wire

The 1.5uF X2 Capacitor with Insulation Flexible Wire emerges as a remarkable engineering feat, combining capacitance, safety, and flexibility in a single component. There are some introducations, for example exploration has covered its capacitance and voltage ratings, integration of insulation flexible wire, applications across industries, manufacturing intricacies, and considerations for performance and reliability. By unraveling the complexities of this capacitor, engineers and researchers gain a profound understanding of its capabilities, enabling them to make informed decisions in designing electronic systems that demand safety, flexibility, and optimal performance.

Category Suppression capacitors

Product Description

1.5uF X2 Capacitor with Insulation Flexible Wire Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Radial leads of tinned wire/ insulation flexible wire
Reference standard	IEC 60384-14 (3nd Edition,2005) UL1414,UL1283, GB/T 14472-1998,EN60384-14
Climatic catalogue	40/100/21 (GMF)
Capacitance versus rated voltage (UR)	0.001µF-2.2µF/275VAC (50/60Hz) 0.001µF-4.7µF/310VAC (50/60Hz), (UL)
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	4.3*UR Unit VDC (1minute at 20℃ )
Insulation resistance	C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)
Endurance:	The test voltage 125% shall be applied for 1000 hours in the 100 ℃ chamber.Each of these voltage shall be applied to each capacitor individually through a resistor of 47Ω±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test： △ C/C ≤ 10%; IR ≥ 50% of the specified value; △ DF ≤ 0.8%(C ≤ 1µF); △ DF ≤ 0.5%(C ＞ 1µF); (at 20 ℃ 1KHz)

In the intricate landscape of electronic components, the 1.5uF X2 Capacitor with Insulation Flexible Wire emerges as a vital player, bridging the realms of capacitance, safety, and flexibility.

Before delving into the specifics of the 1.5uF X2 Capacitor with Insulation Flexible Wire, it’s essential to establish a solid understanding of capacitors. Capacitors, fundamental to electronic circuits, store and release electrical energy. They consist of two conductive plates separated by a dielectric material. The capacitance, measured in farads (F), dictates the amount of charge a capacitor can store. In this context, the 1.5uF designation signifies a capacitance value of 1.5 microfarads.

The 1.5uF X2 Capacitor with Insulation Flexible Wire capacitors play a pivotal role in ensuring the safety of electronic devices. There are some insights into the safety standards associated with X2 capacitors and how they are designed to withstand high-voltage surges, making them crucial in applications where user safety is paramount.

The 1.5uF X2 Capacitor with Insulation Flexible Wire capacitors find widespread use in consumer electronics where safety and reliability are paramount.

The 1.5uF X2 Capacitor with Insulation Flexible Wire capacitors have some specific applications in devices such as power supplies, home appliances, and audio equipment, showcasing how the 1.5uF X2 Capacitor with Insulation Flexible Wire plays a crucial role.

The integration of insulation flexible wire adds an intriguing layer to the capacitor’s design, which contributes to the capacitor’s overall flexibility and versatility.
