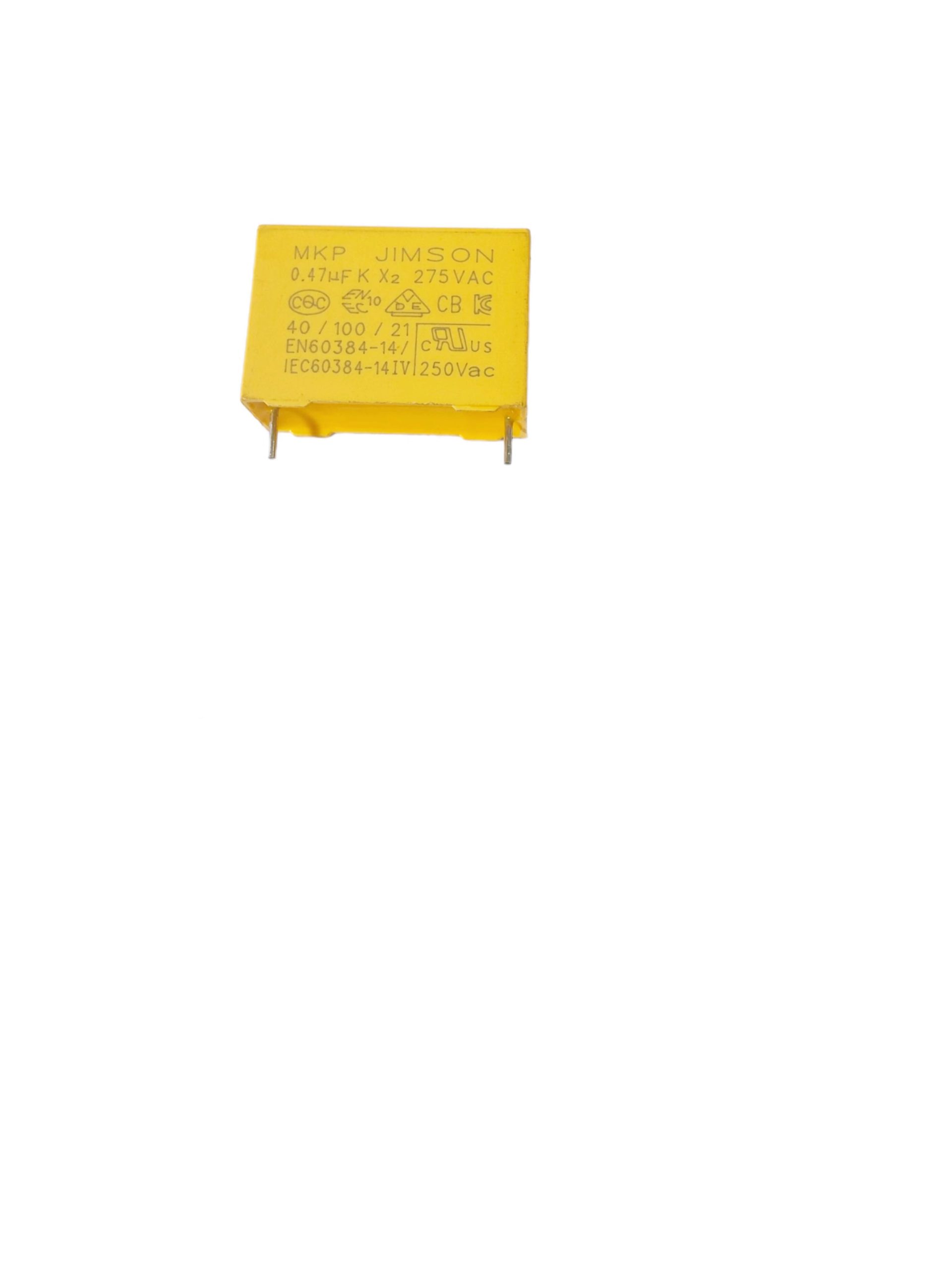

0.47uF X2 Capacitor for Electric Generator

The 0.47uF X2 Capacitor is a crucial component in electric generator systems, enhancing their electrical performance, stability, and safety. The 0.47uF X2 Capacitor plays a vital role in voltage regulation, maintaining a stable output voltage by compensating for reactive power, reducing voltage fluctuations, and improving power factor correction. The 0.47uF X2 Capacitor also effectively suppresses electrical noise and interference, filtering out high-frequency harmonics for a clean and stable power output. The 0.47uF X2 Capacitor also provides surge protection, absorbing transient voltage spikes and surges to prevent damage to downstream electrical components. This feature safeguards the system from voltage-related failures and ensures reliable operation during voltage fluctuations. In a world, the 0.47uF X2 Capacitor is a vital component in electric generator systems.

Category Suppression capacitors

Product Description

0.47uF X2 Capacitor for Electric Generator Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Radial leads of tinned wire/ insulation flexible wire
Reference standard	IEC 60384-14 (3nd Edition,2005) UL1414,UL1283, GB/T 14472-1998,EN60384-14
Climatic catalogue	40/100/21 (GMF)
Capacitance versus rated voltage (UR)	0.001µF-2.2µF/275VAC (50/60Hz) 0.001µF-4.7µF/310VAC (50/60Hz), (UL)
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	4.3*UR Unit VDC (1minute at 20℃ )
Insulation resistance	C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)
Endurance:	The test voltage 125% shall be applied for 1000 hours in the 100 ℃ chamber.Each of these voltage shall be applied to each capacitor individually through a resistor of 47Ω±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test： △ C/C ≤ 10%; IR ≥ 50% of the specified value; △ DF ≤ 0.8%(C ≤ 1µF); △ DF ≤ 0.5%(C ＞ 1µF); (at 20 ℃ 1KHz)

The advantages of 0.47uF X2 Capacitor

1.Safety Compliance

The 0.47uF X2 Capacitor meets stringent safety standards, including the X2 classification. This ensures that the X2 capacitor is suitable for use in applications where a high level of safety is required. The 0.47uF X2 capacitor provides excellent protection against electrical shock, overvoltage, and transient voltage spikes, ensuring safe and reliable operation of electric generators.

2.Reliable Performance

This X2 capacitor offers reliable performance, ensuring stable and consistent operation of electric generators. X2 Capacitor provides accurate capacitance and low dissipation factor, minimizing energy losses and improving overall efficiency. The reliable performance contributes to the longevity and durability of electric generator systems.

3.Self-Healing Technology

The 0.47uF X2 Capacitor incorporates self-healing technology. In the event of localized breakdown or voltage surge, the capacitor repairs itself, maintaining its electrical integrity and preventing catastrophic failure. This enhances the operational reliability and lifespan of the capacitor in demanding generator applications.

The features of 0.47uF X2 Capacitor

1.Capacitance Value

The 0.47uF X2 Capacitor offers a capacitance value of 0.47 microfarads (uF). This value is specifically selected to meet the requirements of electric generator systems, ensuring optimal performance and stability.

2.X2 Classification

The capacitor is classified as X2, indicating its high level of safety compliance. It is designed to withstand continuous operating voltages up to 275V AC, making it suitable for use in electric generators that operate within this voltage range.

3.High Voltage Endurance

The 0.47uF X2 Capacitor exhibits excellent voltage endurance. It can withstand high voltage levels and transient voltage spikes commonly encountered in electric generator systems. This feature ensures reliable operation and protection against electrical stress.

4.Low Dissipation Factor

The 0.47uF X2 capacitor features a low dissipation factor, indicating minimal energy losses during operation. This translates to improved power efficiency and reduced heat generation, contributing to the overall effectiveness and performance of the electric generator system.

The application of 0.47uF X2 Capacitor in Electric Generator

1.Electric Generator Systems

The 0.47uF X2 Capacitor is specifically designed for use in electric generator systems. It is suitable for applications such as power generation, backup power supplies, and standby generator systems. The capacitor enhances the electrical performance, stability, and safety of these systems.

2.Voltage Regulation

The 0.47uF X2 Capacitor plays a vital role in voltage regulation within electric generator systems. X2 capacitor helps maintain a stable output voltage by compensating for reactive power, reducing voltage fluctuations, and improving power factor correction. The X2 capacitor ensures reliable and consistent power supply to connected electrical loads.

3.Noise Suppression

The 0.47uF X2 Capacitor effectively suppresses electrical noise and interference within electric generator systems. It filters out high-frequency harmonics, ensuring clean and stable power output. This feature is particularly important for sensitive electronic equipment that requires a noise-free power supply.

4.Surge Protection

The X2 capacitor provides surge protection to electric generator systems. It absorbs transient voltage spikes and surges, preventing them from damaging downstream electrical components. This feature safeguards the system from voltage-related failures and ensures reliable operation during voltage fluctuations.
