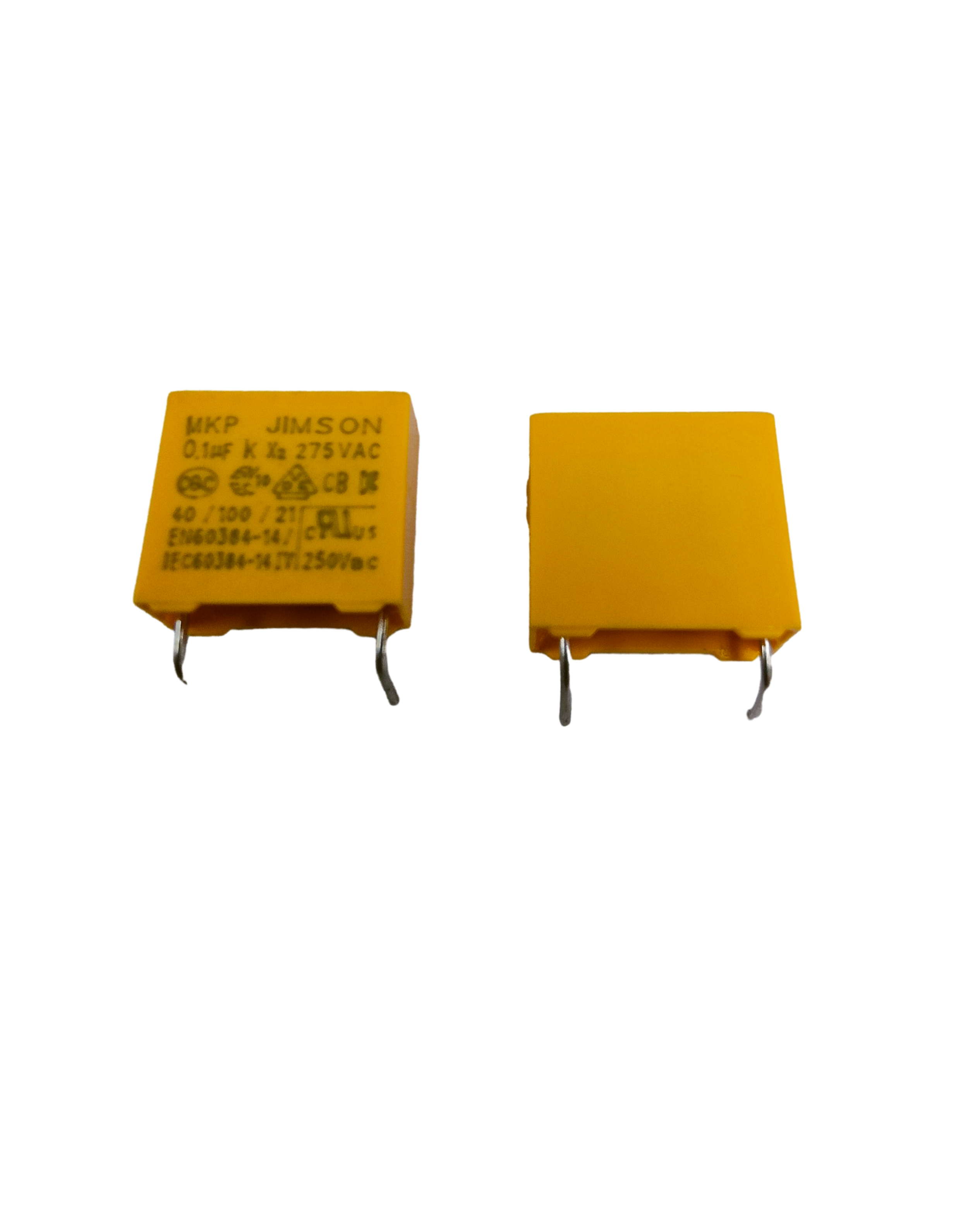

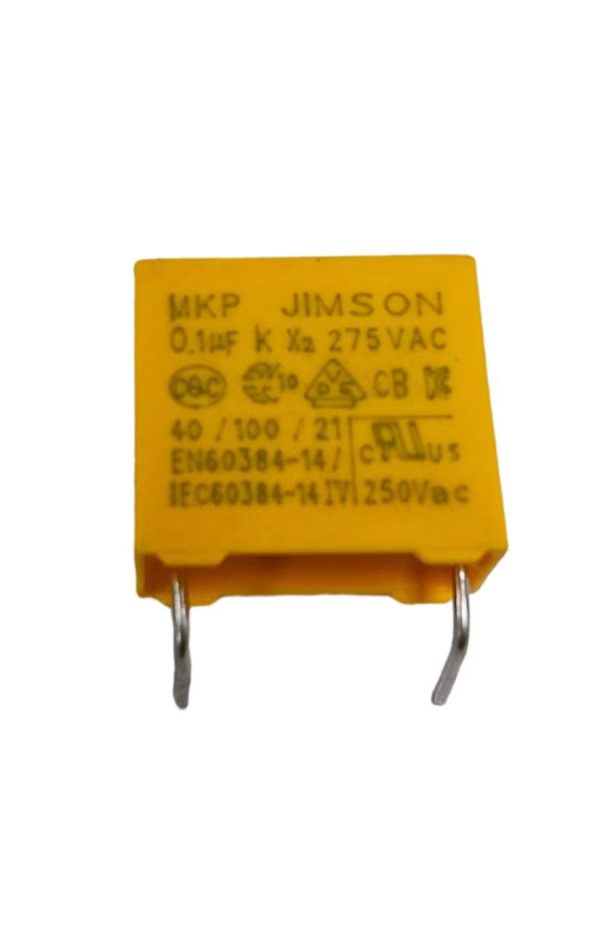

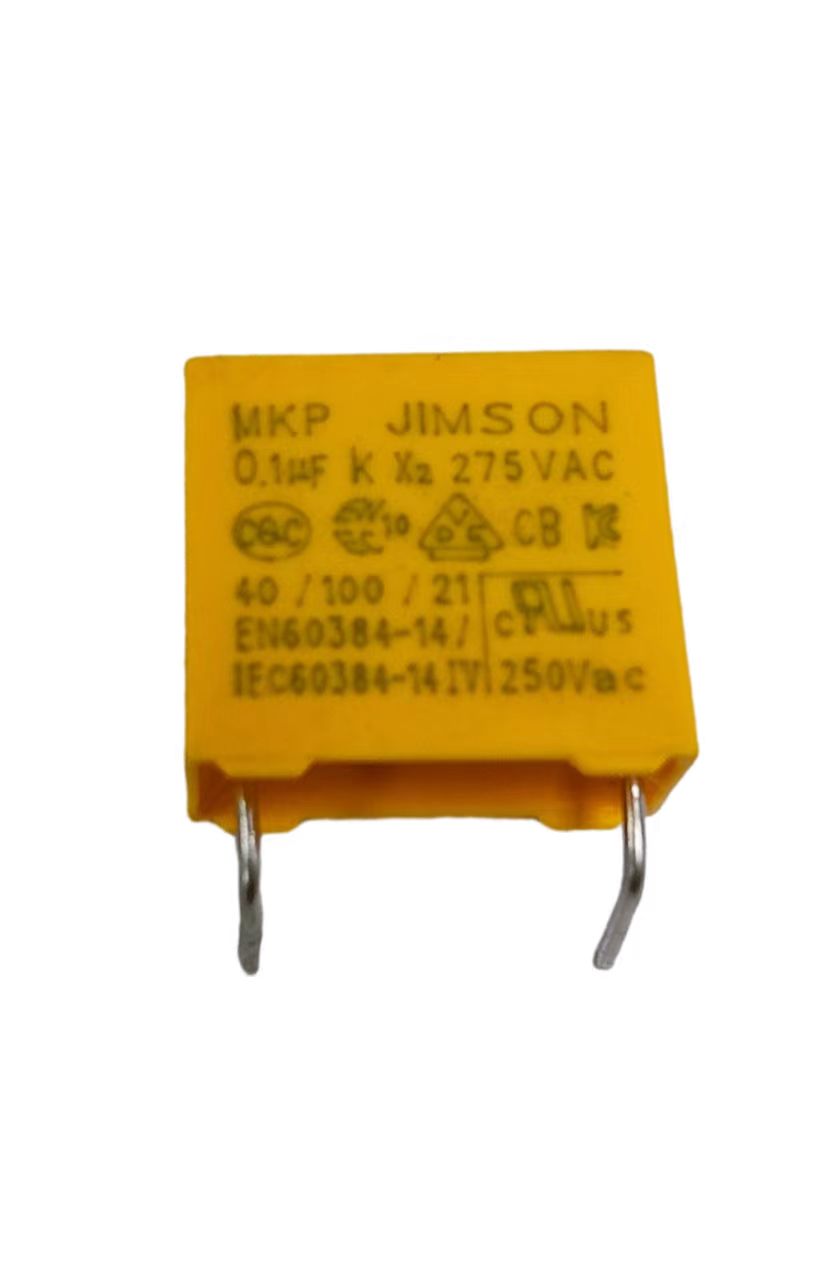

0.1uF 275V X2 Capacitor in Lie Down Cutting

Lie-down cutting is a precise cutting technique widely used in various manufacturing industries. The process involves laying down the material to be cut horizontally, allowing for precise control and accuracy in the cutting path. This technique is particularly valuable in industries such as automotive manufacturing, aerospace, and electronics, where precision is paramount. Lie-down cutting is extensively used in the automotive sector for cutting materials like metal sheets and composite materials. The precision offered by this technique is crucial for creating intricate parts and components used in vehicle manufacturing. Lie-down cutting plays a vital role in the production of electronic components and printed circuit boards (PCBs). The precise cutting allows for the creation of intricate shapes and patterns necessary for modern electronic devices. Lie-down cutting is also utilized in the textile industry for cutting fabrics with precision. This is essential for creating tailored garments and ensuring minimal material waste.

Category Suppression capacitors Tags Encased Polypropylene Film Capacitors, Film Capacitors

Product Description

0.1uF 275V X2 Capacitor in Lie Down Cutting Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Radial leads of tinned wire/ insulation flexible wire
Reference standard	IEC 60384-14 (3nd Edition,2005) UL1414,UL1283, GB/T 14472-1998,EN60384-14
Climatic catalogue	40/100/21 (GMF)
Capacitance versus rated voltage (UR)	0.001µF-2.2µF/275VAC (50/60Hz) 0.001µF-4.7µF/310VAC (50/60Hz), (UL)
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	4.3*UR Unit VDC (1minute at 20℃ )
Insulation resistance	C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)
Endurance:	The test voltage 125% shall be applied for 1000 hours in the 100 ℃ chamber.Each of these voltage shall be applied to each capacitor individually through a resistor of 47Ω±5%, During this period, 1000VAC 60Hz for 0.1sec be applied once each hour. After the Test： △ C/C ≤ 10%; IR ≥ 50% of the specified value; △ DF ≤ 0.8%(C ≤ 1µF); △ DF ≤ 0.5%(C ＞ 1µF); (at 20 ℃ 1KHz)

Role of the 0.1uF 275V X2 Capacitor in Lie Down Cutting:

Lie-down cutting, a precision industrial process, demands equipment that operates with accuracy and reliability. The 0.1uF 275V X2 capacitor contributes to the efficiency of lie-down cutting machinery in several key ways:

1.EMI and RFI Suppression: Lie-down cutting machines often generate electrical noise during operation. This interference can adversely affect the performance of sensitive electronic components within the equipment. The X2 capacitor serves as a filter, suppressing EMI and RFI to ensure a clean and interference-free electrical environment, ultimately improving the precision of the lie-down cutting process.

2.Voltage Stability: The capacitor’s voltage rating is crucial in maintaining stable voltage levels within the machinery. Lie-down cutting equipment typically involves motors and electronic components that require consistent voltage for optimal performance. The 0.1uF 275V X2 capacitor helps regulate and stabilize the voltage, preventing fluctuations that could lead to disruptions in the cutting process.

3.Safety Compliance: Industrial equipment, including lie-down cutting machines, must adhere to stringent safety standards. The use of X2 capacitors, designed for safety and reliability, contributes to compliance with regulatory requirements, ensuring the well-being of operators and the integrity of the equipment.

4.Enhanced Lifespan: Capacitors play a vital role in protecting electronic components from voltage spikes and disturbances. By utilizing the 0.1uF 275V X2 capacitor, lie-down cutting machines can extend the lifespan of critical components, reducing the risk of premature wear and tear and minimizing downtime for maintenance.

Capacitor Technology in Industrial Applications:

To appreciate the significance of the 0.1uF 275V X2 capacitor in lie-down cutting, it’s essential to consider the broader landscape of capacitor technology in industrial applications:

1.Power Electronics: Capacitors are fundamental in power electronic circuits, where they store and release energy to ensure smooth power delivery. In industrial settings, power electronic systems rely on capacitors for tasks such as power factor correction and energy storage.

2.Motor Drives: Industrial machinery often involves the use of electric motors. Capacitors in motor drives help control the motor’s speed and torque, contributing to the efficiency and precision of processes like lie-down cutting.

3.Filtering and Decoupling: Capacitors are employed to filter out unwanted noise and stabilize voltage in industrial circuits. This is crucial for the reliable operation of sensitive electronic components, ensuring accuracy in applications like lie-down cutting.

4.Energy Storage: In some industrial processes, capacitors serve as energy storage devices, providing a quick and reliable source of energy when needed. This is particularly valuable in applications that require bursts of power, such as rapid movements in lie-down cutting machinery.
