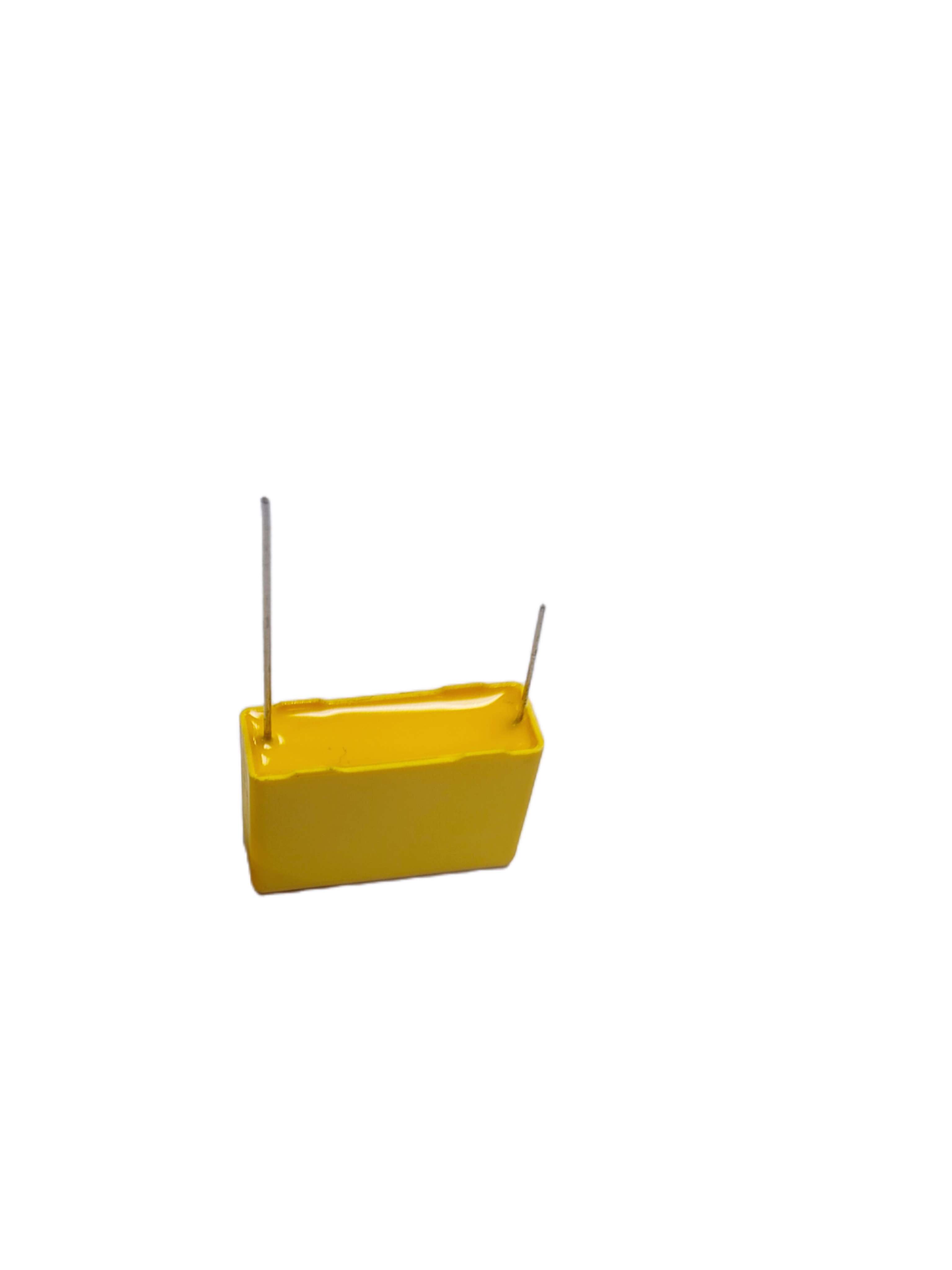

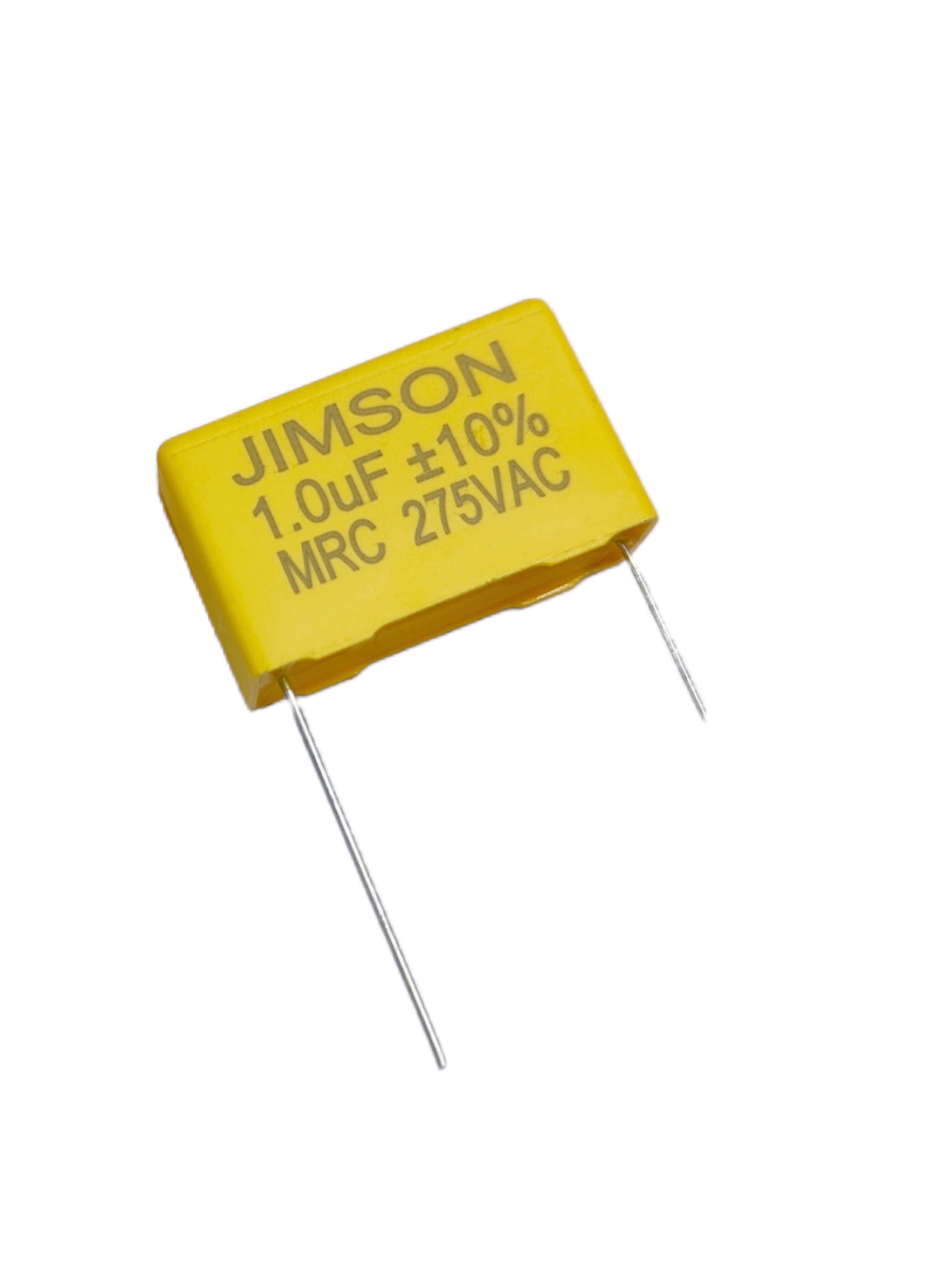

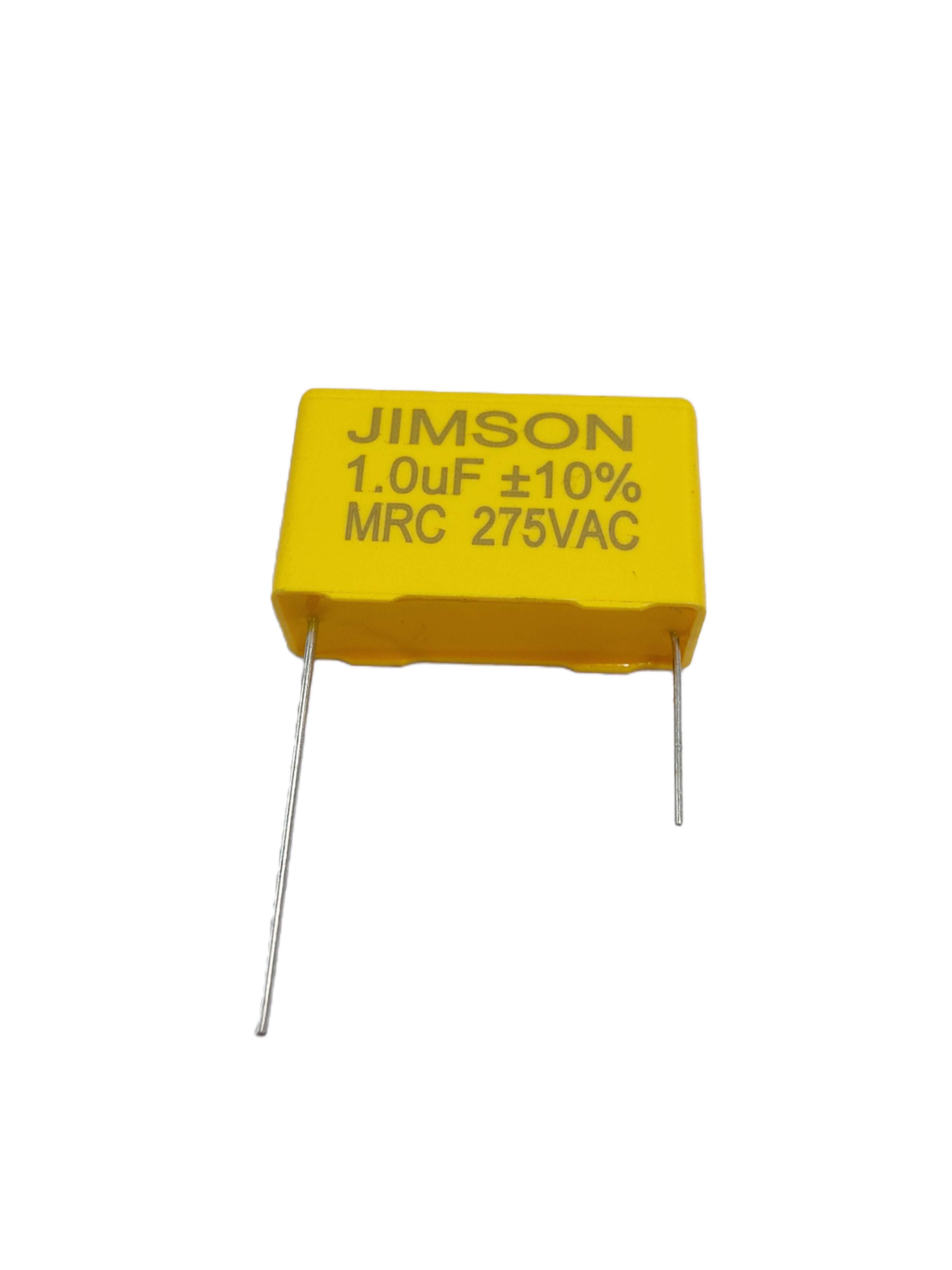

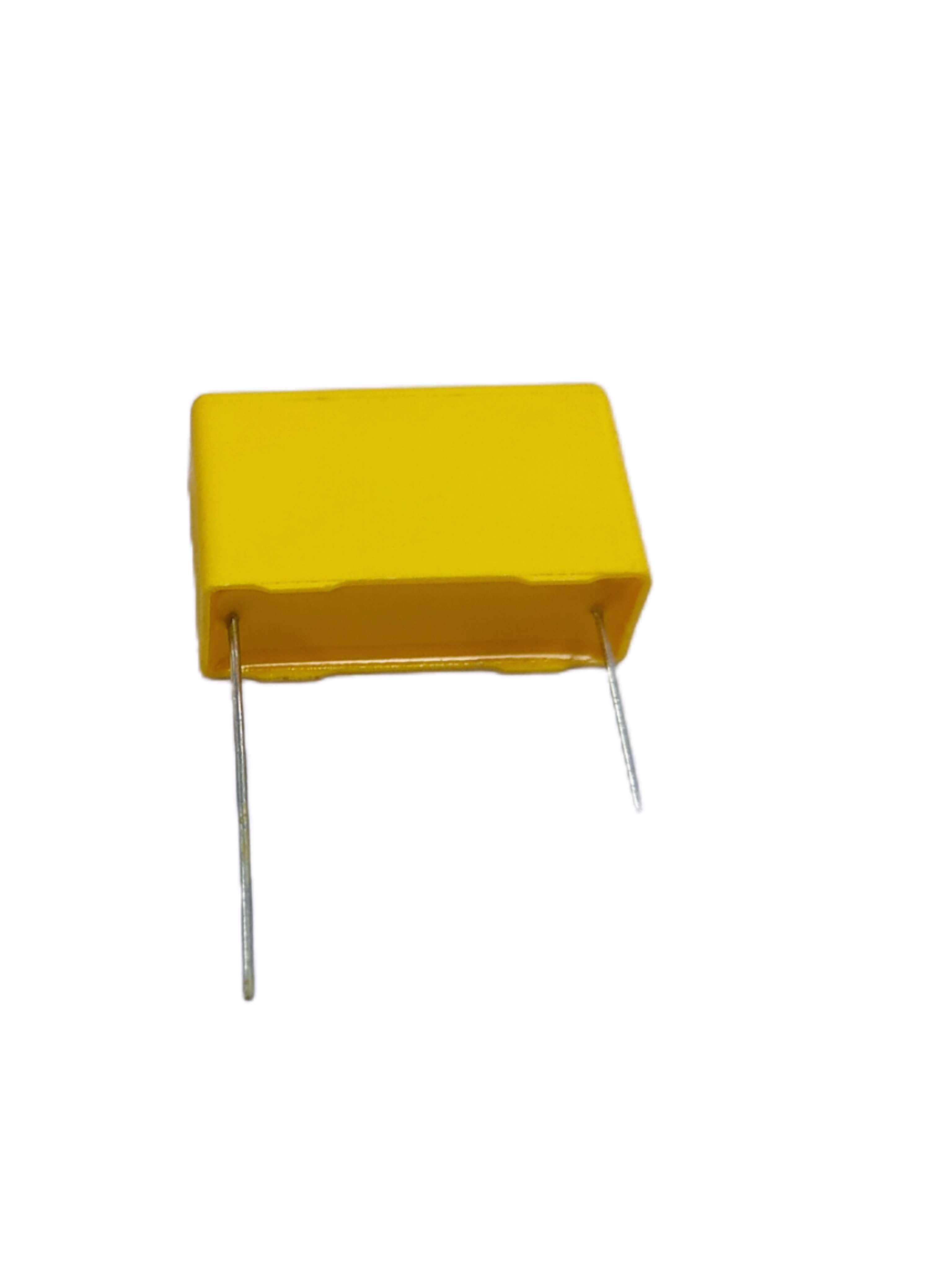

1.0uF AC Snubber Capacitor

Choosing the Right RC Snubber Capacitor

Choosing the right RC snubber capacitor for your circuit is essential to ensure optimal performance and protection. The capacitance and voltage rating of the capacitor should be selected based on the specific requirements of the circuit. The capacitance value should be chosen based on the frequency of the noise and the voltage rating should be selected based on the maximum voltage that the circuit can handle.

Advantages of RC Snubber Capacitor

RC snubber capacitors offer several advantages over other types of snubber circuits. They are simple to design and implement, cost-effective, and provide effective protection against voltage spikes and noise. They also have a low profile and can be easily integrated into the circuit board.

Feature of 1.0uf snubber capacitors :

1.Small size with superior performance
2.Suitable for PCB mounting
3.Ideal for AC or DC application
4.Providing flexible wire, tubular and box type on request

5.Large product selection range with 1/4,1/2 and 1W resistors, 0.001 to 1.0uf capacitance

Application of 1.0uf snubber capacitors:

1.Protection for contacts from noise during switching operations of equipment

2.Protection of electronics instruments during operation of relays, solenoids, motors

3.Electrical noise protection of semiconductor equipment during the control of triacs, transistor, motors,  welders, etc

Specifications:

Dielectric: Metallized polypropylene film

Electrodes: Non-inductive,high pulse resistor

Leads: Tinned wire or polyvinylchloride(PVC)insulation stranded copper wire

Coating: Expoxy resin(UL94V-0)

CATEGORY: X2 class

Reference standard: IEC384-14 GB/T14472-98 EN132400 UL1283

Climatic catalogue: 40/100/21

Capacitance versus rated voltage:

(SERIES）0.01μF~1.0μF 300VAC

(PARALLEL）0.001μF~0.68μF 300VAC

RESISTANCE AND POWER:

(SERIES ） 10-470 Ω，1/4、1/2 、1.0 or 2.0 Watt

(PARALLEL ）1.0~2.2 MΩ，1/4 、1/2、 1Watt

Voltage-proof:

4.3*UR Unit:VDC ( 1 minute at 20℃ )

INSULATION RESISTANCE:

C≤0.33µF  IR ≥15,000MΩ; C>0.33µF ,IR*C≥ 5,000S—-Series only

（1minute at 20 ℃ and RH≤ 65%）

CAPACITANCE TOLERANCE: M=±20% K=±10% J=±5%
