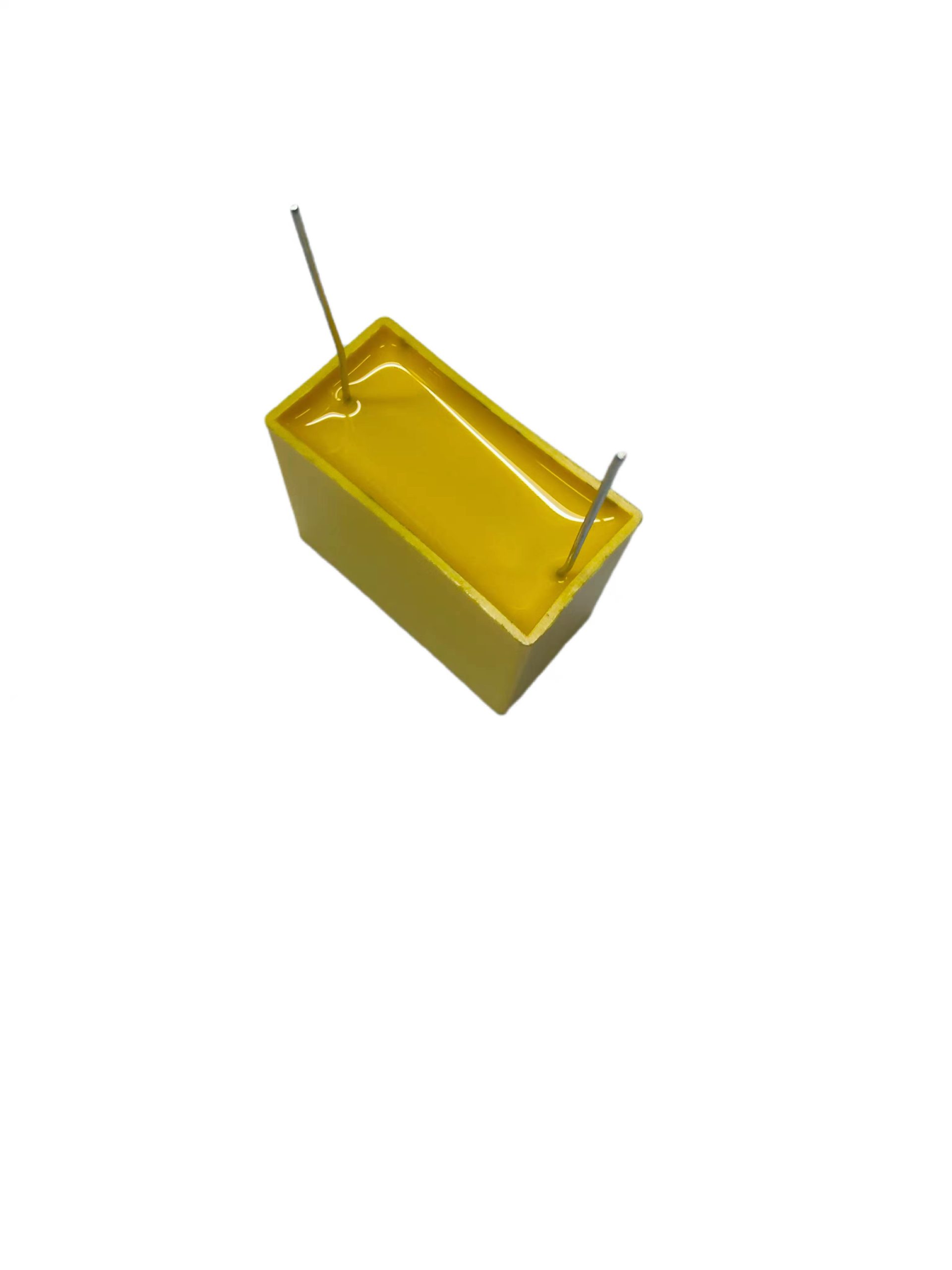

1.0uF 250VDC Power Capacitor

Saga of the Capacitor

This title ties everything together, emphasizing the capacitor as more than just an electronic component but a narrative of innovation and progress.

Consider, for a moment, the home appliances (e.g:air conditioning, refrigerator, TV and so on) unit without this silent guardian. The performance would waver, the efficiency would falter, and the symphony of cooling would be marred by dissonance. It is the power capacitor that ensures the notes are harmonious, and that the crescendo of cooling rises and falls with perfect cadence.

As we marvel at the ingenuity of modern home appliances, let us not forget the humble power capacitor, the heartbeat of the system. The 10.0uF 250VDC capacitor in its CBB23 package is a beacon of reliability, a lighthouse guiding the currents through the turbulent seas of electricity.

Category Power capacitors

Product Description

Specifications:

Dielectric	Polypropylene film
Electrodes	Vacuum evaporated metal or Aluminum foil
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Axial leads of tinned wire
Reference standard	IEC 384-16; GB 10190-1988
Climatic catalogue	40/85/21
Capacitance versus rated voltage (UR)	0.001 µF-2.2 µF/100VDC 0.001 µF-2.2 µF/250VDC 0.001 µF-2.2 µF/400VDC 0.001 µF-2.2 µF/630VDC
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	1.6*UR Unit:VDC (5s at 20°C)
Insulation resistance	C≤0.33µF, IR≥30000MΩ, C>0.33µF, IR*C≥5,000s (1 minute at 20°C and R≤65%)
Endurance:	1000 hours with 125% of rated voltage at 85°C. After the test: ΔC/C ≤5%; ΔDF ≤0.40%, IR ≥50% of the specified value (20°C, 1kHz)

Let’s turn our gaze to the CBB23 power capacitors package—a protective cocoon for our capacitor virtuoso.

The CBB23 power capacitor , a fortress of stability, shields the 10.0uF capacitor from the elements, ensuring its longevity and reliability. This package, a testament to the meticulous craftsmanship of electronic engineers, encases the capacitor in a fortress of precision, safeguarding it against the relentless march of time and the rigors of its duty.
