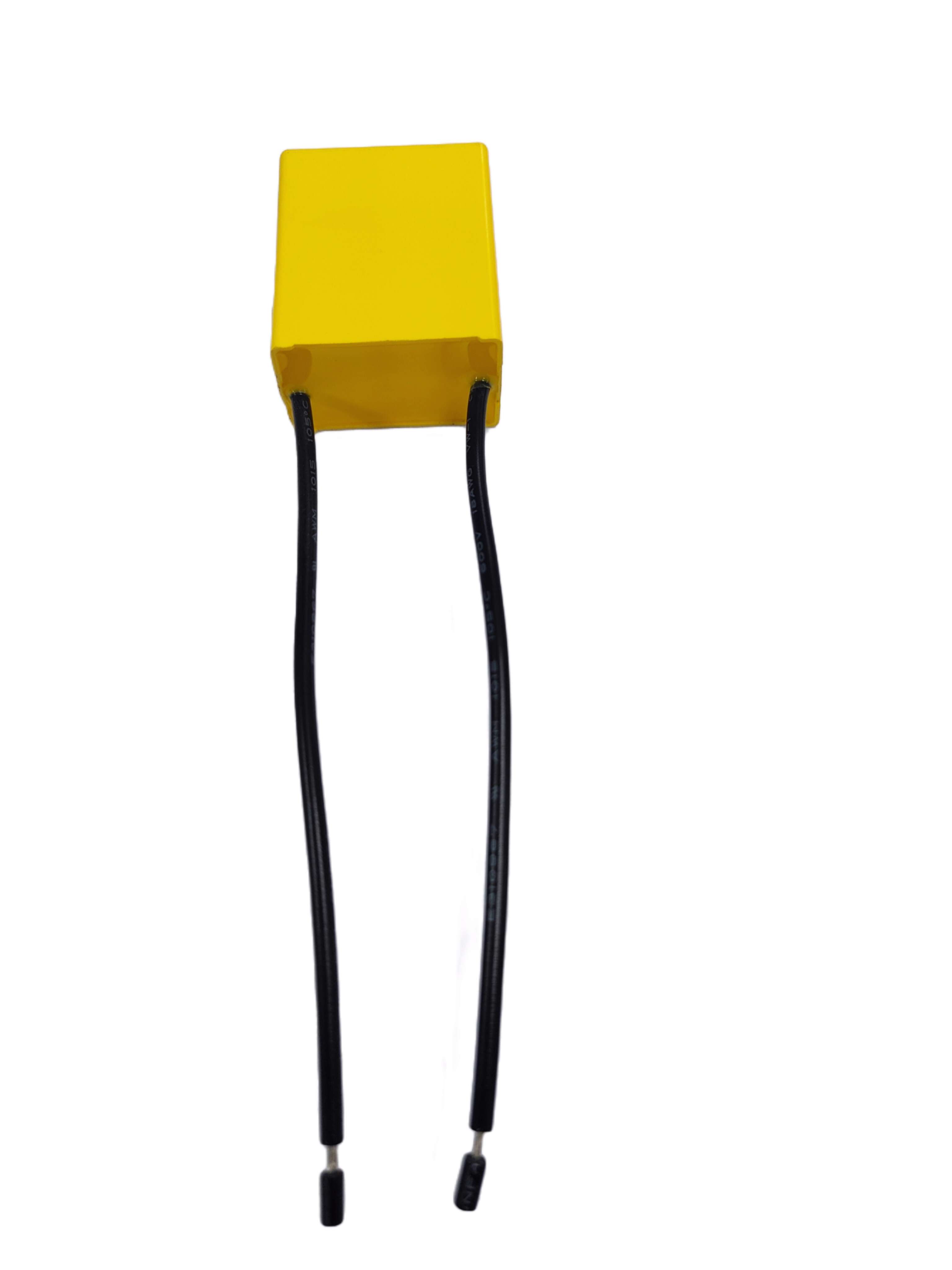

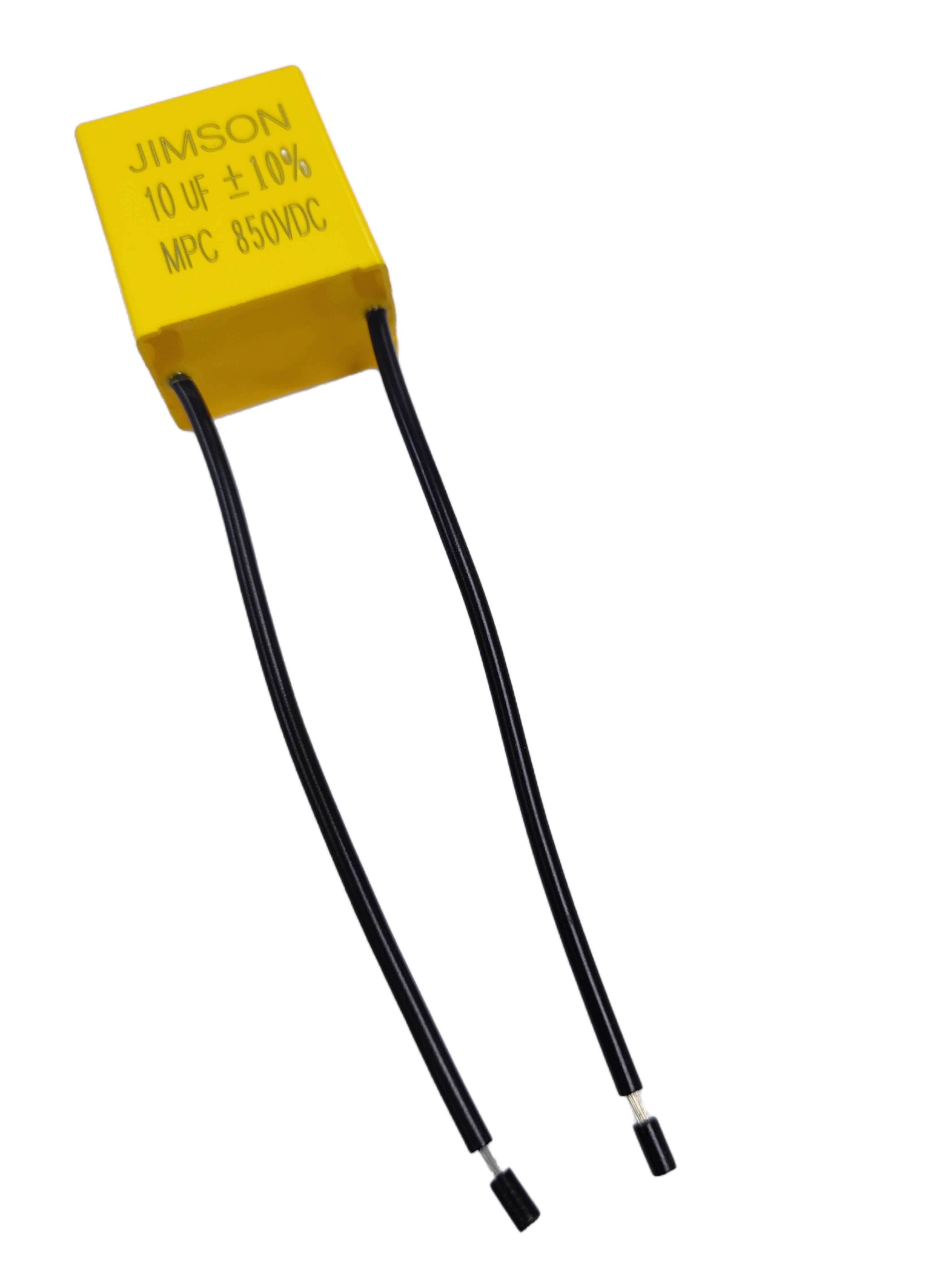

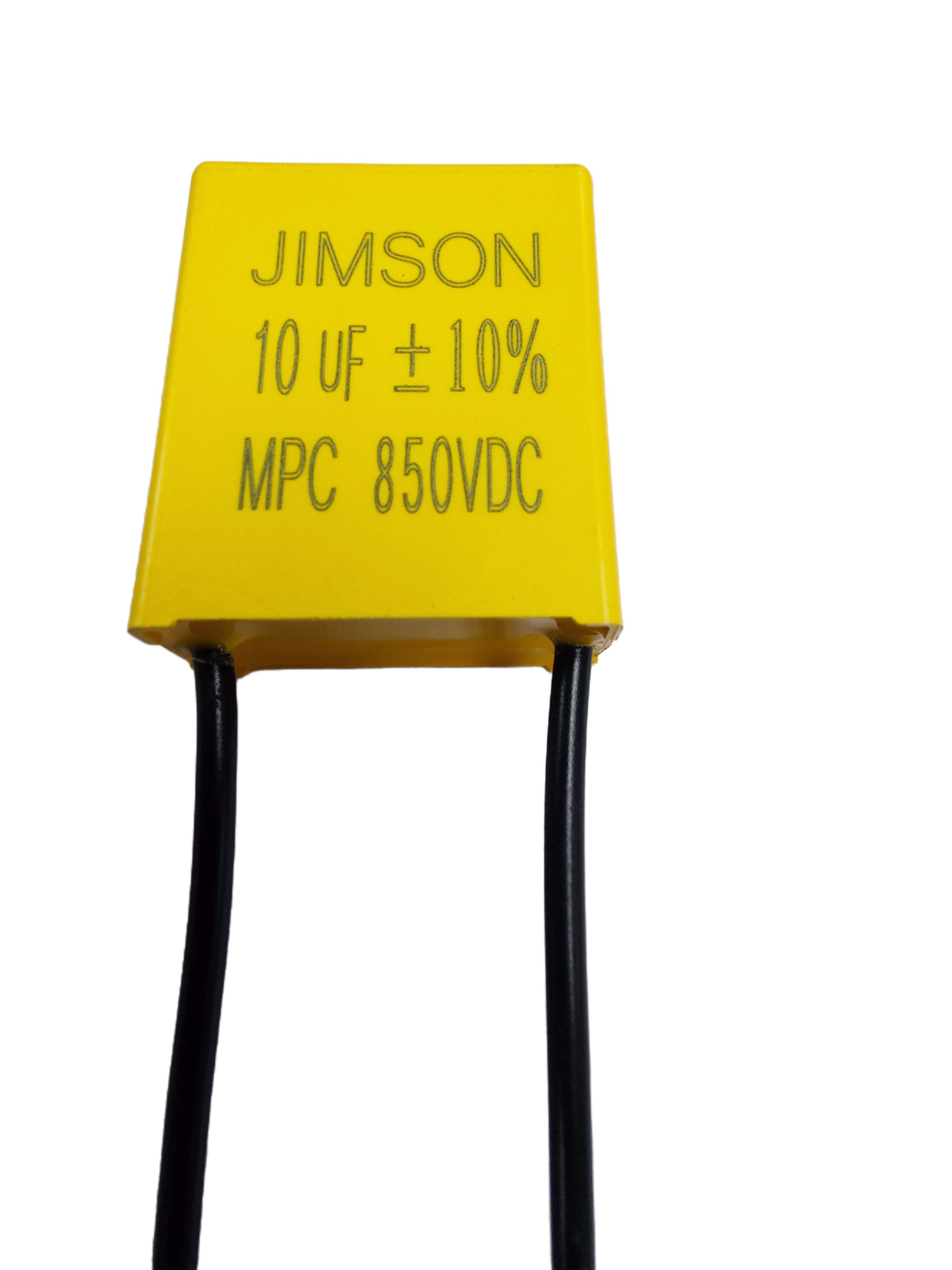

10.0uf Power Supply Circuit Capacitor

Advantages of Power Capacitors

Power capacitors can offer some advantages compared with the other energy storage devices.

The advantages are as below:

1. Power capacitors can deliver high power output in short bursts, widely used in application as high voltage, high frequency and  high current for high frequency absorption use.

2. Power capacitors can charge and discharge quickly, making them ideal for applications that require rapid energy transfer.

3. Power capacitors have a long lifespan , by contrast batteries, making them a more reliable and cost-effective solution in the long-term development.

4.  Power capacitors require little maintenance and can reduce the overall cost of ownership.

Feature

1.Non-inductive construction and self-healing
2.High property moisture resistance

3.Super physical and environmental characteristics

Application

1.Filter and noise suppression circuit
2.Pulse, logic and timing circuit
3.DC-blocking, by-passing and signal coupling in general communication‘s equipment

Specifications

Dielectric: Polypropylene film

Electrodes: Vacuum evaporated metal or Aluminum foil

Capacitance tolerance: M = ±20%, K = ±10%, and J = ±5%

Dissipation factor: DF≤1.0% (at 20°C, 1KHz)

Voltage-proof: 1.6*UR Unit:VDC (5s at 20°C)

Insulation resistance: C≤0.33µF, IR≥30000MΩ, C>0.33µF, IR*C≥5,000s (1 minute at 20°C and R≤65%)

Endurance: 1000 hours with 125% of rated voltage at 85°C. After the test:

ΔC/C ≤5%; ΔDF ≤0.40%, IR ≥50% of the specified value (20°C, 1kHz)

1. Can the capacitors be customized as our need, such as put on our logo?

    Surely our capacitors can be customized as your need.  Put on your logo is also available.

2. How do you arrange the shipment?

    Usually we take seaway, because it’s more convenient and cheaper.

    Of course we can ship the goods by air as your request.

3. What is the customer you work with?

    We work with famous brands such as: Panasonic, Electrolux, LG and Honeywell.
