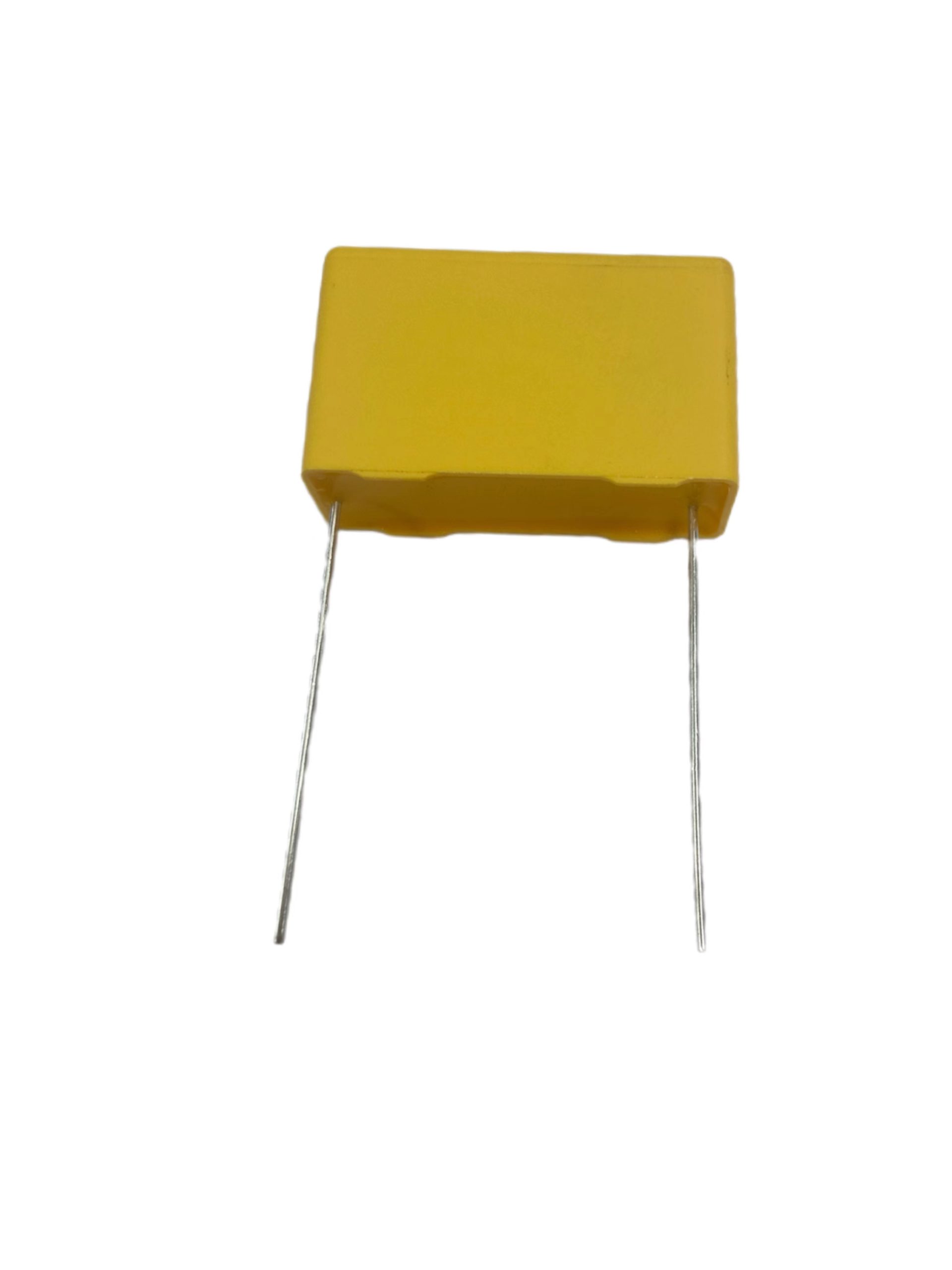

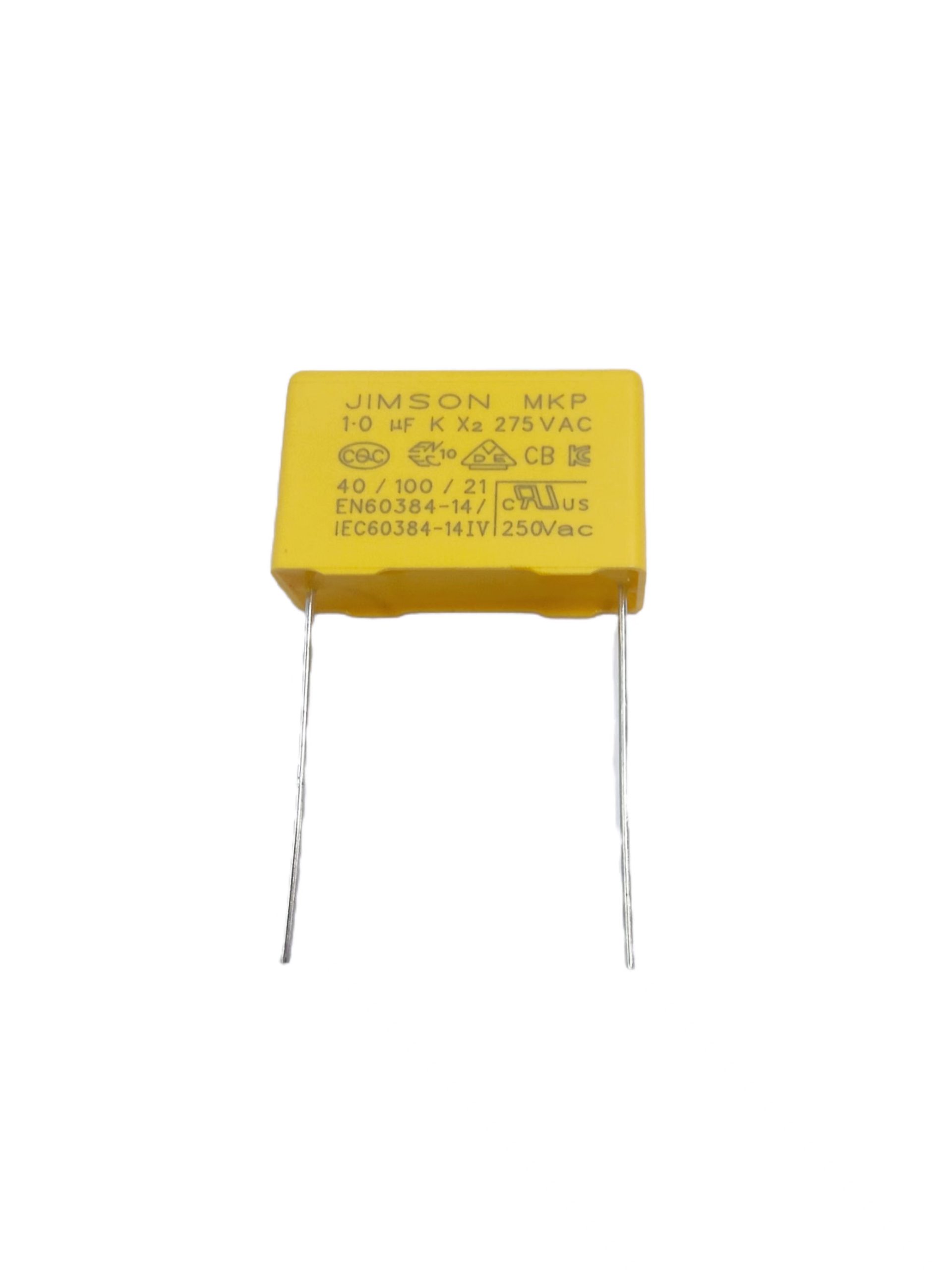

Suppression X2 Capacitor for Frequency Converter

Applications in Frequency Converter

The X2 Metallized Polypropylene film capacitor finds extensive usage in Frequency Converter due to its exceptional characteristics. It is primarily used in the following applications:

1. Motor Start and Run: The X2 capacitor is employed in the motor circuit of frequency converter to provide the necessary starting torque and maintain a stable running condition. It helps in smooth motor operation, reducing noise and vibration.

2. Noise Suppression: The X2 capacitor helps in suppressing electrical noise generated during the operation of frequency converter components. It ensures a quieter operation and minimizes interference with other electronic devices.

3. Voltage Regulation: The X2 capacitor aids in stabilizing the voltage supply to various components of the frequency converter. It prevents voltage fluctuations, ensuring consistent performance and protecting sensitive electronic parts.

Category Metallized Polypropylene Capacitors

Product Description

Specifications:

Dielectric: Polypropylene film

Electrodes: Vacuum evaporated metal

Coating: Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL94V-0.

Leads: Radial leads of tinned wire/ insulation flexible wire

Reference standard: IEC 60384-14 (3nd Edition,2005) UL1414,UL1283,GB/T 14472-1998,EN60384-14

Climatic catalogue: 40/100/21 (GMF)

Capacitance versus rated voltage:

0.001µF-4.7µF/275VAC (50/60Hz)

0.001µF-4.7µF/310VAC (50/60Hz), (UL)

Capacitance tolerance: M ±20% K ± 10% J ± 5%

Dissipation factor (tangent of loss): ≤0.1％ (at 20℃ , 1KHz)

Voltage-proof:

4.3*UR Unit VDC (1minute at 20℃ )

Insulation resistance:

C ≤0.33μF, IR ≥15,000mΩ, C>0.33μF, IR*C≥5000S (1 minute at 20 and RH≤65%)

5,000s (1 minute at 20°C and RH Φ65%)

Suppression X2 capacitor is a type of capacitor that is used to suppress high-frequency noise in electronic circuits. They are also known as EMI suppression capacitors or RFI suppression capacitors.Suppression X2 capacitors are designed to filter out unwanted noise and interference that can affect the performance of electronic devices. X2 capacitors are high transient endurance and high dielectric strength, and these capacitors are real long-term stability. Suppression X2 capacitor can withstand high voltage strength.
