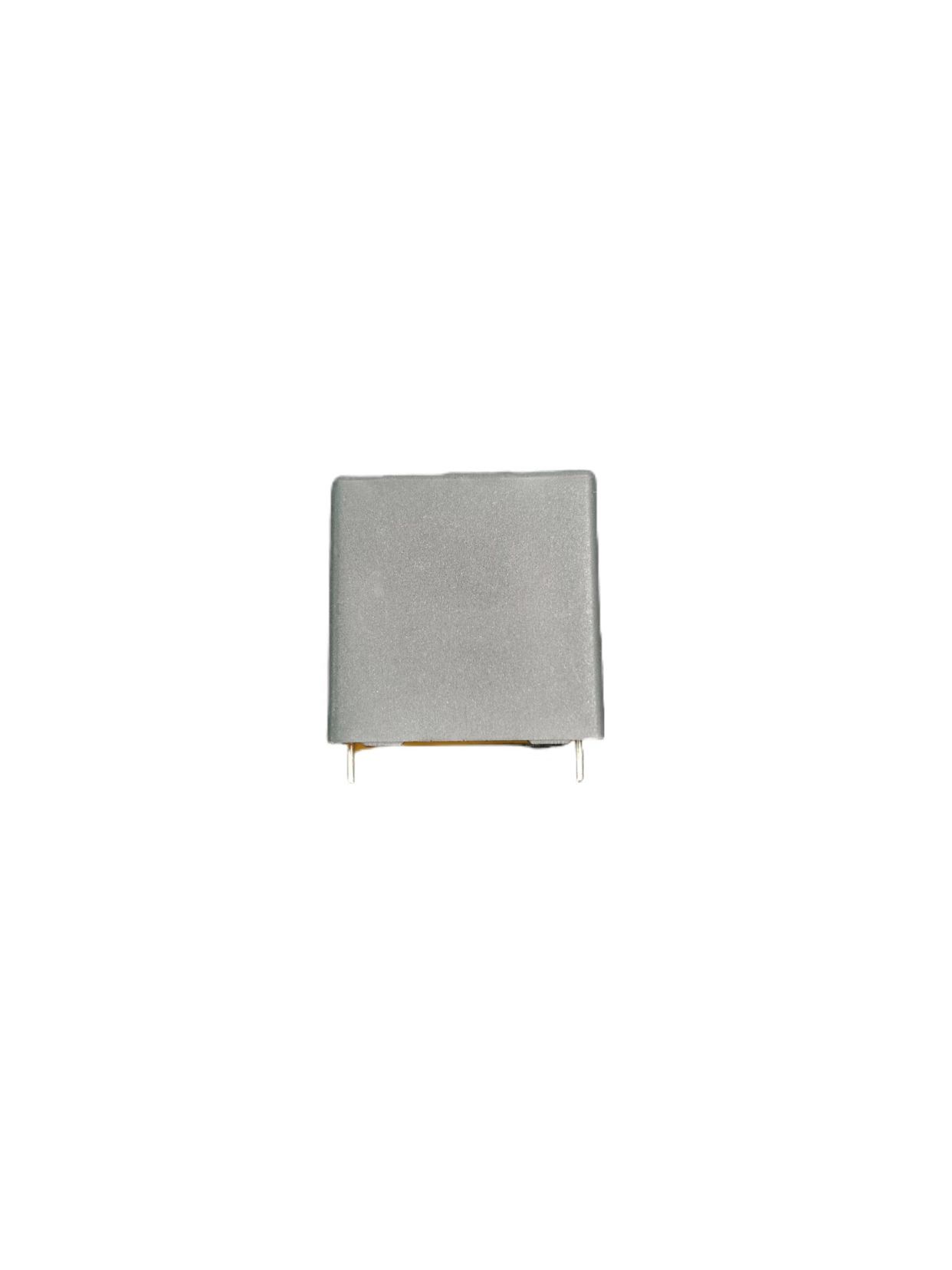

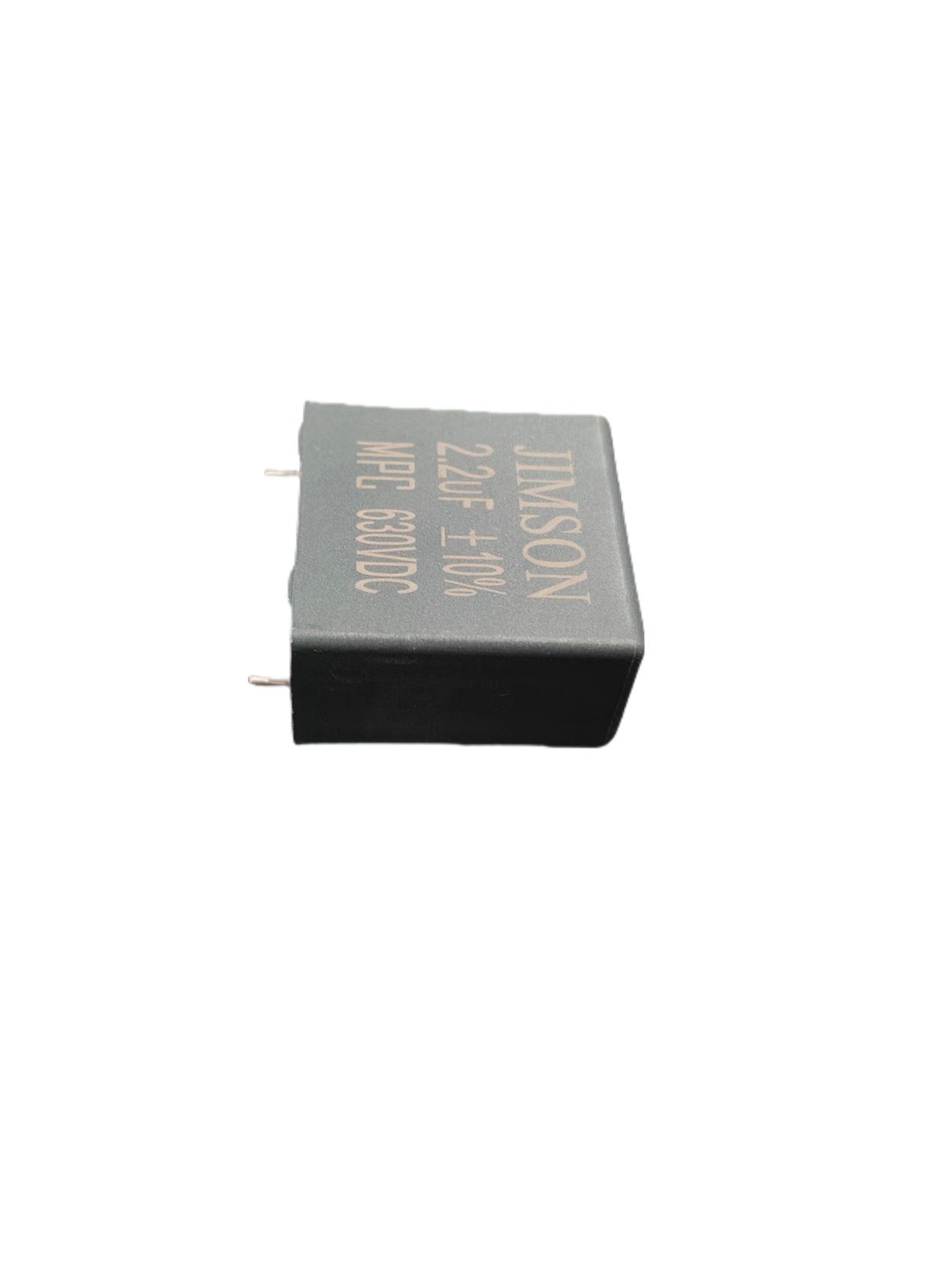

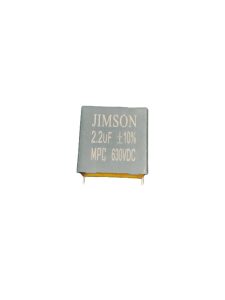

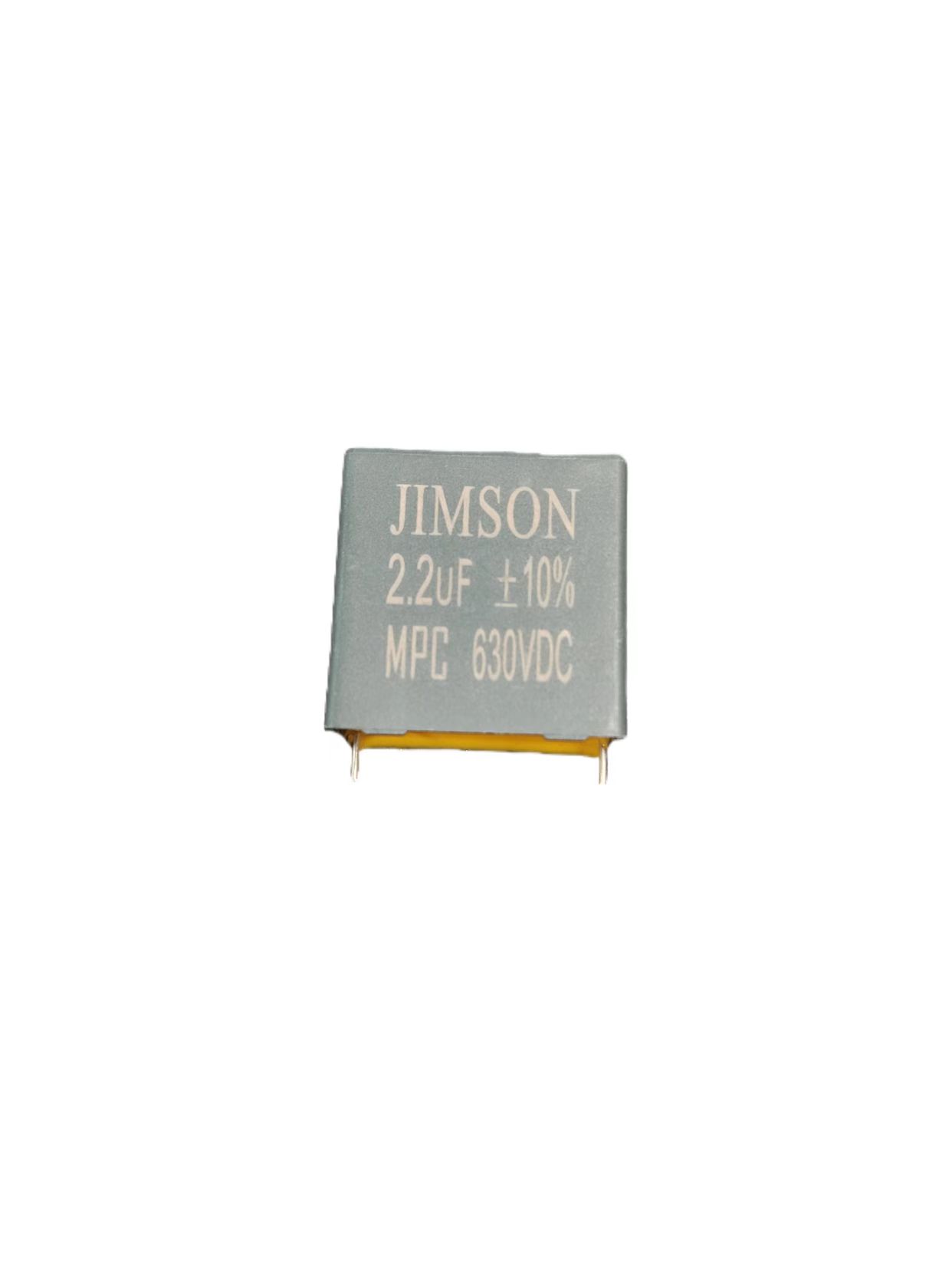

MPC225K630V Capacitor: A High-Efficiency Energy Storage Component in Circuits

I. Basic Principles and Types of Energy Storage Components

Energy storage components, such as capacitors and inductors, are indispensable parts of electronic circuits. They can store electrical energy and release it when needed, ensuring the stable operation and high performance of circuits.

Capacitive Energy Storage Principle Capacitors store electrical energy through an electric field between two conductors. When a voltage is applied across the conductors, an electric field forms between them, storing electrical energy. The energy storage capacity of a capacitor is directly proportional to its capacitance (C) and the square of the charging voltage (V), with the formula E = 1/2 * C * V².

Inductive Energy Storage Principle Inductors store electrical energy through a magnetic field. When current flows through a conductor, a magnetic field forms around it. As the current changes, the magnetic field changes, generating an electromotive force (EMF), which is the process of inductive energy storage.

Types of Energy Storage Components Common energy storage components include electrolytic capacitors, ceramic capacitors, film capacitors, and inductors. Each type has specific application scenarios and advantages and disadvantages. For example, electrolytic capacitors have large capacitance values and low costs but relatively poor frequency characteristics and stability; ceramic capacitors have good high-frequency characteristics, small size, and light weight but relatively small capacitance values; film capacitors combine good high-frequency characteristics, high stability, and small size, making them suitable for applications requiring high precision and reliability.

II. Energy Storage Requirements and Challenges in MPC225K630V Circuits

Circuit Characteristic Analysis Assuming that the MPC225K630V circuit is an application scenario requiring high stability, high efficiency, and high reliability, such as industrial control, communication systems, or high-end consumer electronics. These applications typically have high requirements for circuit voltage stability, current response speed, and anti-interference capabilities.

Principles for Selecting Energy Storage Components When selecting energy storage components, factors such as rated voltage, capacitance value (or inductance value), frequency characteristics, stability, and cost must be considered. For the MPC225K630V circuit, the energy storage component needs to have sufficient rated voltage to withstand the highest voltage in the circuit; at the same time, the capacitance value (or inductance value) must meet the circuit’s energy storage requirements; in addition, frequency characteristics and stability are also key factors that determine the performance of the energy storage component in high-frequency and complex environments.

III. Application and Optimization of High-Efficiency Energy Storage Components in MPC225K630V Circuits

To address the energy storage requirements and challenges in the MPC225K630V circuit, we can adopt the following strategies to optimize the performance of energy storage components:

Select the Appropriate Type of Energy Storage Component Based on the specific requirements of the MPC225K630V circuit, select the appropriate type of energy storage component. For example, if the circuit requires high-frequency response and stability, a film capacitor can be chosen; if the circuit requires large capacitance values and lower costs, an electrolytic capacitor can be selected.

Optimize Circuit Design and Layout By, the performance of energy storage components can be further optimized. For example, placing energy storage components close to the loads that require power supply can reduce line losses and interference; at the same time, reasonable grounding and shielding measures can improve the circuit’s anti-interference capabilities.

Adopt Advanced Manufacturing Processes and Materials Using advanced manufacturing processes and materials can significantly improve the performance and reliability of energy storage components. For example, using low-loss, high-stability film materials can produce high-performance film capacitors; advanced packaging technologies can improve the reliability and lifespan of energy storage components.

Implement Effective Thermal Management and Aging Monitoring In high-temperature environments, the performance of energy storage components may be affected. Therefore, effective thermal management measures are needed to reduce the temperature of the components. For example, increasing heat sinks, using thermally conductive materials, or using fans and other cooling methods can reduce the temperature of the components. In addition, regular aging monitoring and replacement of energy storage components are necessary to ensure their long-term stable operation.

Utilize Intelligent Algorithms for Dynamic Adjustment In the MPC225K630V circuit, intelligent algorithms can be used to dynamically adjust the working state of energy storage components. For example, by monitoring the voltage and current changes in the circuit in real-time, the charging and discharging processes of energy storage components can be dynamically adjusted according to needs, thereby improving the efficiency and stability of the circuit.

In summary, high-efficiency energy storage components are indispensable parts of electronic circuits. In the MPC225K630V circuit, by reasonable selection and optimization strategies, the performance advantages of energy storage components can be fully utilized to provide strong protection for the stable operation and high performance of the circuit.
