The application of capacitors, including the 2.2uF CL23 Polyester Film Capacitor, extends beyond consumer electronics. Its role is pivotal in enabling technological advancements across various industries: Renewable Energy, Electric Vehicles, Communications Technology and Medical Devices.
The 2.2uF CL23 Polyester Film Capacitors play a crucial role in renewable energy systems, including solar inverters and wind turbine controllers. They contribute to the efficient conversion and distribution of energy from renewable sources.
The 2.2uF CL23 Polyester Film Capacitors are integral to the functioning of electric vehicles, where they support energy storage, power delivery, and electronic control systems. Advances in capacitor technology contribute to the development of more efficient and reliable electric vehicles.
The 2.2uF CL23 Polyester Film Capacitorsare essential in communication devices and networks, where they contribute to signal processing, filtering, and power supply stability. The 3.3uF 275V capacitor’s reliability makes it suitable for applications in telecommunications infrastructure.
The 2.2uF CL23 Polyester Film Capacitors are used in various medical devices, from imaging equipment to patient monitoring systems. Their stability and precision contribute to the accurate operation of critical medical technologies.

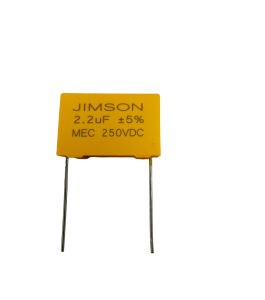

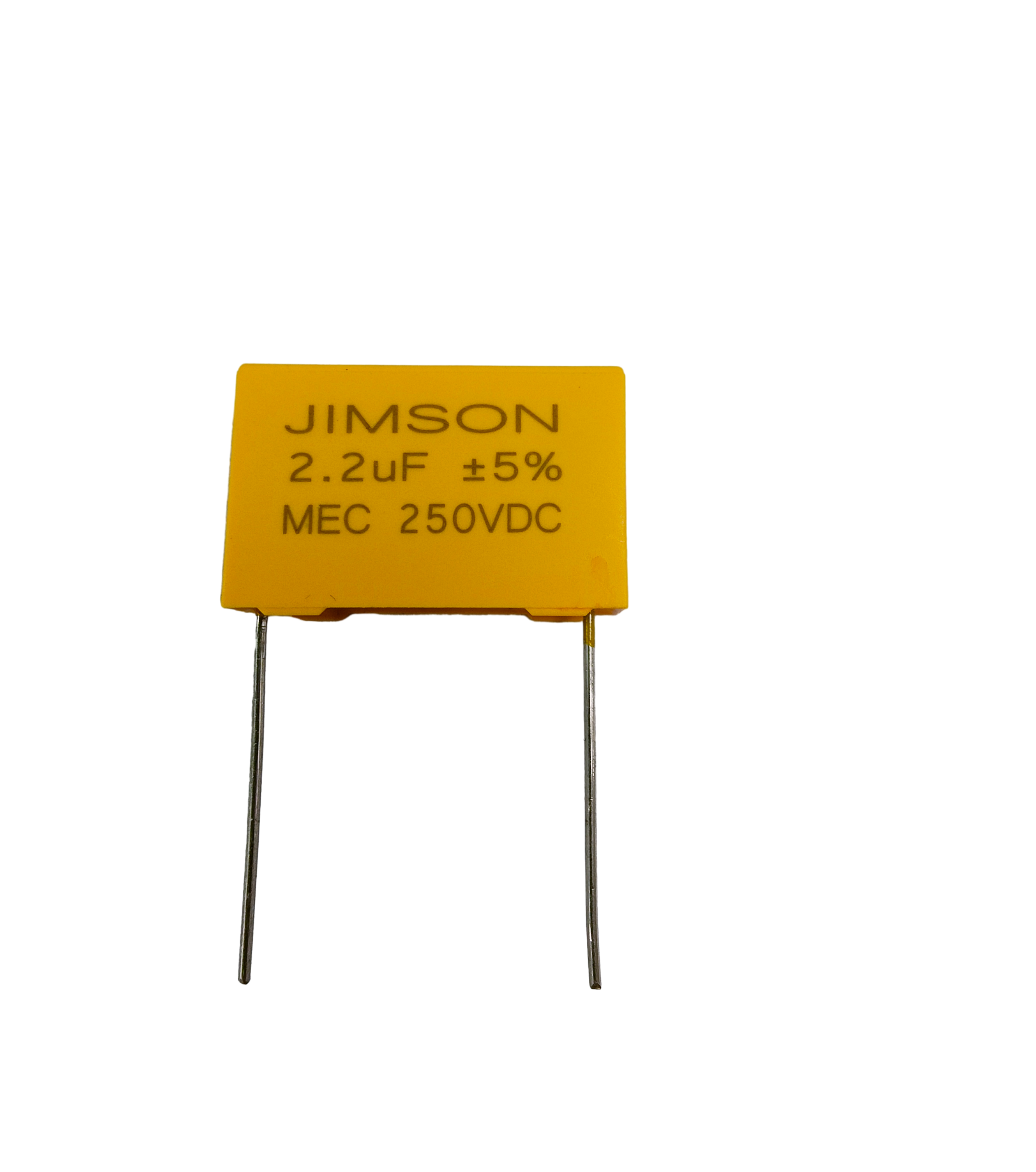

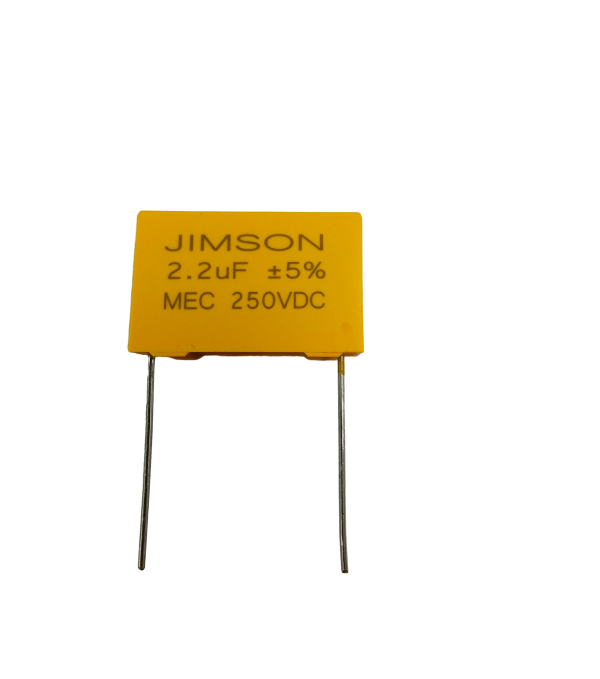

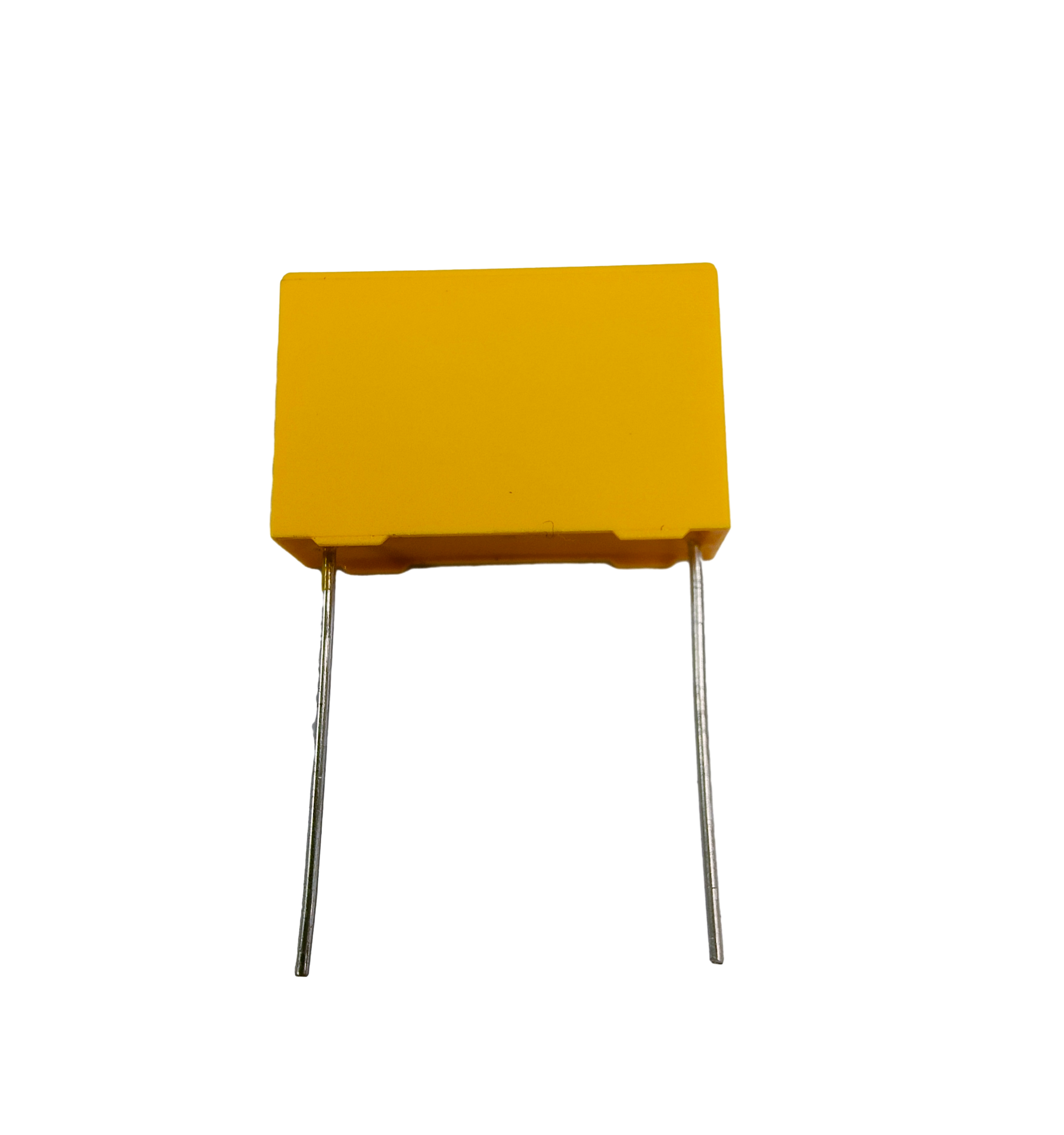

2.2uF CL23 Polyester Film Capacitor Specifications:
| Dielectric | Polyester film |
| Electrodes | Vacuum evaporated metal |
| Coating | Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0 |
| Leads | Radial leads of tinned wire |
| Reference standard | IEC 384-2 grade 1; SJ/T 10873-1996 |
| Climatic catalogue | 40/100/21(From 85°C up to 105°C with derating voltage 1.25%/°C) |
| Capacitance versus rated voltage (UR) | 0.001μF-6.8μF50/100VDC 0.001μF-6.8μF/250VDC 0.001μF-2.2uF/400VDC 0.001uF-1.5uF/630VDC |
| Capacitance tolerance | M = ±20%, K = ±10%, and J = ±5% |
| Dissipation factor | C≤1.0uF DF≤0.8% C>1.0uF DF≤1.0% (at 20°C, 1KHz) |
| Voltage-proof | 1.6*UR Unit:VDC (5s at 20°C) |
| Insulation resistance | C≤0.33µF, IR≥15000MΩ, C>0.33µF, IR*C≥3,000s (1 minute at 20°C and RH≤65%) |
| Endurance | 1000 hours with 125% of rated voltage at 85°C. After the test: ΔC/C ≤8%; ΔDF ≤0.30%(C>1uF);ΔDF ≤0.50%(C≤1uF); IR ≥0.5% of the specified value (20°C, 1kHz) |
The versatility of the 2.2uF CL23 Polyester Film Capacitor makes it a fundamental component in a wide array of electronic devices:
1.Power Supplies: Electronic devices often require stable and filtered power supplies. The 2.2uF CL23 capacitor contributes to the smooth operation of power supplies, ensuring a constant and reliable source of energy for connected components.
2.Audio Amplifiers: In audio systems, precise signal coupling is essential for delivering high-quality sound. The 2.2uF CL23 capacitor facilitates the coupling of audio signals in amplifiers, contributing to clear and accurate audio reproduction.
3.Timing Circuits: Electronic devices with timing functions, such as clocks and timers, benefit from the accuracy provided by the 2.2uF CL23 capacitor. It aids in maintaining consistent timing intervals, crucial in applications where precision is paramount.
4.LED Drivers: LED lighting systems often require stable power sources. The 2.2uF CL23 capacitor, with its voltage rating and capacitance, supports LED drivers by filtering out fluctuations in the power supply.
The Evolution of Capacitor Technology:
To appreciate the significance of the 2.2uF CL23 Polyester Film Capacitor, it’s essential to consider the evolution of capacitor technology:
1.Early Capacitors: The earliest capacitors were bulky and often made of materials like glass, oil, or paper. These capacitors had limitations in terms of size, performance, and reliability.
2.Introduction of Film Capacitors: The development of film capacitors marked a significant advancement in capacitor technology. Film capacitors, including those with metallized polyester film, offered improved performance, stability, and versatility.
3.Advancements in Dielectric Materials: Ongoing research has led to advancements in dielectric materials, contributing to the development of capacitors with higher capacitance, lower losses, and enhanced efficiency.
4.Miniaturization and Integration: The demand for smaller and more compact electronic devices has driven the miniaturization of capacitors. Surface-mount technology (SMT) has enabled the integration of capacitors into densely packed electronic circuits.
Challenges and Innovations in Capacitor Technology:
While capacitor technology has come a long way, there are ongoing challenges and innovations within the field:
1.Miniaturization Challenges: As electronic devices become smaller and more complex, the challenge lies in developing capacitors that maintain performance while being compact enough to fit within limited spaces.
2.Higher Capacitance Requirements: Emerging technologies often demand capacitors with higher capacitance values. Researchers are exploring new materials and designs to meet the increasing capacitance requirements of modern electronic devices.
3.Temperature Stability: Capacitors must maintain stable performance across a range of temperatures. Innovations focus on developing capacitors that can withstand extreme temperature conditions without compromising functionality.
4.Green Capacitors: The push for sustainability in electronics has led to the development of environmentally friendly or “green” capacitors. Manufacturers are exploring eco-friendly materials and manufacturing processes to reduce the environmental impact of capacitors.
