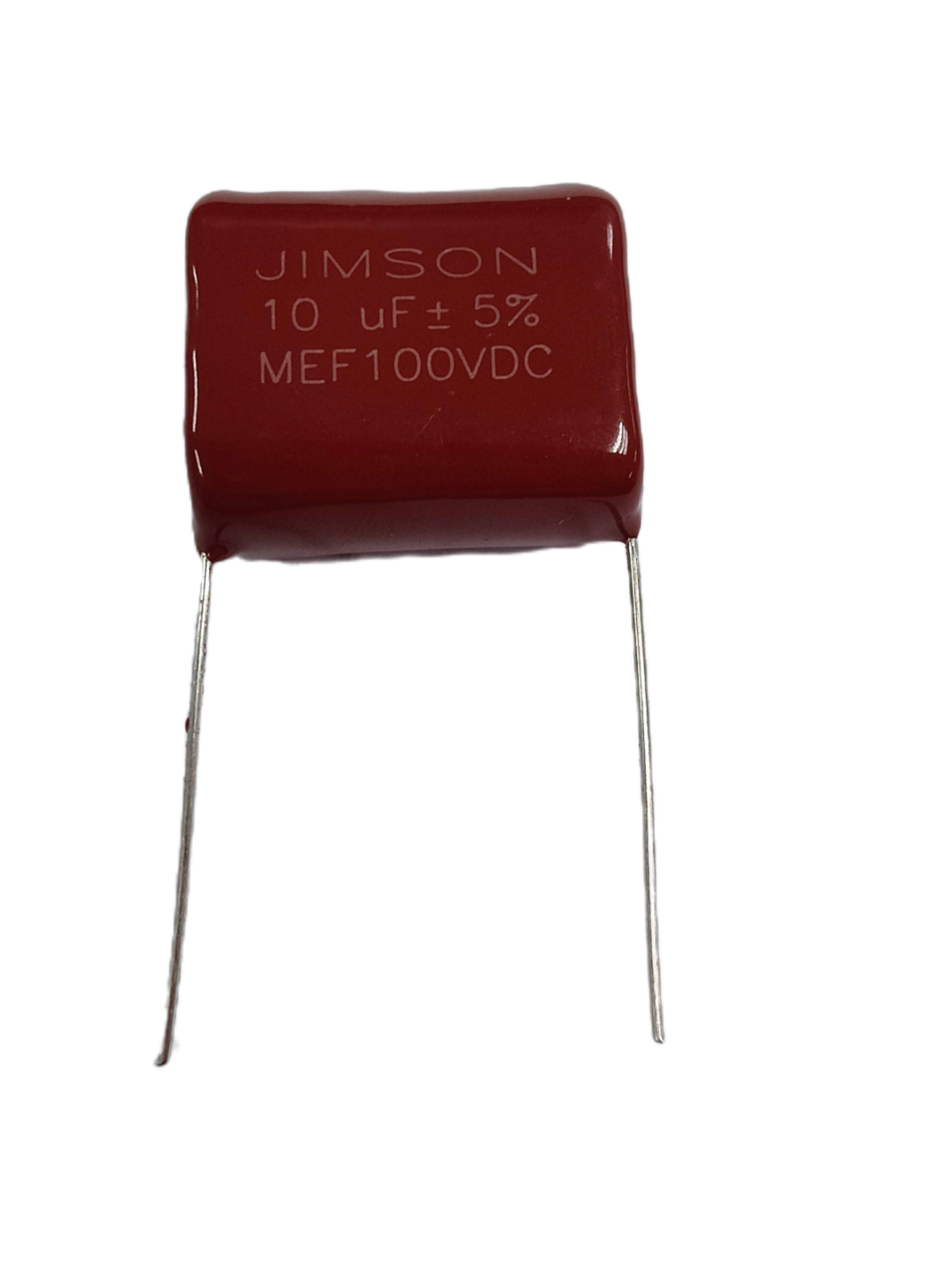

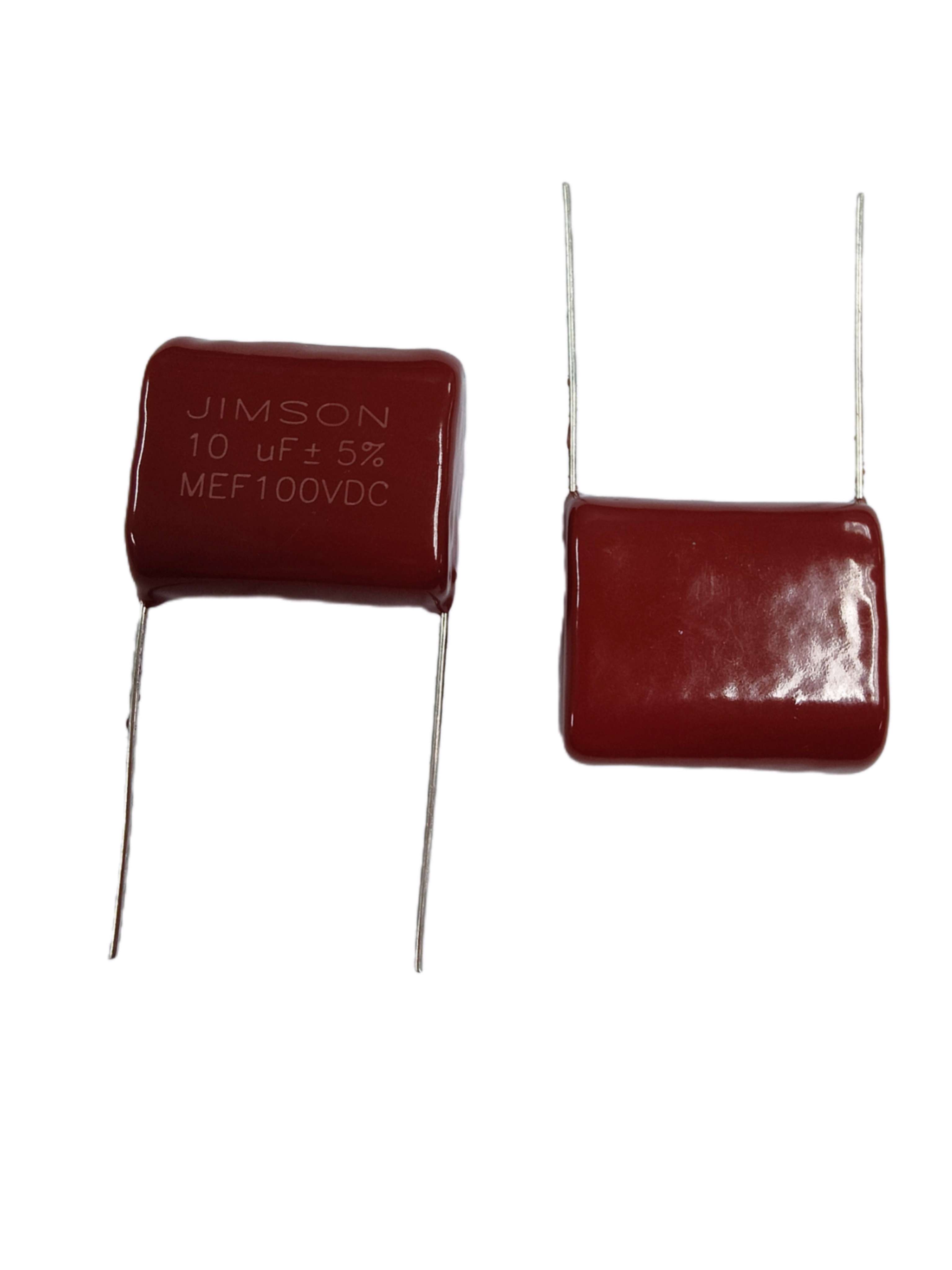

10.0uF Metallized Polymer Capacitor

Metallized polyester capacitors are an essential component in electronic circuits. Metallized polyester capacitors have some properties, and they can make them ideal for application in electronic circuits. Metallized polyester capacitors have a high delectric strength,  they can withstand high voltages. They not only have a low dissipation factor, but also have a low ESR (Equivalent Series Resistance), which means they have a low internal resistance and can deliver high currents.

Product Description

Construction of Metallized Polyester Capacitors:

Metallized polyester capacitors are constructed using a thin layer of polyester film that is coated with a metal layer on both sides. The metal layer is usually made of aluminum, zinc, or a combination of both. The metal layer is then connected to the capacitor’s electrodes, which are made of a thin layer of metal foil. The electrodes are then connected to the capacitor’s leads, which are usually made of tinned copper wire.

Feature

1. Metallized polyester film structure

2. Low high frequency loss

3. Low internal temperature rise

Application

1.Application in power electronic circuit. Film capacitors are used mainly for buffering and clamping of power currents, resonant bypassing and suppression of electromagnetic interference from the power supply.

When the film capacitor is used as a bypass, it mainly serves to reduce the impedance of DC bus and absorb the ripple current from the load, so as to effectively suppress the fluctuation of DC bus voltage due to the sudden change of load.

3. When the device is used for resonant converter, it can achieve the resonant function together with the inductor.

Specifications

Dielectric: Polyester film

Electrodes: Vacuum evaporated metal

Coating: Epoxy resin coating

Leads: Radial leads of tinned wire

Reference Standard: IEC 384-2 grade 1; SJ/T 10877-1996

Climatic Catalogue: 40/85/21(From 85°C up to 105°C with derating volatge 1.25%/°C )

Capacitance Versus: 0.01uF-25uF/100VDC;  0.01uF-18uF/250VDC

Rated Voltage(UR):  0.01uF-6.8uF/400VDC;  0.01uF-2.2uF/630VDC;

Metallized Polyester Film Capacitor

Metallized polyester capacitors are an essential component in electronic circuits. Metallized polyester capacitors have some properties, and they can make them ideal for application in electronic circuits. Metallized polyester capacitors have a high delectric strength,  they can withstand high voltages. They not only have a low dissipation factor, but also have a low ESR (Equivalent Series Resistance), which means they have a low internal resistance and can deliver high currents.

FAQ

1. Can you customize for clients?

   Yes, we can customize as your need, we have R&D department, our designers can make design for you    and our technicians make prototype.

2. What is the delivery time for mass production?

    About 10-15 days.

3. Can we be your agent?

   Yes, welcome to cooperation with this.
