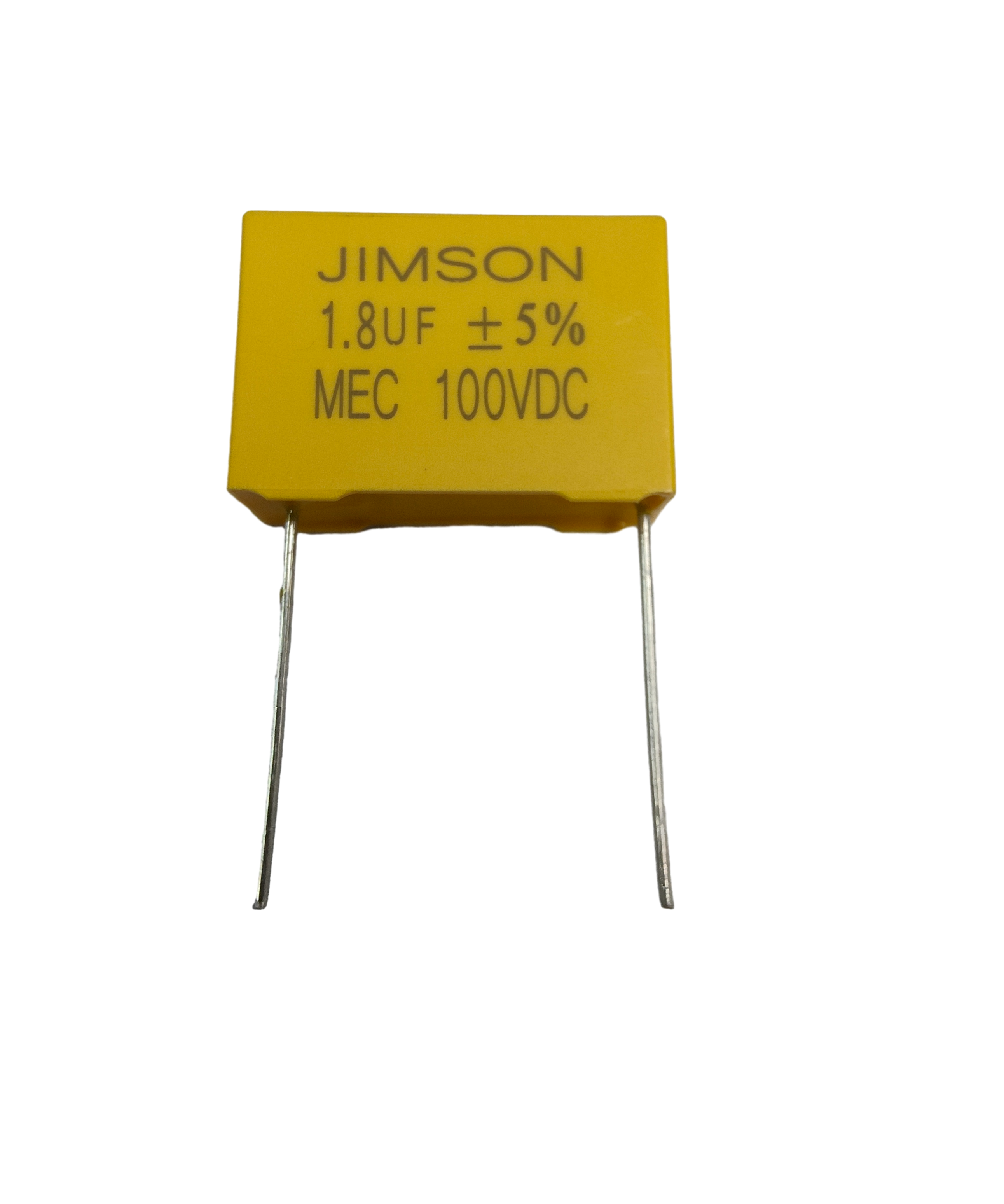

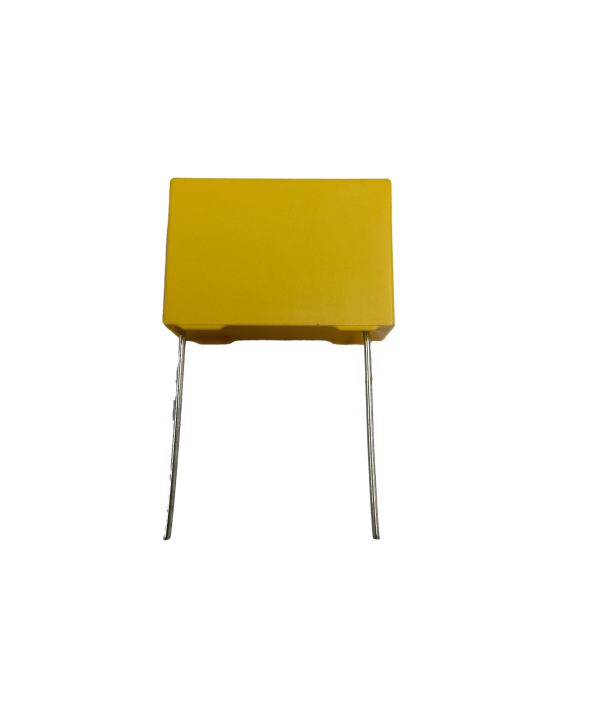

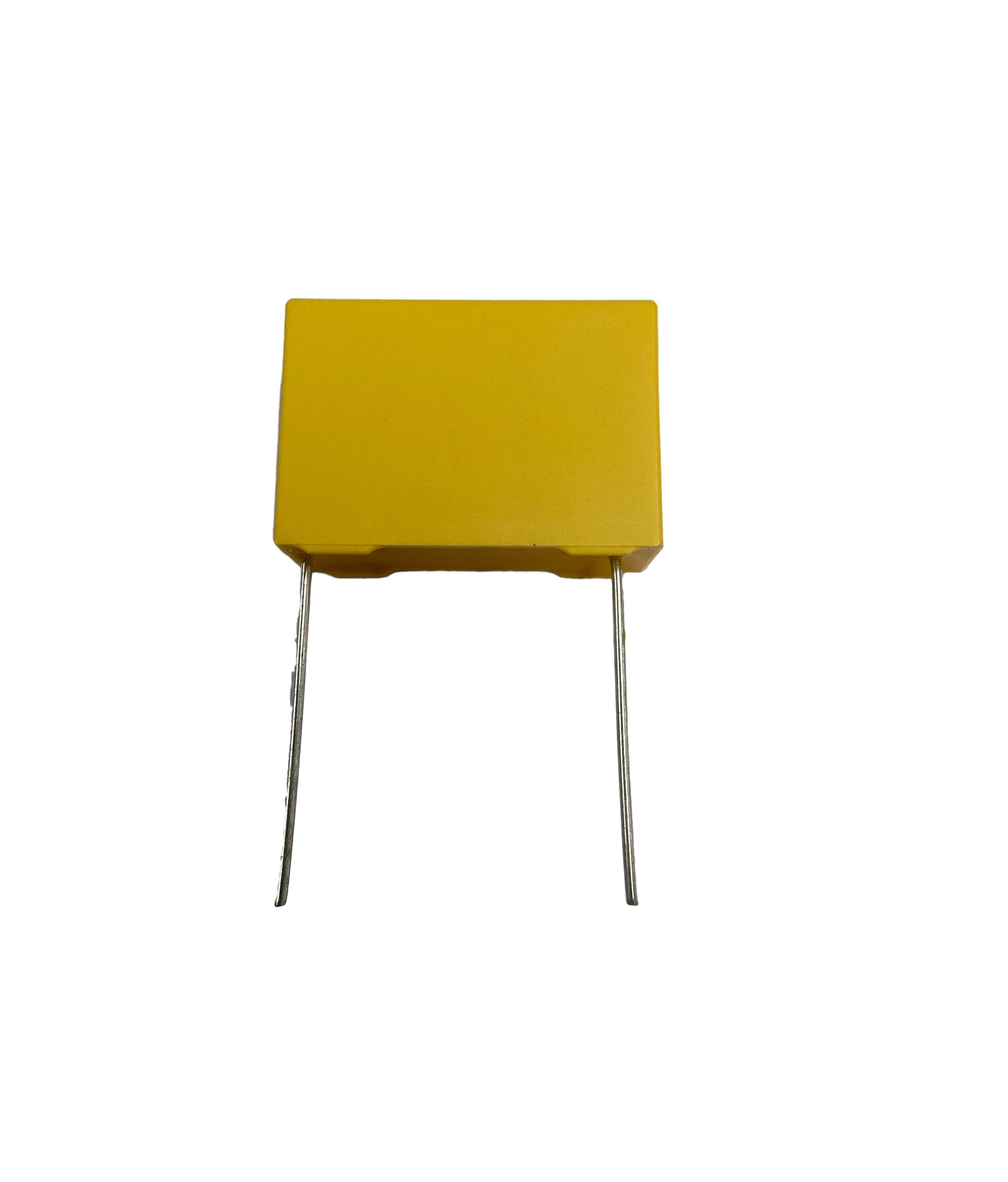

1.8uF 100V Plastic Case Polyester Film Capacitor

The 1.8uF 100V Plastic Case Polyester Film Capacitor emerges as a cornerstone in the intricate world of electronic components. Its precise capacitance, voltage rating, and construction with polyester film make it a reliable and versatile choice for a myriad of electronic applications. As we navigate the ever-evolving landscape of technology, capacitors, with their diverse applications and nuanced engineering, remain fundamental to the seamless functioning of our electronic devices. The 1.8uF capacitor, encased in plastic and fortified with polyester film, exemplifies the meticulous craftsmanship that underlies the gadgets we often take for granted. It serves as a testament to the precision and innovation that define the realm of electronic components, silently empowering the devices that shape our modern way of life.

Categories Metallized polyester capacitors, Suppression capacitors Tags Metallized Polyester Capacitor, Metallized Polyester Film Capacitor, Metallized Polyester Film Capacitor Manufacturers

Product Description

1.8uF 100V Plastic Case Polyester Film Capacitor Specifications:

Dielectric	Polyester film
Electrodes	Vacuum evaporated metal
Coating	Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0
Leads	Radial leads of tinned wire
Reference standard	IEC 384-2 grade 1; SJ/T 10873-1996
Climatic catalogue	40/100/21(From 85°C up to 105°C with derating voltage 1.25%/°C)
Capacitance versus rated voltage (UR)	0.001μF-6.8μF50/100VDC 0.001μF-6.8μF/250VDC 0.001μF-2.2uF/400VDC 0.001uF-1.5uF/630VDC
Capacitance tolerance	M = ±20%, K = ±10%, and J = ±5%
Dissipation factor	C≤1.0uF DF≤0.8% C>1.0uF DF≤1.0% (at 20°C, 1KHz)
Voltage-proof	1.6*UR Unit:VDC (5s at 20°C)
Insulation resistance	C≤0.33µF, IR≥15000MΩ, C>0.33µF, IR*C≥3,000s (1 minute at 20°C and RH≤65%)
Endurance	1000 hours with 125% of rated voltage at 85°C. After the test: ΔC/C ≤8%; ΔDF ≤0.30%(C>1uF);ΔDF ≤0.50%(C≤1uF); IR ≥0.5% of the specified value (20°C, 1kHz)

In the intricate landscape of electronic components, the 1.8uF 100V Plastic Case Polyester Film Capacitor stands as a beacon of precision, quietly contributing to the reliability and functionality of countless electronic devices.The 1.8uF 100V plastic case polyester film capacitor is encased in a plastic housing, providing insulation, protection, and enhancing the overall durability of the component.The capacitor’s dielectric material is made of polyester film, a type of plastic known for its high dielectric strength and stability. The voltage rating denotes the maximum voltage the capacitor can handle without risking failure. A 100V rating ensures the capacitor can operate safely within the voltage parameters of electronic circuits.

There are some benifits of 1.8uF 100V plastic case polyester film capacitor are as below:

1.Filtering and Decoupling:

Capacitors are commonly used to filter out unwanted noise and stabilize voltage in electronic circuits. The 1.8uF capacitor excels in filtering applications, ensuring a clean and stable power supply to sensitive components.

2.Timing and Frequency Control:

Capacitors, based on their capacitance values, influence the timing and frequency of electronic circuits. In applications such as oscillators and timers, the 1.8uF capacitor aids in precise control, contributing to the accuracy of timing-based functions.

3.Coupling Capacitor:

In amplifier circuits, coupling capacitors allow the passage of AC signals while blocking DC components. The 1.8uF capacitor, with its suitable capacitance, facilitates effective signal coupling in audio and amplifier applications.

4.Energy Storage:

Capacitors store electrical energy and release it when needed. The 1.8uF capacitor serves as a reliable energy storage device, supplying quick bursts of energy to meet the demands of various electronic components.

Applications Beyond Electronic Circuits:

While the 1.8uF 100V Plastic Case Polyester Film Capacitor finds its primary application in electronic circuits, its versatility extends to various other devices and industries:

1.Audio Equipment:

Capacitors with similar specifications are crucial in audio equipment, contributing to signal processing, filtering, and power supply stability. The 1.8uF capacitor’s role in coupling ensures clear and accurate audio reproduction.

2.Power Supplies:

Electronic devices often require stable and filtered power supplies. The 1.8uF capacitor contributes to the smooth operation of power supplies, ensuring a constant and reliable source of energy for connected components.

3.Motor Starters:

Capacitors are used in motor starters to provide the initial surge of energy needed to start the rotation of motors. The 1.8uF capacitor’s specifications make it suitable for various motor-driven applications.

4.Lighting Systems:

Capacitors play a role in lighting systems, where they contribute to power factor correction and stabilization of voltage. The 1.8uF capacitor’s versatility makes it applicable in both traditional and LED lighting setups.
