MEA10UFJ250V Capacitor: A Capable Assistant in Circuit Protection

In modern electronic circuit systems, capacitors, as a fundamental and crucial electronic component, directly relate their performance stability and reliability to the safety and stable operation of the entire circuit. Among the many capacitor specifications, the MEA10UFJ250V capacitor leverages its unique performance advantages to play a significant role in the field of circuit protection, becoming a capable assistant in safeguarding circuits.

II. Basic Characteristics of MEA10UFJ250V Capacitor

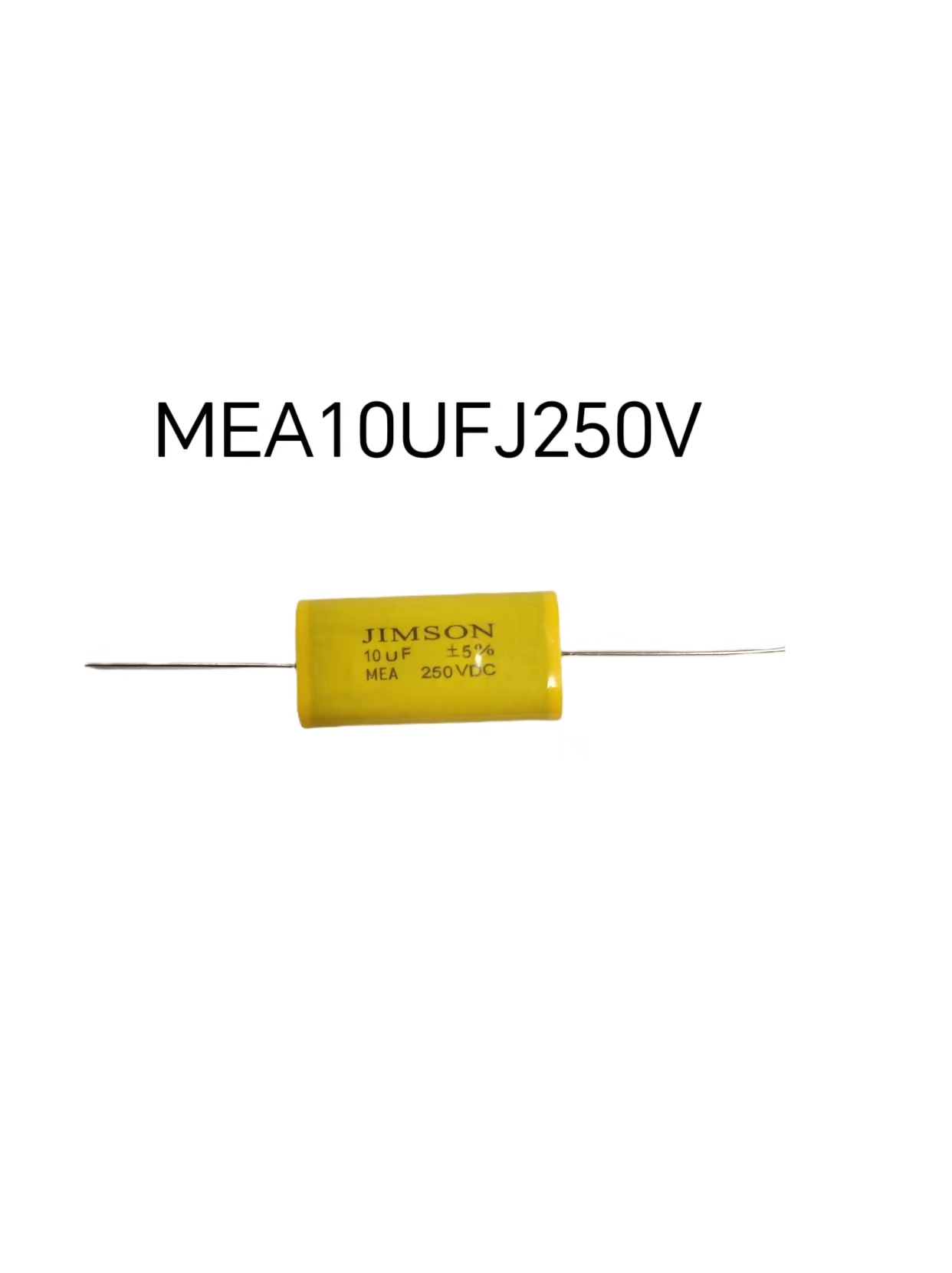

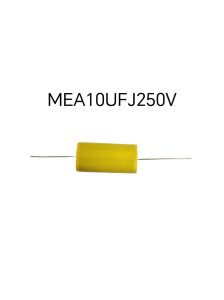

The MEA10UFJ250V capacitor is a capacitor device with high voltage resistance and large capacitance characteristics. “MEA” may represent a specific brand or model identifier, “10UF” indicates its capacitance of 10 microfarads, “J” stands for the error grade, and “250V” indicates its rated voltage of 250 volts. This type of capacitor typically uses a metallized film as the dielectric, with zinc-aluminum alloy attached to the film surface to form electrodes through vacuum deposition technology, offering advantages such as high voltage resistance, high insulation resistance, and good impedance frequency characteristics.

Firstly, the high voltage resistance of the MEA10UFJ250V capacitor is one of its most notable features. During circuit operation, overvoltage or spike voltages may occur for various reasons, which, if not controlled, can damage other components in the circuit. The MEA10UFJ250V capacitor has a rated voltage of up to 250 volts, effectively absorbing and limiting these harmful voltages to protect the circuit from damage.

Secondly, the large capacitance characteristic of the MEA10UFJ250V capacitor also plays a significant role in circuit protection. Large capacitance means the capacitor can store more charge and energy, which can be quickly released when needed. This feature makes the MEA10UFJ250V capacitor crucial in power filtering and decoupling circuits. When there is noise and ripple in the power supply, the capacitor can smooth these fluctuations, providing a stable power output and protecting downstream circuits from damage.

Additionally, the MEA10UFJ250V capacitor also has advantages such as good impedance frequency characteristics and high insulation resistance. These characteristics enable the capacitor to perform excellently in high-frequency circuits and circuits requiring high-precision signals.

III. Application of MEA10UFJ250V Capacitor in Circuit Protection

Energy Storage and Smoothing In circuits, the MEA10UFJ250V capacitor can store charge and energy, releasing them when needed. This characteristic makes it play an important role in power filtering and decoupling circuits. When there is noise and ripple in the power supply, the capacitor can smooth these fluctuations, providing a stable power output and protecting downstream circuits from damage. At the same time, in circuits requiring short-term energy storage, such as flash lights and motor starts, the MEA10UFJ250V capacitor can also provide sufficient energy support.

Overvoltage and Spike Voltage Absorption During circuit operation, overvoltage or spike voltages may occur for various reasons. If not controlled, these voltages can damage other components in the circuit. The MEA10UFJ250V capacitor has a high voltage resistance capability and can effectively absorb these harmful voltages, protecting the circuit from damage. Especially in circuits with high requirements for voltage stability, such as precision measurement and control systems, the overvoltage absorption capability of the MEA10UFJ250V capacitor is particularly important.

Signal Filtering and Decoupling In electronic circuits, signal filtering and decoupling are very important steps. The MEA10UFJ250V capacitor can be used as a filter to remove high-frequency noise and interference from signals, enhancing the purity and stability of the signals. At the same time, it can also be used as a decoupling capacitor to isolate interference between front and rear stages of the circuit, ensuring the normal operation of the circuit. In some circuits requiring high-precision signals, such as audio equipment and communication systems, the signal filtering and decoupling capabilities of the MEA10UFJ250V capacitor play a key role.

Temperature Compensation and Stability Some electronic components have poor temperature adaptability, which can lead to circuit instability. The MEA10UFJ250V capacitor can improve circuit stability through its temperature compensation characteristics. When the temperature changes, the capacitance value of the capacitor will undergo slight changes, offsetting the performance changes of other components caused by temperature changes, maintaining the stable operation of the circuit. This characteristic is particularly important in circuits that require high-precision control and stability requirements.

IV. Selection and Layout of MEA10UFJ250V Capacitors

When it comes to the selection and layout of MEA10UFJ250V capacitors in circuit design, several critical factors must be considered to ensure optimal performance and reliability.

Selection Criteria:

1. Capacitance Value: Choose the capacitance value that matches the energy storage and filtering requirements of your circuit.
2. Voltage Rating: Ensure that the capacitor’s voltage rating is suitable for the peak voltage expected in the circuit to avoid breakdown.
3. Temperature Range: Consider the operating temperature range of the capacitor to guarantee performance across all intended environmental conditions.
4. Error Tolerance: The ‘J’ grading indicates a tolerance class; select based on the precision required for your application.
5. Physical Size: Opt for a capacitor size that fits within the available space in your circuit design without compromising performance.
6. Mounting Style: Decide between through-hole and surface-mount technologies based on your PCB design and assembly processes.

Layout Considerations:

1. Placement: Position capacitors close to the power pins of the components they are decoupling to minimize trace impedance and noise.
2. Orientation: Ensure proper orientation to facilitate heat dissipation and avoid interference with other components.
3. Routing: Keep the connections between capacitors and their associated components as short and direct as possible to reduce inductance and resistance.
4. Grounding: Use a robust and clear grounding path to minimize ground loop issues.
5. Avoidance of Noise-Sensitive Areas: Keep capacitors away from high-noise or noise-sensitive areas of the circuit to prevent interference.
6. Polarization for Electrolytic Capacitors: If applicable, ensure correct polarization to avoid reverse-biasing, which is not a concern for MEA10UFJ250V as it is a non-polarized type.
7. Heat Management: For applications where capacitors may generate significant heat, incorporate adequate heat management solutions such as heat sinks or proper ventilation.

By carefully selecting and strategically placing MEA10UFJ250V capacitors, you can maximize their effectiveness in your circuit, leading to improved stability, noise reduction, and overall system performance.
