MKP224K275VAC: The Efficient Choice For Power Filtering

In the operational environment of modern electronic devices, the role of power filters is crucial. They act like “purifiers” for electronic devices, effectively removing high-frequency noise and ripple from the power supply, providing stable and clean DC power. Among various power filters, the MKP224K275VAC stands out due to its excellent filtering performance and efficient working characteristics, making it a leader in the field of power filtering.

I. Overview of MKP224K275VAC Capacitors

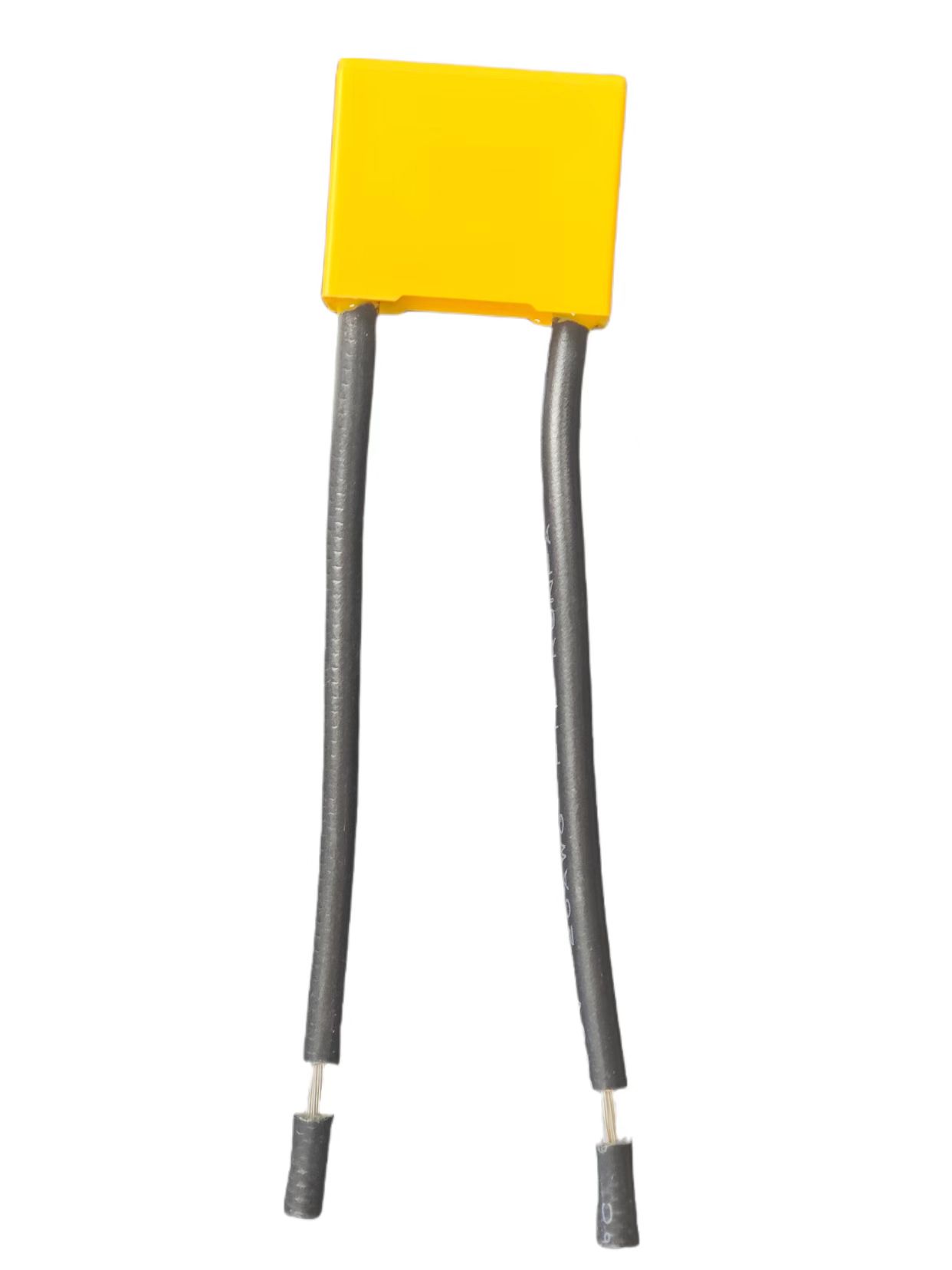

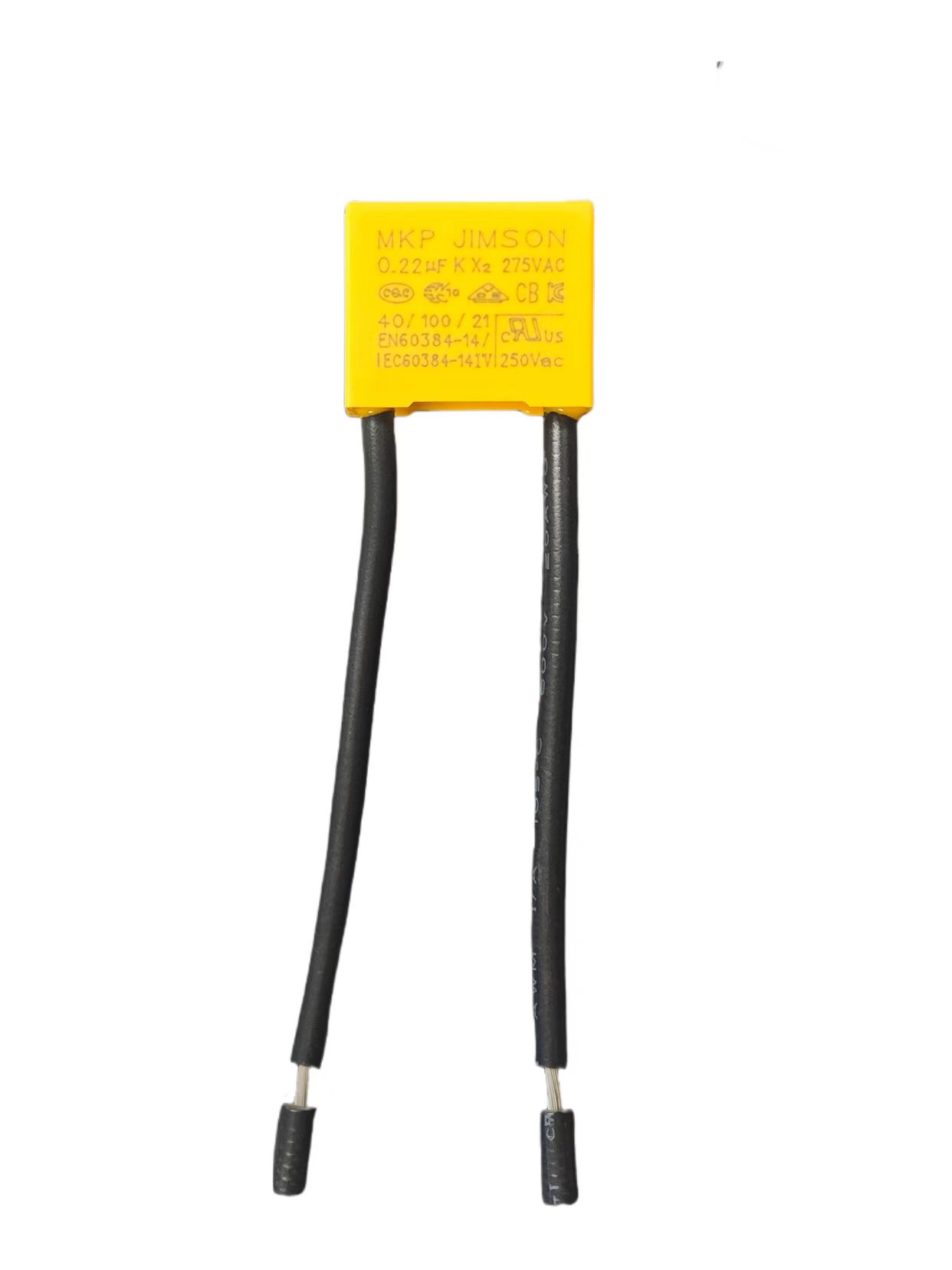

The MKP224K275VAC is a metallized polypropylene film capacitor. The “MKP” in its name represents the metallized polypropylene film dielectric, “224K” indicates the nominal capacitance (224KnF, i.e., 0.22μF), and “275VAC” refers to its rated voltage of 275 volts AC. This capacitor is renowned for its excellent high-frequency characteristics, high-temperature tolerance, and self-healing properties, and is widely used in power filtering, signal coupling, and high-frequency resonance applications.

II. Filtering Principle of MKP224K275VAC

The main purpose of power filtering is to remove high-frequency noise and ripple from the power supply, ensuring that electronic devices receive stable and clean DC power. The MKP224K275VAC capacitor plays a crucial role in power filtering. Its filtering principle is primarily based on the capacitor’s energy storage and discharge characteristics.

When AC power is converted to DC power through a rectifier circuit, it generates a significant amount of high-frequency noise and ripple. If these are not filtered, they can severely affect the stable operation of electronic devices. The MKP224K275VAC capacitor uses its high-frequency characteristics to bypass high-frequency noise to the ground, thereby purifying the DC power. Additionally, when the power supply voltage increases, the capacitor charges; when the voltage decreases, it discharges, thus smoothing out fluctuations in the power supply voltage and enhancing its stability.

III. Efficient Performance of MKP224K275VAC

The MKP224K275VAC capacitor stands out in the field of power filtering mainly due to its efficient performance. Specifically, its efficient performance is reflected in the following aspects:

Excellent High-Frequency Characteristics:

MKP capacitors are known for their excellent high-frequency characteristics, maintaining a stable capacitance value and low loss in high-frequency circuits. This makes the MKP224K275VAC particularly effective in removing high-frequency noise from the power supply, thereby effectively purifying the DC power.

Good Temperature Stability:

The working temperature range of MKP capacitors is typically wide (-40℃ to 105℃), allowing them to maintain stable performance under different environmental temperatures. This means that the MKP224K275VAC can provide reliable filtering effects under various working conditions, ensuring the stable operation of electronic devices.

Good Self-Healing Properties:

Metallized polypropylene film capacitors have self-healing properties. When a local breakdown occurs inside the capacitor, the metallized layer around the breakdown point will quickly evaporate, forming an insulating layer, thereby preventing the expansion of the breakdown point. This self-healing characteristic enhances the reliability and service life of the capacitor, making the MKP224K275VAC more reliable in power filtering.

Low Loss:

MKP capacitors typically have low loss, which means that energy loss can be reduced during the filtering process, lowering the device’s energy consumption. This is particularly important for electronic devices that need to operate for extended periods.

IV. Widespread Applications of MKP224K275VAC in Power Filtering

Thanks to its excellent filtering performance and efficient working characteristics, the MKP224K275VAC capacitor has been widely used in the field of power filtering. Here are some specific application scenarios:

Switching Power Supplies:

In switching power supplies, the MKP224K275VAC capacitor is used as an output filter capacitor to remove high-frequency noise and ripple generated during switching, improving the purity and stability of the output power. This is crucial for ensuring the stable operation of switching power supplies.

DC Voltage Regulators:

In DC voltage regulators, the MKP224K275VAC capacitor is used as a filter capacitor to smooth out fluctuations in the power supply voltage, enhancing the stability of the power supply. It can also serve as a protective element to prevent transient high voltages in the power supply from damaging electronic devices.

Inverters:

In inverters, the MKP224K275VAC capacitor is used as input and output filter capacitors to remove high-frequency noise and ripple generated by the inverter, improving the efficiency and purity of the output power. This is significant for ensuring the stable operation of the inverter and increasing its efficiency.

LED Driver Power Supplies:

In LED driver power supplies, the MKP224K275VAC capacitor is used as a filter capacitor to remove high-frequency noise and ripple from the power supply, protecting LED chips from damage and improving the brightness and stability of LED lights. This is crucial for ensuring the normal operation of LED lights and extending their service life.

V. Advantages and Challenges of MKP224K275VAC in Power Filtering

The MKP224K275VAC capacitor has demonstrated many advantages in power filtering, such as excellent high-frequency characteristics, good temperature stability, good self-healing properties, and low loss. These advantages give the MKP224K275VAC a broad application prospect in the field of power filtering. However, in practical applications, the MKP224K275VAC also faces some challenges. For example, with the development of the miniaturization and integration trend of electronic devices, higher requirements are placed on the size and weight of power filters. Additionally, as the power of electronic devices continues to increase, higher requirements are placed on the voltage and current tolerance of power filters. Therefore, the MKP224K275VAC capacitor needs to be continuously optimized and improved to meet the high requirements of electronic devices for power filters.
