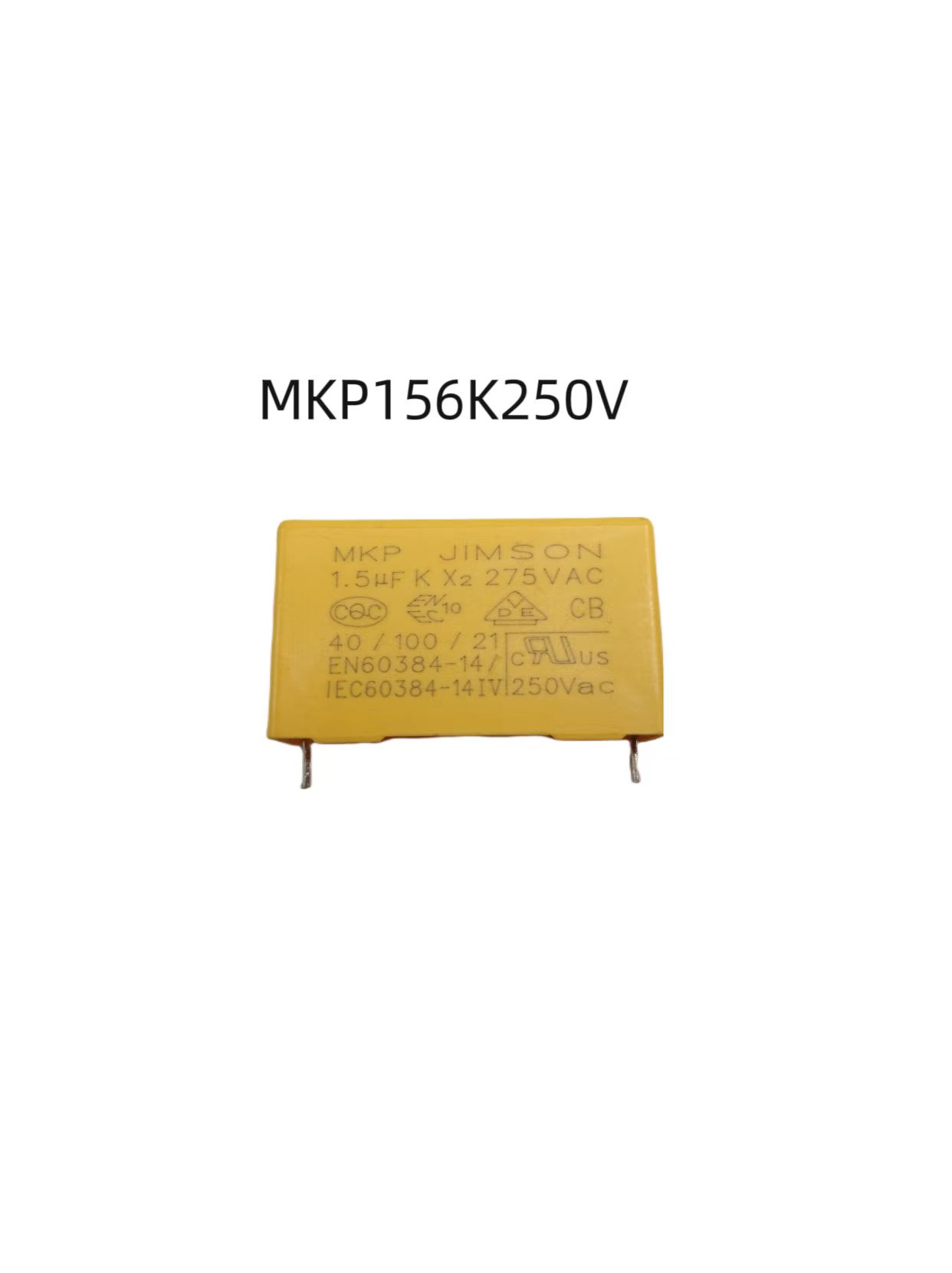

MKP156K250V Power Supply Filter Capacitor: Professional Analysis for Empowering Pure Power

In the vast universe of electronic technology, the power supply filter capacitor stands as a bright star, providing solid assurance for the stable operation and performance optimization of electronic devices with its unique functional characteristics and extensive application fields. The MKP156K250V, as a member of metallized polypropylene film capacitors, has emerged from numerous power supply designs for its excellent power filtering capabilities, becoming an important force in empowering pure power sources.

I. Basic Concept of Power Supply Filter Capacitors Power supply filter capacitors, also known as capacitor filters, are capacitors that restrict frequency on power or signal lines.

Composed of one or more capacitors, they can filter within a specific frequency range, effectively suppressing high-frequency noise and interference, providing a stable and pure power environment for electronic devices. In electronic circuits, power supply filter capacitors play a crucial role, not only filtering out high-frequency noise and interference in the power supply signal but also storing charge energy to provide necessary energy support during transient load changes, ensuring the normal operation of the circuit.

II. Characteristic Analysis of MKP156K250V The MKP156K250V, as a high-performance metallized polypropylene film capacitor, mainly exhibits the following characteristics:

Outstanding High-Frequency Characteristics: MKP capacitors are known for their excellent high-frequency performance, maintaining stable performance in high-frequency circuits. The MKP156K250V, as a top performer, can easily deal with high-frequency noise and interference, providing a cleaner power environment for electronic devices.

Strong Voltage Resistance: This capacitor has a rated voltage as high as 250V, meeting the needs of various high-voltage application scenarios. Its excellent voltage resistance ensures stability and reliability under harsh working conditions.

Strong Self-Recovery Ability: MKP capacitors have good self-healing properties, which can repair damage caused by over-voltage, over-current, and other reasons to some extent, extending service life.

Good Temperature Stability: The metallized polypropylene film material has good temperature stability, ensuring that the MKP156K250V maintains a stable capacitance value and performance in different temperature environments.

Environmental Protection and Energy Saving: MKP capacitors comply with environmental requirements, are free of harmful substances, and can effectively reduce energy consumption and improve energy utilization efficiency during operation.

III. Application Examples The MKP156K250V, as a power supply filter capacitor, is widely used in various electronic devices, such as televisions, monitors, induction cookers, audio equipment, etc. Here are a few typical application examples:

Televisions and Monitors: In televisions and monitors, the MKP156K250V capacitor is used for S-correction and the generation of horizontal retrace waveforms, ensuring stable and clear images. At the same time, in the power supply filter circuit, it can effectively filter out high-frequency noise and interference in the power supply, providing a pure power environment for image processing circuits.

Induction Cookers: The resonant capacitors in induction cookers usually use MKP capacitors. The MKP156K250V, as one of the options, can ensure the stability and efficiency of the induction cooker under high-frequency working conditions. It can not only absorb the spike voltage and ripple current generated when the IGBT switches, protecting the IGBT from damage, but also optimize the heating performance of the induction cooker and improve the user experience.

Audio Equipment: In audio equipment, the MKP156K250V capacitor is often used as a key component such as a high-burn coupling capacitor and a non-polar axial frequency divider capacitor. It can enhance the purity of the audio signal and the sound quality performance, making the music clearer, more natural, and more touching.IV. Selection Principles When selecting the MKP156K250V as a power supply filter capacitor, the following principles should be followed:

Determine the capacitance value according to actual needs: The selection of the capacitance value should be based on the actual needs of the circuit. An overly small capacitance value may not effectively filter out high-frequency noise, while an overly large capacitance value may lead to a long power supply recovery time or occupy too much space.

Consider the voltage resistance performance: Choose the appropriate voltage resistance value according to the highest voltage in the circuit. The rated voltage of the MKP156K250V is 250V, suitable for various high-voltage application scenarios.

Pay attention to temperature stability: Choose a capacitor with good temperature stability to ensure stable performance in different temperature environments.

Consider self-healing properties: Capacitors with strong self-healing properties can repair damage to some extent, improving service life and reliability.

Focus on environmental protection and energy saving: Choose capacitor products that meet environmental requirements to reduce environmental pollution and energy consumption.
