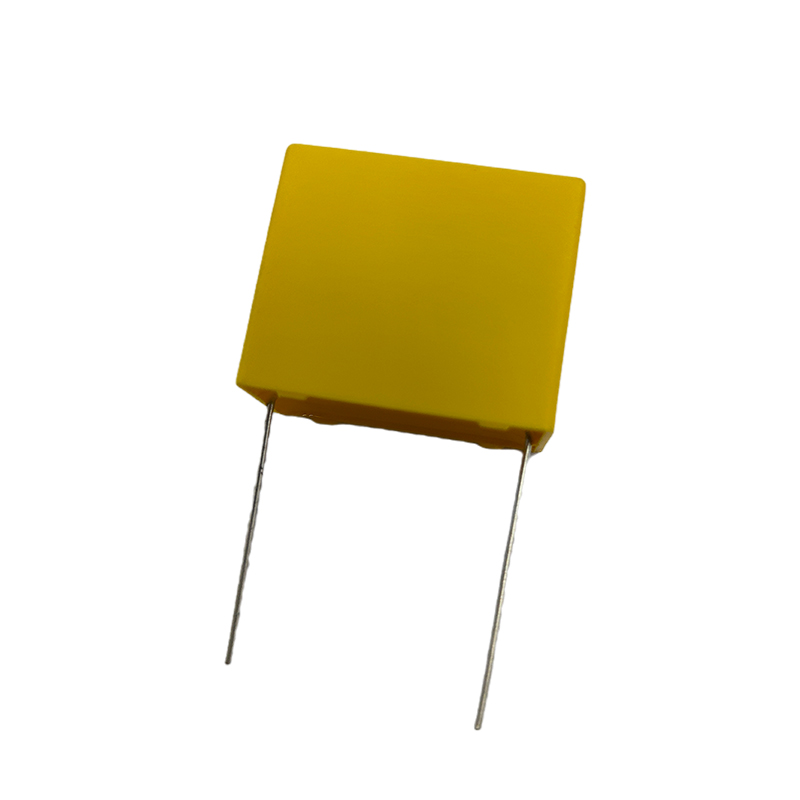

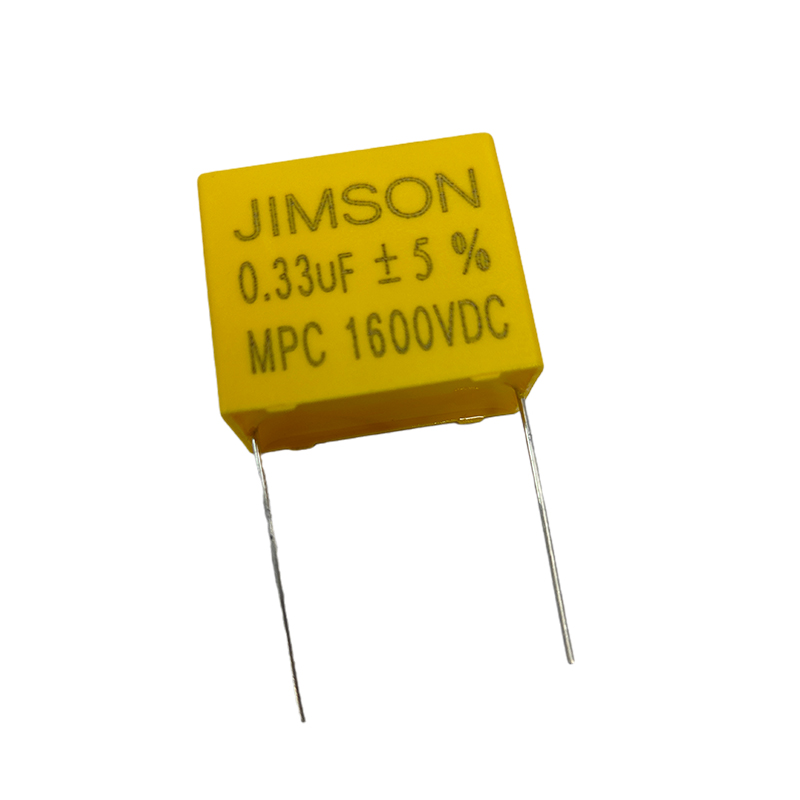

Filter Capacitor In Power Supply

Feature:

1.Non-inductive construction and self-healing
2.High property moisture resistance
3.Super physical and environmental characteristics

Application:

Widely used in high-frequency, DC, AC and pulse circuits High-frequency coupling and decoupling Oscillation circuits TVs, monitors S-calibration circuits

Specifications:

Dielectric: Polypropylene film

Electrodes: Vacuum evaporated metal or Aluminum foil

Coating: Encapsulated in reinforced flame retardant plastic case sealed with epoxy resin meeting the requirement of UL 94V-0

Leads: Axial leads of tinned wire

Reference standard: IEC 384-16; GB 10190-1988

The development of industrial technology, especially the progress of chemical synthesis technology, has led to the improvement of power capacitor manufacturing technology and materials. So far, metalized polypropylene film is the mainstream medium for low-voltage shunt capacitors; polypropylene film (BOPP) is the main solid medium for high-voltage shunt capacitors, and PXE, PEPE, M/DBT and other low-toxic synthetic insulating oils are the main impregnants.
