MPC104J630VDC ：Capacitor In Circuit Filtering

In electronic circuits, filter capacitors, as key passive components, undertake multiple tasks such as filtering out noise, stabilizing voltage, and energy storage. MPC104J630VDC, as a representative of high-performance filter capacitors, is widely used in circuit filtering.

I. Basic Principle and Characteristics of Filter Capacitors

Basic Principle of Filter Capacitors The basic working principle of filter capacitors is to utilize the charging and discharging process of capacitors to filter signals. When the rectified voltage is higher than the capacitor voltage, the capacitor charges; when the rectified voltage is lower than the capacitor voltage, the capacitor discharges. Through this charging and discharging process, capacitors can smooth out pulsating DC voltage, filter out AC components, and output stable DC voltage.

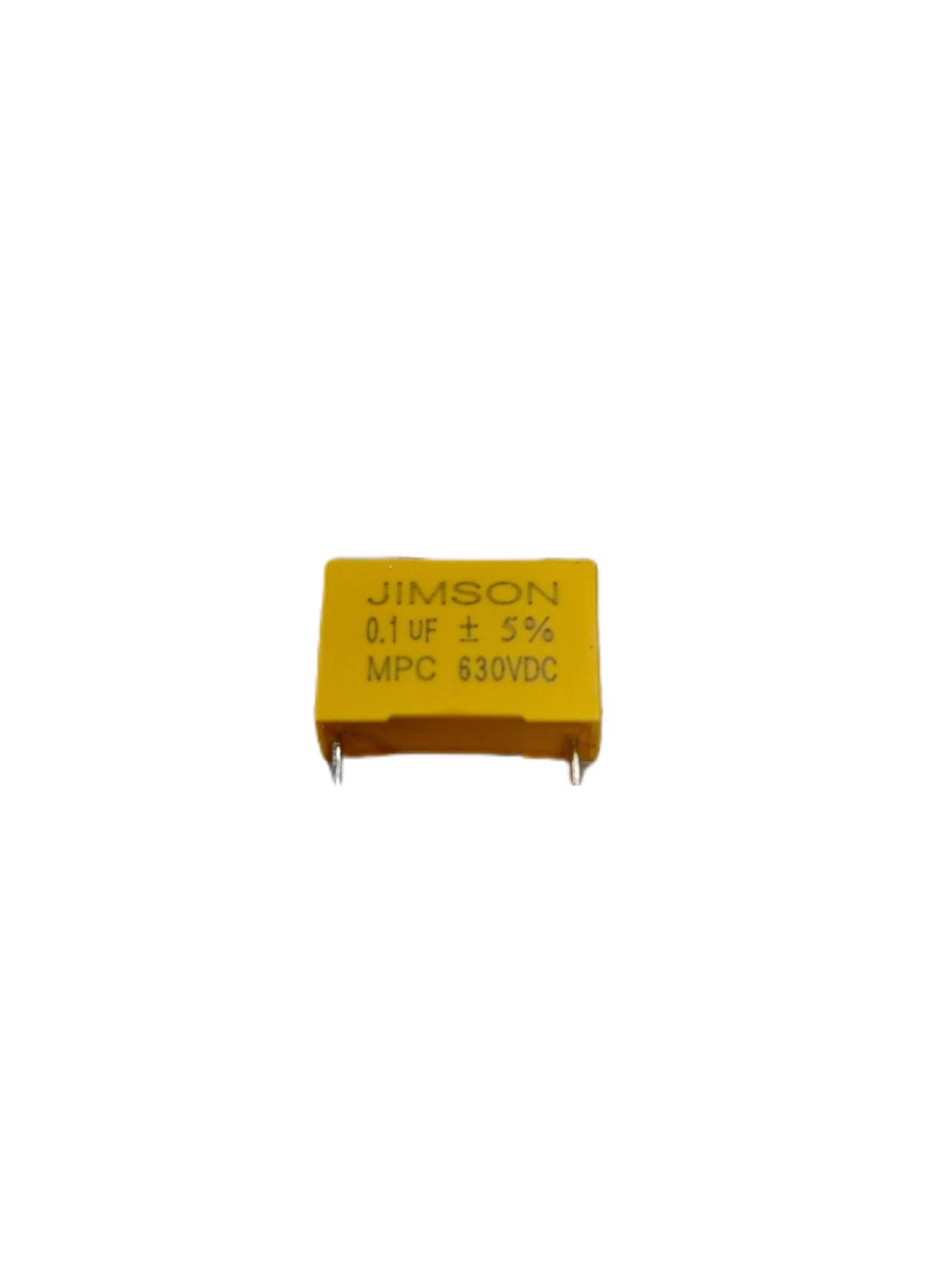

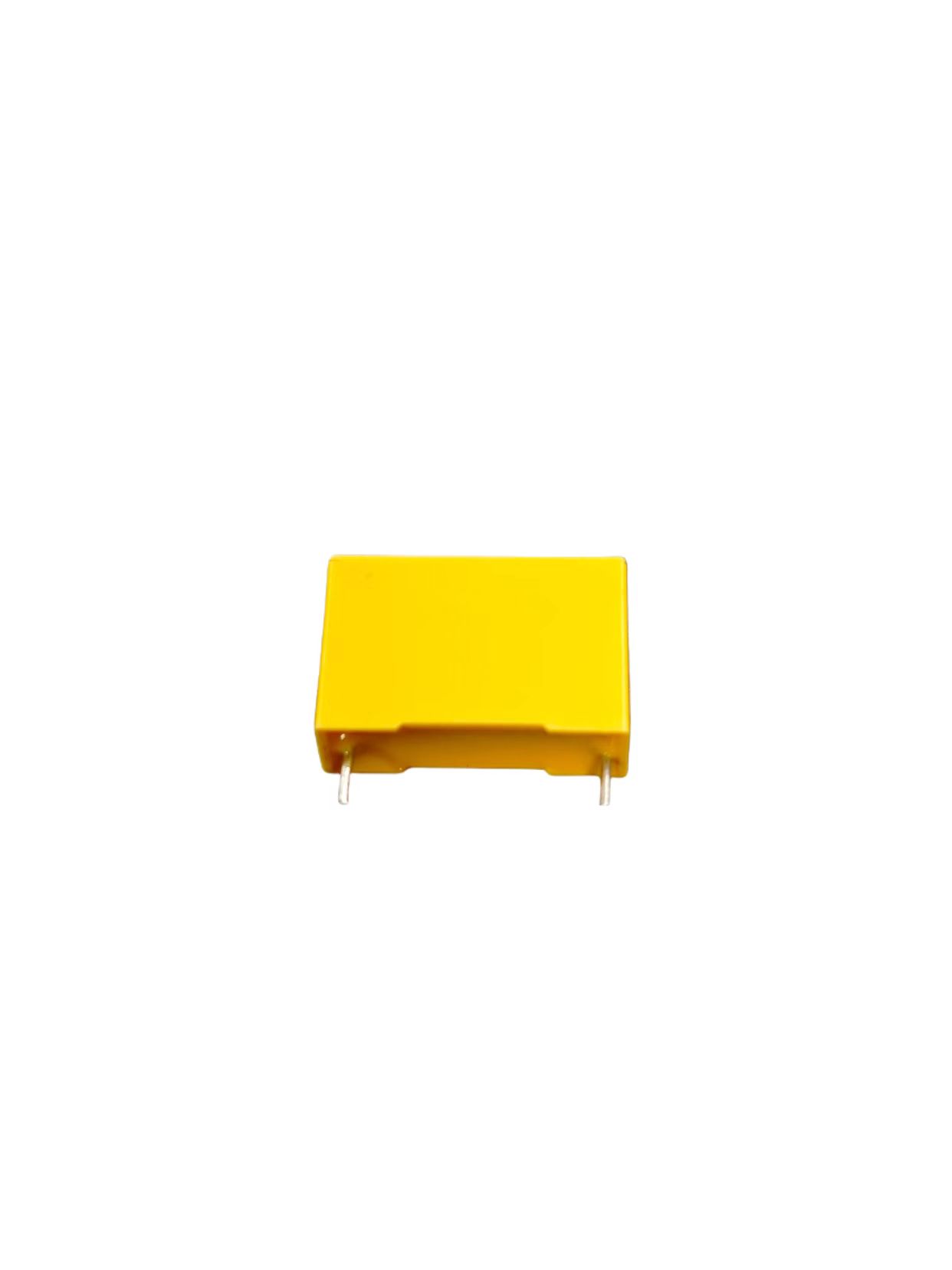

Characteristics of MPC104J630VDC Capacitors

• High Capacitance Value: The 100nF capacitance value makes MPC104J630VDC capacitors have high energy storage capacity and response speed in filter circuits.
• High Rated Voltage: The 630V rated voltage ensures the stability and reliability of the capacitor in high-voltage circuits.
• Low Loss: MPC104J630VDC capacitors, made from high-quality materials, have low loss, which helps to improve the overall efficiency of the circuit.

Long Lifespan: Good design and manufacturing processes make MPC104J630VDC capacitors have a long service life, reducing maintenance costs.

II. Application of MPC104J630VDC Capacitors in Circuit Filtering

DC Power Supply Filtering In DC power supply circuits, MPC104J630VDC capacitors, as filtering components, can filter out the AC components in the pulsating DC voltage output by the rectifier circuit, making the output voltage smoother and more stable. This is significant for protecting electronic components in subsequent circuits and improving the stability and reliability of the circuit.

Audio Amplifier Circuit Filtering In audio amplifier circuits, MPC104J630VDC capacitors are used to filter out high-frequency noise and noise in audio signals, improving the purity and clarity of the audio signal. Through reasonable capacitor selection and layout, the distortion and noise level in the audio amplifier circuit can be significantly reduced, enhancing sound quality.

High-Frequency Circuit Filtering In high-frequency circuits, MPC104J630VDC capacitors, due to their high capacitance value and high rated voltage characteristics, are widely used in high-frequency filtering circuits. In conjunction with other components (such as inductors, resistors, etc.), they can achieve precise filtering and shaping of high-frequency signals, meeting the high requirements for signal quality and stability in high-frequency circuits.

Power Decoupling In power supply circuits, MPC104J630VDC capacitors are also commonly used for power decoupling. By being paralleled between the power supply input and the load, capacitors can absorb and release instantaneous energy fluctuations in the power supply, reducing the impact of power supply noise on the load circuit. This is significant for improving the circuit’s anti-interference ability and stability.

III. Selection and Precautions of MPC104J630VDC Capacitors

Selection of Capacitance Value When selecting MPC104J630VDC capacitors, the capacitance value should be determined based on the specific requirements of the circuit and the requirements for filtering effects. Generally speaking, the larger the capacitance value, the better the filtering effect, but it will also increase the complexity and cost of the circuit. Therefore, the capacitance value should be reasonably chosen to ensure filtering effects.

Selection of Rated Voltage Rated voltage is one of the key factors to consider when selecting capacitors. For MPC104J630VDC capacitors, the rated voltage is 630V, suitable for filtering applications in high-voltage circuits. When selecting capacitors, it should be ensured that the rated voltage of the capacitor is higher than the actual working voltage in the circuit to ensure the stability and reliability of the capacitor.

Layout and Connection In circuit layout, MPC104J630VDC capacitors should be placed as close as possible to the power or signal source that needs filtering to reduce losses and noise interference on the transmission path. At the same time, the connection of the capacitor should ensure good electrical contact and heat dissipation conditions to improve the work efficiency and stability of the capacitor.

Temperature Characteristics The temperature characteristics of the capacitor have an important impact on the performance and stability of the circuit. Therefore, when selecting MPC104J630VDC capacitors, attention should be paid to indicators such as the temperature coefficient and temperature stability to ensure that the capacitor has good performance within the normal operating temperature range.
